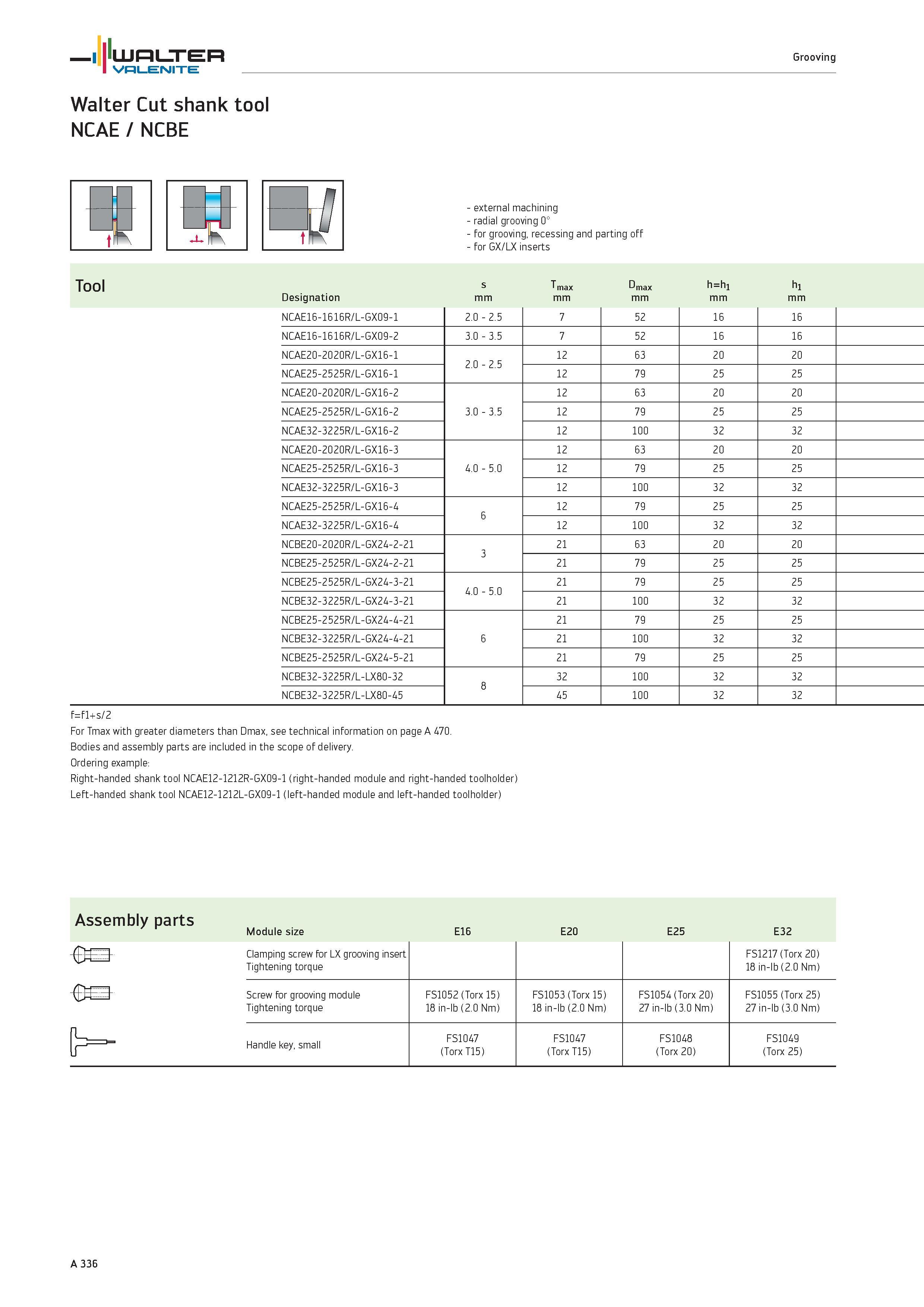

WALTER Valenite Grooving Walter Cut shank tool NCAE / NCBE external machining radial grooving 0° for grooving, recessing and parting off for GX/LX inserts Tool s Tmax Dmax h=h1 h1 Designation mm NCAE16-1616R/L-GX09-1 2.0 2.5 7 52 16 16 NCAE16-1616R/L-GX09-2 3.0 3.5 7 52 16 16 NCAE20-2020R/L-GX16-1 2.0 2.5 12 63 20 20 NCAE25-2525R/L-GX16-1 12 79 25 25 NCAE20-2020R/L-GX16-2 3.0 3.5 12 63 20 20 NCAE25-2525R/L-GX16-2 12 79 25 25 NCAE32-3225R/L-GX16-2 12 100 32 32 NCAE20-2020R/L-GX16-3 4.0 5.0 12 63 20 20 NCAE25-2525R/L-GX16-3 12 79 25 25 NCAE32-3225R/L-GX16-3 12 100 32 32 NCAE25-2525R/L-GX16-4 6 12 79 25 25 NCAE32-3225R/L-GX16-4 12 100 32 32 NCBE20-2020R/L-GX24-2-21 3 21 63 20 20 NCBE25-2525R/L-GX24-2-21 21 79 25 25 NCBE25-2525R/L-GX24-3-21 4.0 5.0 21 79 25 25 NCBE32-3225R/L-GX24-3-21 21 100 32 32 NCBE25-2525R/L-GX24-4-21 6 21 79 25 25 NCBE32-3225R/L-GX24-4-21 21 100 32 32 NCBE25-2525R/L-GX24-5-21 21 79 25 25 NCBE32-3225R/L-LX80-32 8 32 100 32 32 NCBE32-3225R/L-LX80-45 45 100 32 32 f=f1+s/2 For Tmax with greater diameters than Dmax, see technical information on page A 470. Bodies and assembly parts are included in the scope of delivery. Ordering example Right-handed shank tool NCAE12-1212R-GX09-1 (right-handed module and right-handed toolholder) Left-handed shank tool NCAE12-1212L-GX09-1 (left-handed module and left-handed toolholder) Assembly parts Module size E16 E20 E25 E32 s- Clamping screw for LX grooving insert Tightening torque FS1217 (Torx 20) 18 in-lb (2.0 Nm) Screw for grooving module Tightening torque FS1052 (Torx 15) 18 in-lb (2.0 Nm) FS1053 (Torx 15) 18 in-lb (2.0 Nm) FS1054 (Torx 20) 27 in-lb (3.0 Nm) FS1055 (Torx 25) 27 in-lb (3.0 Nm) Handle key, small FS1047 (Torx T15) FS1047 (Torx T15) FS1048 (Torx 20) FS1049 (Torx 25) A 336
