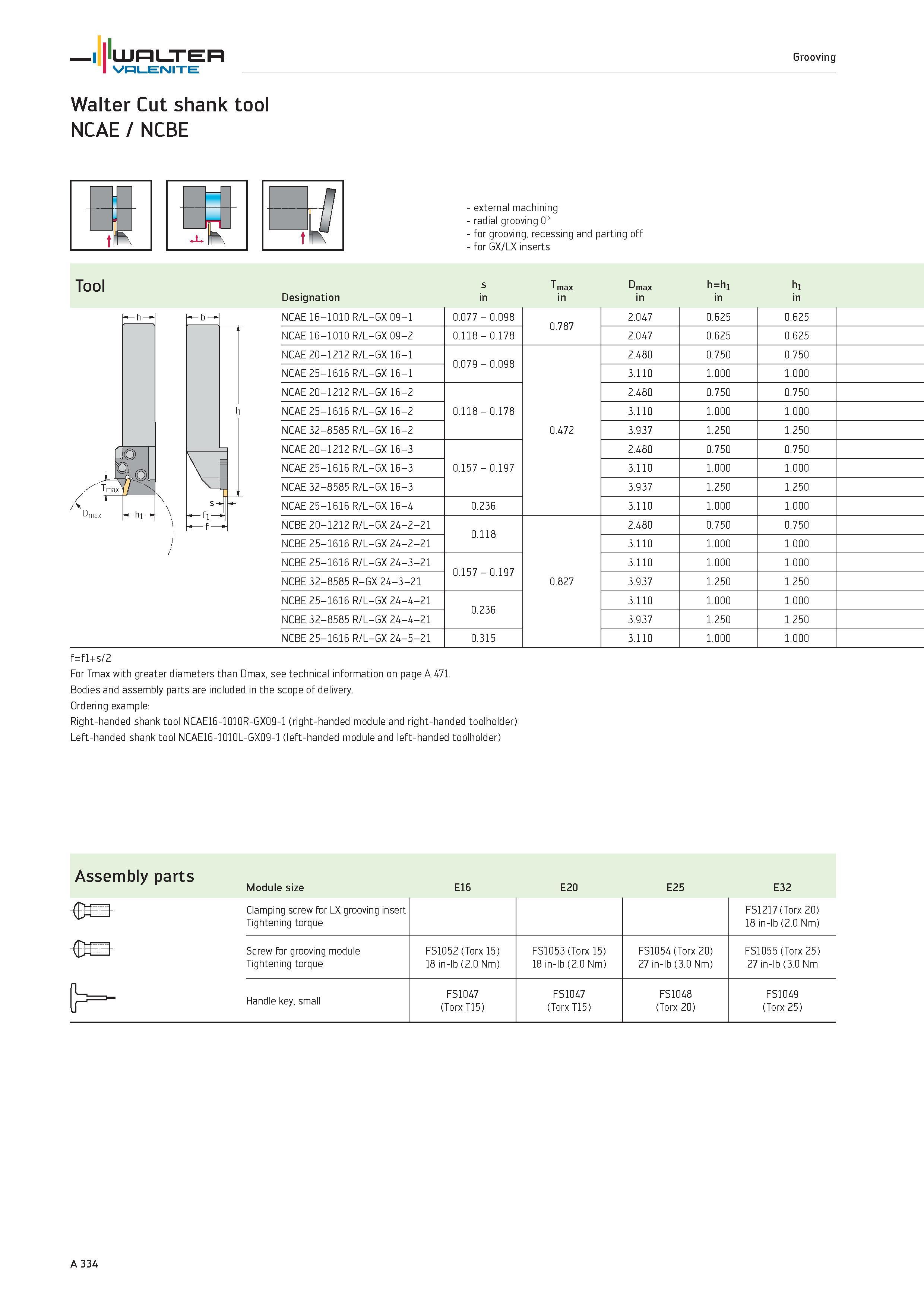

WALTER Valenite Grooving Walter Cut shank tool NCAE / NCBE external machining radial grooving 0° for grooving, recessing and parting off for GX/LX inserts Tool Designation h=h1 NCAE 16-1010 R/L-GX 09-1 0.077 0.098 0.787 2.047 0.625 0.625 NCAE 16-1010 R/L-GX 09-2 0.118 0.178 2.047 0.625 0.625 NCAE 20-1212 R/L-GX 16-1 0.079 0.098 0.472 2.480 0.750 0.750 NCAE 25-1616 R/L-GX 16-1 3.110 1.000 1.000 NCAE 20-1212 R/L-GX 16-2 0.118 0.178 2.480 0.750 0.750 NCAE 25-1616 R/L-GX 16-2 3.110 1.000 1.000 NCAE 32-8585 R/L-GX 16-2 3.937 1.250 1.250 NCAE 20-1212 R/L-GX 16-3 0.157 0.197 2.480 0.750 0.750 NCAE 25-1616 R/L-GX 16-3 3.110 1.000 1.000 NCAE 32-8585 R/L-GX 16-3 3.937 1.250 1.250 NCAE 25-1616 R/L-GX 16-4 0.236 3.110 1.000 1.000 NCBE 20-1212 R/L-GX 24-2-21 0.118 0.827 2.480 0.750 0.750 NCBE 25-1616 R/L-GX 24-2-21 3.110 1.000 1.000 NCBE 25-1616 R/L-GX 24-3-21 0.157 0.197 3.110 1.000 1.000 NCBE 32-8585 R-GX 24-3-21 3.937 1.250 1.250 NCBE 25-1616 R/L-GX 24-4-21 0.236 3.110 1.000 1.000 NCBE 32-8585 R/L-GX 24-4-21 3.937 1.250 1.250 NCBE 25-1616 R/L-GX 24-5-21 0.315 3.110 1.000 1.000 f=f1+s/2 For Tmax with greater diameters than Dmax, see technical information on page A 471. Bodies and assembly parts are included in the scope of delivery. Ordering example Right-handed shank tool NCAE16-1010R-GX09-1 (right-handed module and right-handed toolholder) Left-handed shank tool NCAE16-1010L-GX09-1 (left-handed module and left-handed toolholder) T D s max max Assembly parts Module size E16 E20 E25 E32 s Clamping screw for LX grooving insert Tightening torque FS1217 (Torx 20) 18 in-lb (2.0 Nm) Screw for grooving module Tightening torque FS1052 (Torx 15) 18 in-lb (2.0 Nm) FS1053 (Torx 15) 18 in-lb (2.0 Nm) FS1054 (Torx 20) 27 in-lb (3.0 Nm) FS1055 (Torx 25) 27 in-lb (3.0 Nm Handle key, small FS1047 (Torx T15) FS1047 (Torx T15) FS1048 (Torx 20) FS1049 (Torx 25) A 334
