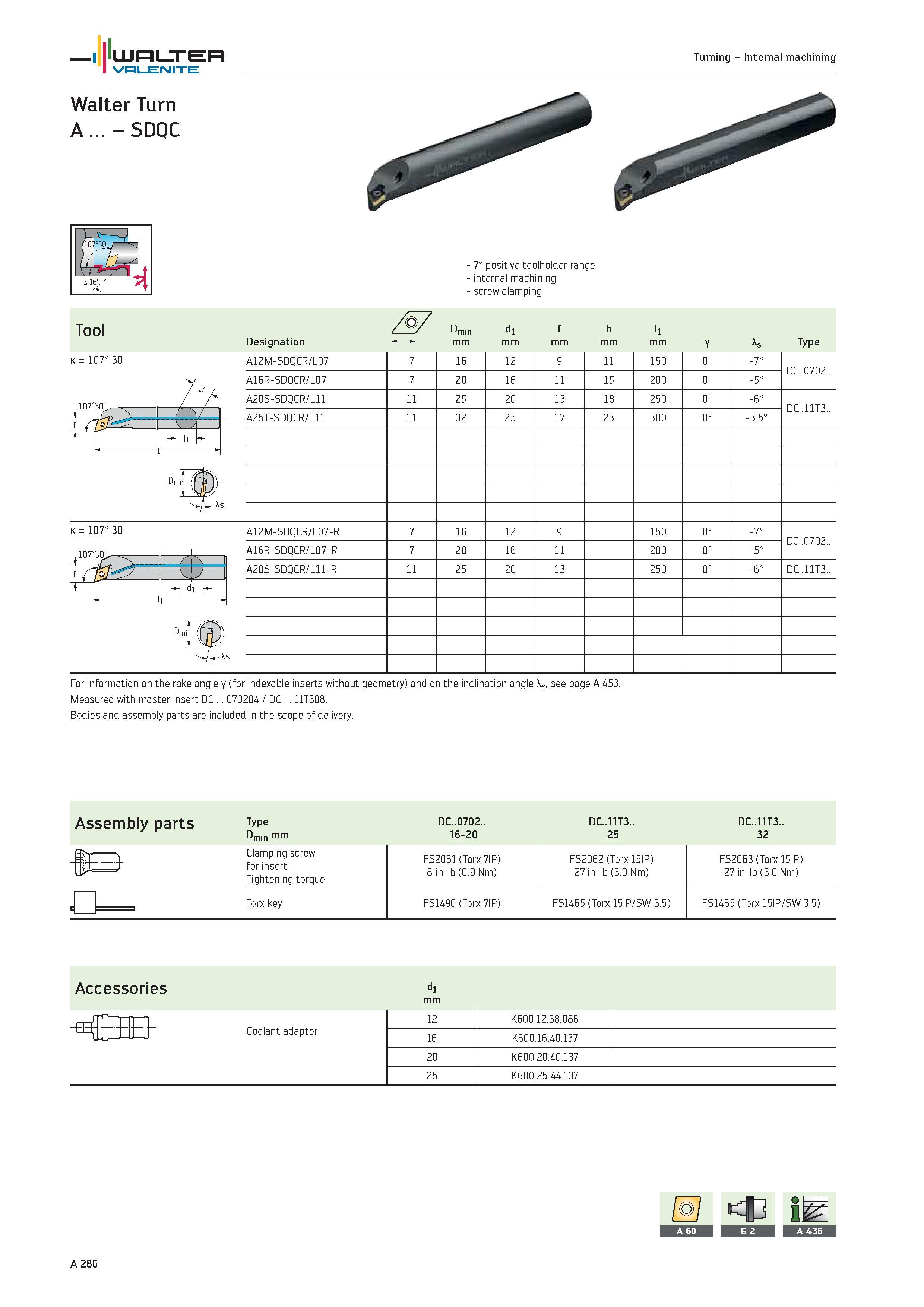

WALTER Valenite Turning Internal machining Walter Turn A SDQC k 107° 30' 7° positive toolholder range internal machining screw clamping Tool M7 Dmin d1 f h l1 Designation mm Y As Type A12M-SDQCR/L07 7 16 12 9 11 150 0° -7° DC..0702.. A16R-SDQCR/L07 7 20 16 11 15 200 0° -5° A20S-SDQCR/L11 11 25 20 13 18 250 0° -6° DC..11T3.. A25T-SDQCR/L11 11 32 25 17 23 300 0° -3.5° A12M-SDQCR/L07-R 7 16 12 9 150 0° -7° DC..0702.. A16R-SDQCR/L07-R 7 20 16 11 200 0° -5° A20S-SDQCR/L11-R 11 25 20 13 250 0° -6° DC..11T3.. k 107° 30' For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Measured with master insert DC 070204 / DC 11T308. Bodies and assembly parts are included in the scope of delivery. Assembly parts Type DC..0702.. DC..11T3.. DC..11T3.. Dmin mm 16-20 25 32 -to =k Clamping screw T for insert FS2061 (Torx 7IP) 8 in-lb (0.9 Nm) FS2062 (Torx 15IP) 27 in-lb (3.0 Nm) FS2063 (Torx 15IP) 27 in-lb (3.0 Nm) Tightening torque C Torx key FS1490 (Torx 7IP) FS1465 (Torx 15IP/SW 3.5) FS1465 (Torx 15IP/SW 3.5) Accessories d1 mm n rfTT 11 n il r i t j t 12 K600.12.38.086 LUjM Coolant adapter 16 K600.16.40.137 20 K600.20.40.137 25 K600.25.44.137 A 286
