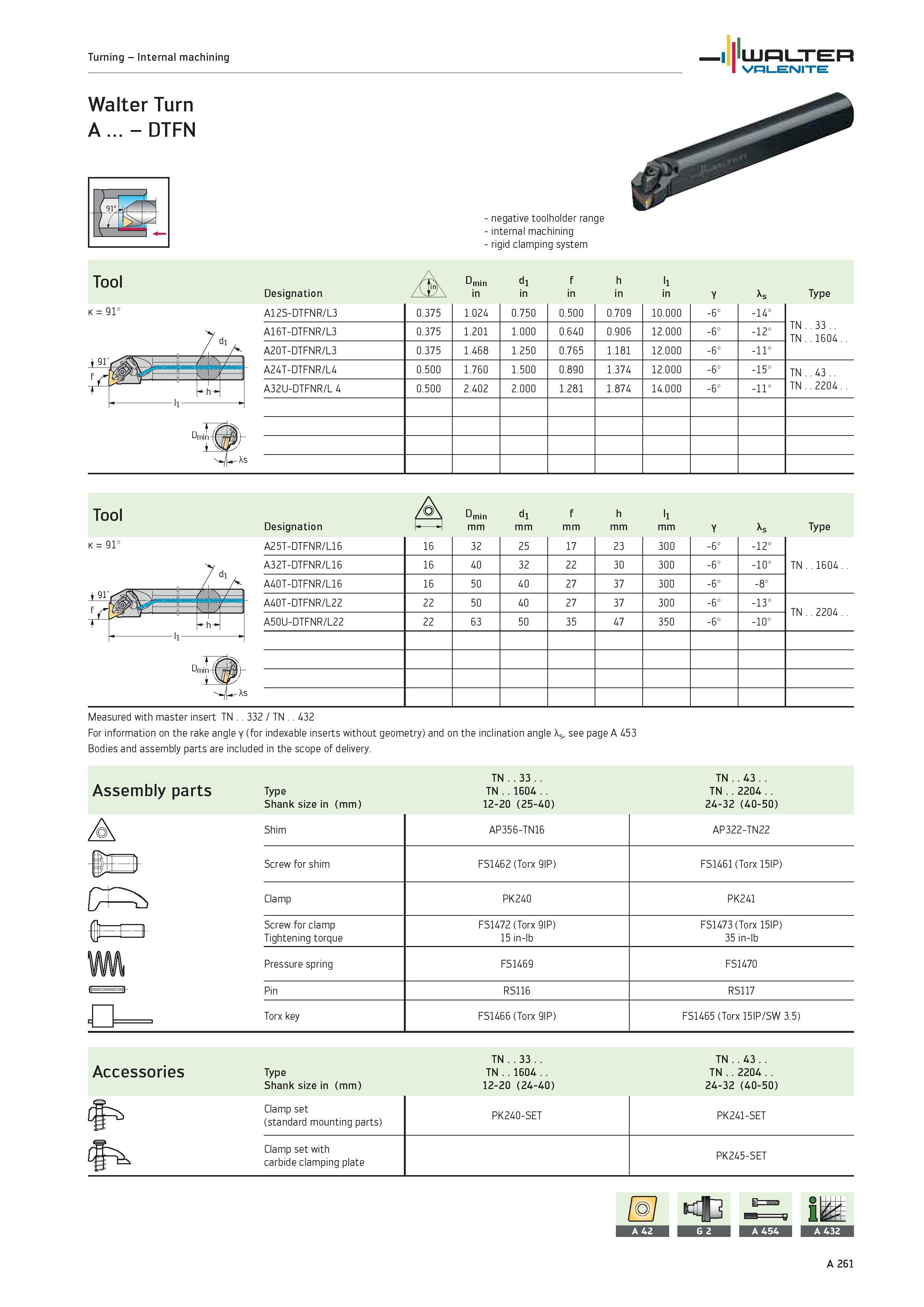

Turning Internal machining WALTER Valenite Walter Turn A DTFN k 91° negative toolholder range internal machining rigid clamping system Tool Dmin d1 f h l1 Designation /vi in Y As Type A12S-DTFNR/L3 0.375 1.024 0.750 0.500 0.709 10.000 -6° -14° TN .33 TN .1604.. A16T-DTFNR/L3 0.375 1.201 1.000 0.640 0.906 12.000 -6° -12° A20T-DTFNR/L3 0.375 1.468 1.250 0.765 1.181 12.000 -6° -11° A24T-DTFNR/L4 0.500 1.760 1.500 0.890 1.374 12.000 -6° -15° TN ..43 TN .2204.. A32U-DTFNR/L4 0.500 2.402 2.000 1.281 1.874 14.000 -6° -11° Tool Dmin d1 f h l1 Designation A mm Y As Type k 91° A25T-DTFNR/L16 16 32 25 17 23 300 -6° -12° TN .1604.. A32T-DTFNR/L16 16 40 32 22 30 300 -6° -10° A40T-DTFNR/L16 16 50 40 27 37 300 -6° -8° A40T-DTFNR/L22 22 50 40 27 37 300 -6° -13° TN 2204 A50U-DTFNR/L22 22 63 50 35 47 350 -6° -10° Measured with master insert TN 332 / TN 432 For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453 Bodies and assembly parts are included in the scope of delivery. TN 33 TN 43 Assembly parts Type TN ..1604 TN 2204 Shank size in (mm) 12-20 (25-40) 24-32 (40-50) Shim Screw for shim Clamp Screw for clamp Tightening torque Pressure spring Pin Torx key AP356-TN16 FS1462 (Torx 9IP) PK240 FS1472 (Torx 9IP) 15 in-lb FS1469 RS116 FS1466 (Torx 9IP) AP322-TN22 FS1461 (Torx 15IP) PK241 FS1473 (Torx 15IP) 35 in-lb FS1470 RS117 FS1465 (Torx 15IP/SW 3.5) Accessories Type Shank size in (mm) TN 33 TN ..1604 12-20 (24-40) TN 43 TN 2204 24-32 (40-50) Clamp set (standard mounting parts) PK240-SET PK241-SET Clamp set with carbide clamping plate PK245-SET h n A 261
