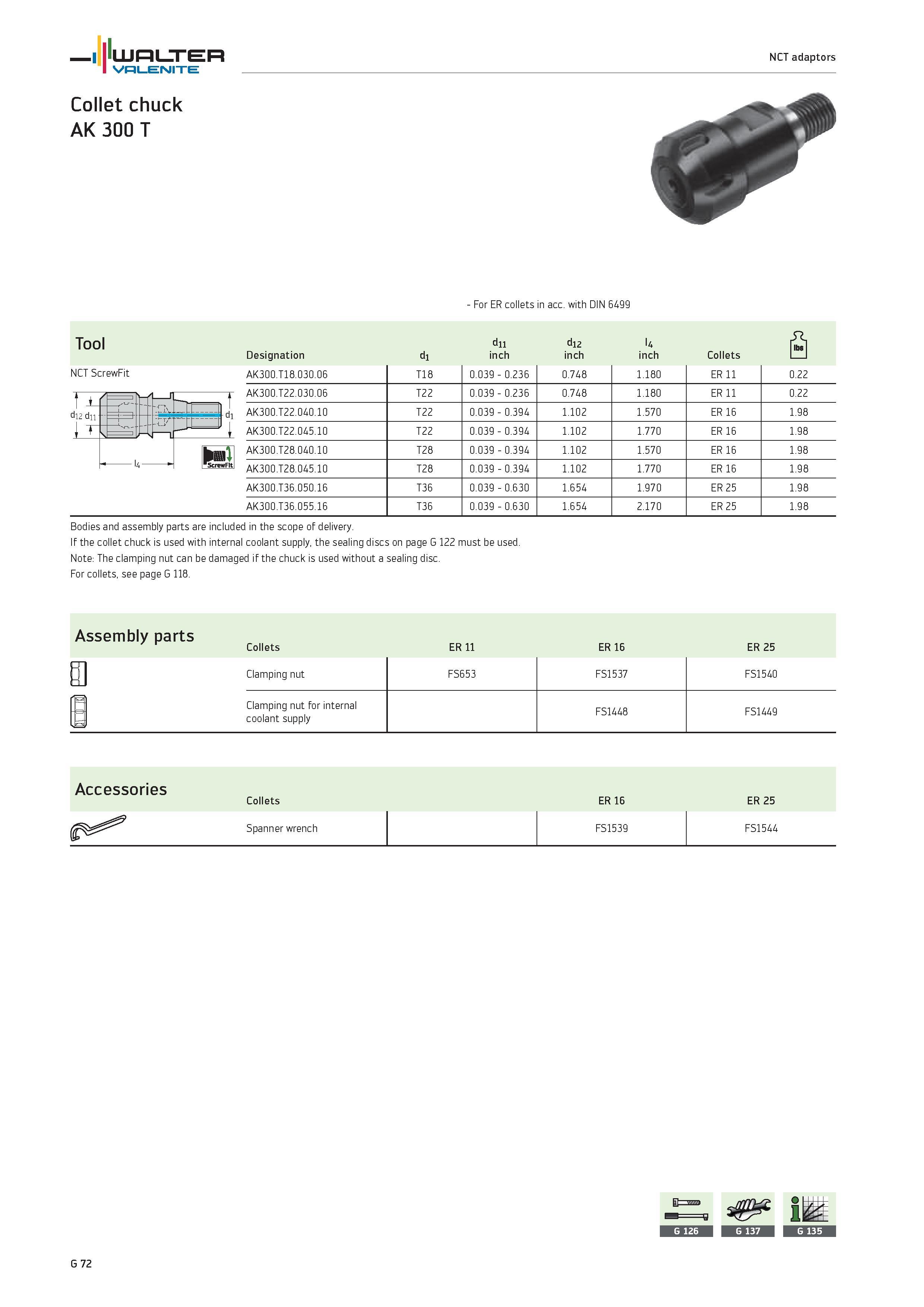

WALTER Valenite NCT adaptors Collet chuck AK 300 T For ER collets in acc. with DIN 6499 Tool dii di2 l4 Designation di inch inch inch Collets 1 1 NCT ScrewFit d12 dn Jjr A. H- EB pmT SrrPwFIt AK300.T18.030.06 T18 0.039 0.236 0.748 1.180 ER 11 0.22 AK300.T22.030.06 T22 0.039 0.236 0.748 1.180 ER 11 0.22 AK300.T22.040.10 T22 0.039 0.394 1.102 1.570 ER 16 1.98 AK300.T22.045.10 T22 0.039 0.394 1.102 1.770 ER 16 1.98 AK300.T28.040.10 T28 0.039 0.394 1.102 1.570 ER 16 1.98 AK300.T28.045.10 T28 0.039 0.394 1.102 1.770 ER 16 1.98 AK300.T36.050.16 T36 0.039 0.630 1.654 1.970 ER 25 1.98 AK300.T36.055.16 T36 0.039 0.630 1.654 2.170 ER 25 1.98 Bodies and assembly parts are included in the scope of delivery. If the collet chuck is used with internal coolant supply, the sealing discs on page G 122 must be used. Note The clamping nut can be damaged if the chuck is used without a sealing disc. For collets, see page G 118. Assembly parts Collets ER ii ER i6 ER 25 Clamping nut FS653 FS1537 FS1540 f -B s Clamping nut for internal coolant supply FS1448 FS1449 Accessories Collets ER i6 ER 25 Spanner wrench FS1539 FS1544 G 72
