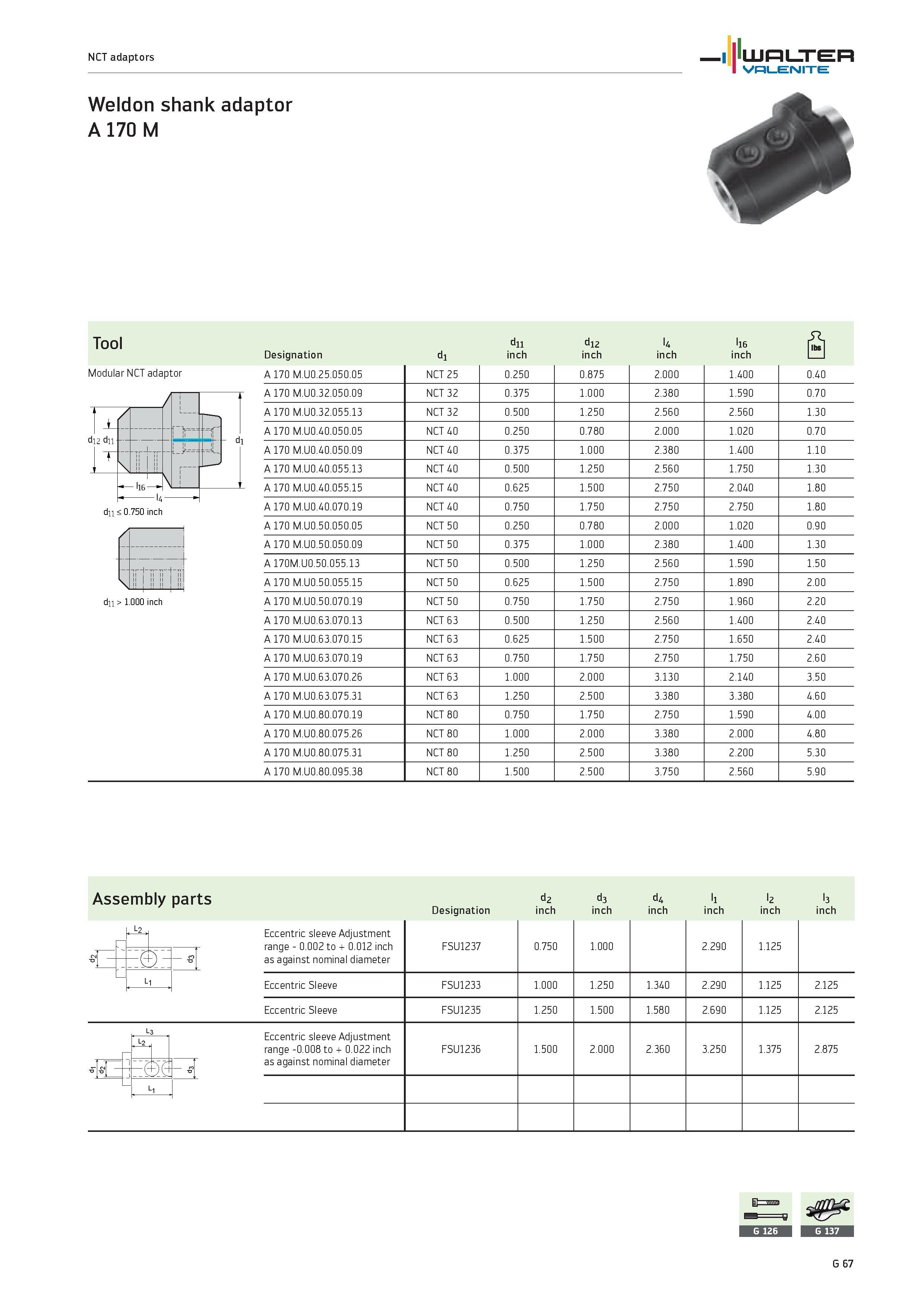

2449 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.G67

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. G67 2449 ENG Lab2u

Tool Modular NCT adaptor dn > 1.000 inch d11 d12 l4 l16 ft Designation d1 inch inch inch inch A 170 M.U0.25.050.05 NCT 25 0.250 0.875 2.000 1.400 0.40 A 170 M.U0.32.050.09 NCT 32 0.375 1.000 2.380 1.590 0.70 A 170 M.U0.32.055.13 NCT 32 0.500 1.250 2.560 2.560 1.30 A 170 M.U0.40.050.05 NCT 40 0.250 0.780 2.000 1.020 0.70 A 170 M.U0.40.050.09 NCT 40 0.375 1.000 2.380 1.400 1.10 A 170 M.U0.40.055.13 NCT 40 0.500 1.250 2.560 1.750 1.30 A 170 M.U0.40.055.15 NCT 40 0.625 1.500 2.750 2.040 1.80 A 170 M.U0.40.070.19 NCT 40 0.750 1.750 2.750 2.750 1.80 A 170 M.U0.50.050.05 NCT 50 0.250 0.780 2.000 1.020 0.90 A 170 M.U0.50.050.09 NCT 50 0.375 1.000 2.380 1.400 1.30 A 170M.U0.50.055.13 NCT 50 0.500 1.250 2.560 1.590 1.50 A 170 M.U0.50.055.15 NCT 50 0.625 1.500 2.750 1.890 2.00 A 170 M.U0.50.070.19 NCT 50 0.750 1.750 2.750 1.960 2.20 A 170 M.U0.63.070.13 NCT 63 0.500 1.250 2.560 1.400 2.40 A 170 M.U0.63.070.15 NCT 63 0.625 1.500 2.750 1.650 2.40 A 170 M.U0.63.070.19 NCT 63 0.750 1.750 2.750 1.750 2.60 A 170 M.U0.63.070.26 NCT 63 1.000 2.000 3.130 2.140 3.50 A 170 M.U0.63.075.31 NCT 63 1.250 2.500 3.380 3.380 4.60 A 170 M.U0.80.070.19 NCT 80 0.750 1.750 2.750 1.590 4.00 A 170 M.U0.80.075.26 NCT 80 1.000 2.000 3.380 2.000 4.80 A 170 M.U0.80.075.31 NCT 80 1.250 2.500 3.380 2.200 5.30 A 170 M.U0.80.095.38 NCT 80 1.500 2.500 3.750 2.560 5.90 Assembly parts d2 d3 d4 l1 l2 l3 Designation inch inch inch inch inch inch l2 Eccentric sleeve Adjustment FSU1237 0.750 1.000 2.290 1.125 A 1- S as against nominal diameter Li FSU1233 1.000 1.250 1.340 2.290 1.125 2.125 Eccentric Sleeve FSU1235 1.250 1.500 1.580 2.690 1.125 2.125 L l2 3 Eccentric sleeve Adjustment range -0.008 to + 0.022 inch FSU1236 1.500 2.000 2.360 3.250 1.375 2.875 O -oj -HH as against nominal diameter L1 G 67
