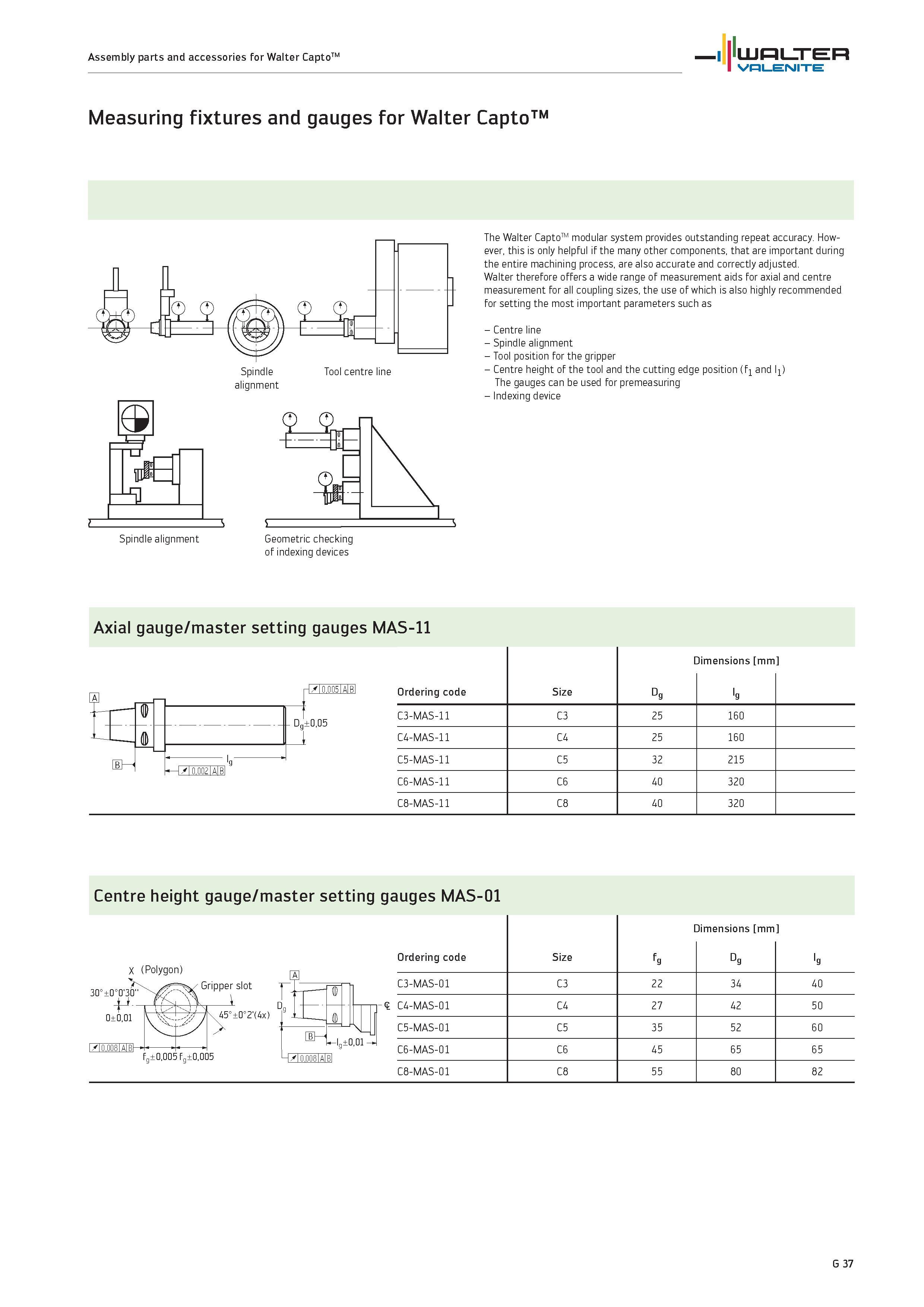

Assembly parts and accessories for Walter CaptoTM WALTER Valenite Measuring fixtures and gauges for Walter Capto TM alignment The Walter CaptoTM modular system provides outstanding repeat accuracy. However, this is only helpful if the many other components, that are important during the entire machining process, are also accurate and correctly adjusted. Walter therefore offers a wide range of measurement aids for axial and centre measurement for all coupling sizes, the use of which is also highly recommended for setting the most important parameters such as Centre line Spindle alignment Tool position for the gripper Centre height of the tool and the cutting edge position f and 1 The gauges can be used for premeasuring Indexing device Geometric checking of indexing devices Axial gauge/master setting gauges MAS-11 i- H IO.OO5 Ordering code Size Dg dimensions mm g t IIP Hb n nnr C3-MAS-11 na±0 05 C3 25 160 l C4-MAS-11 C4 25 160 m < 'a C5-MAS-11 C5 32 215 C6-MAS-11 C6 40 320 C8-MAS-11 C8 40 320 Centre height gauge/master setting gauges MAS-01 X (Polygon) 30°±0°0'30 0±0,01 I/I0.008IAIBM- Gripper slot 45°±0°2'(4x) M/I0.008IAIB Ordering code Size fg imensions mm Dg g C3-MAS-01 C3 22 34 40 C4-MAS-01 C4 27 42 50 C5-MAS-01 C5 35 52 60 C6-MAS-01 C6 45 65 65 C8-MAS-01 C8 55 80 82 G 37
