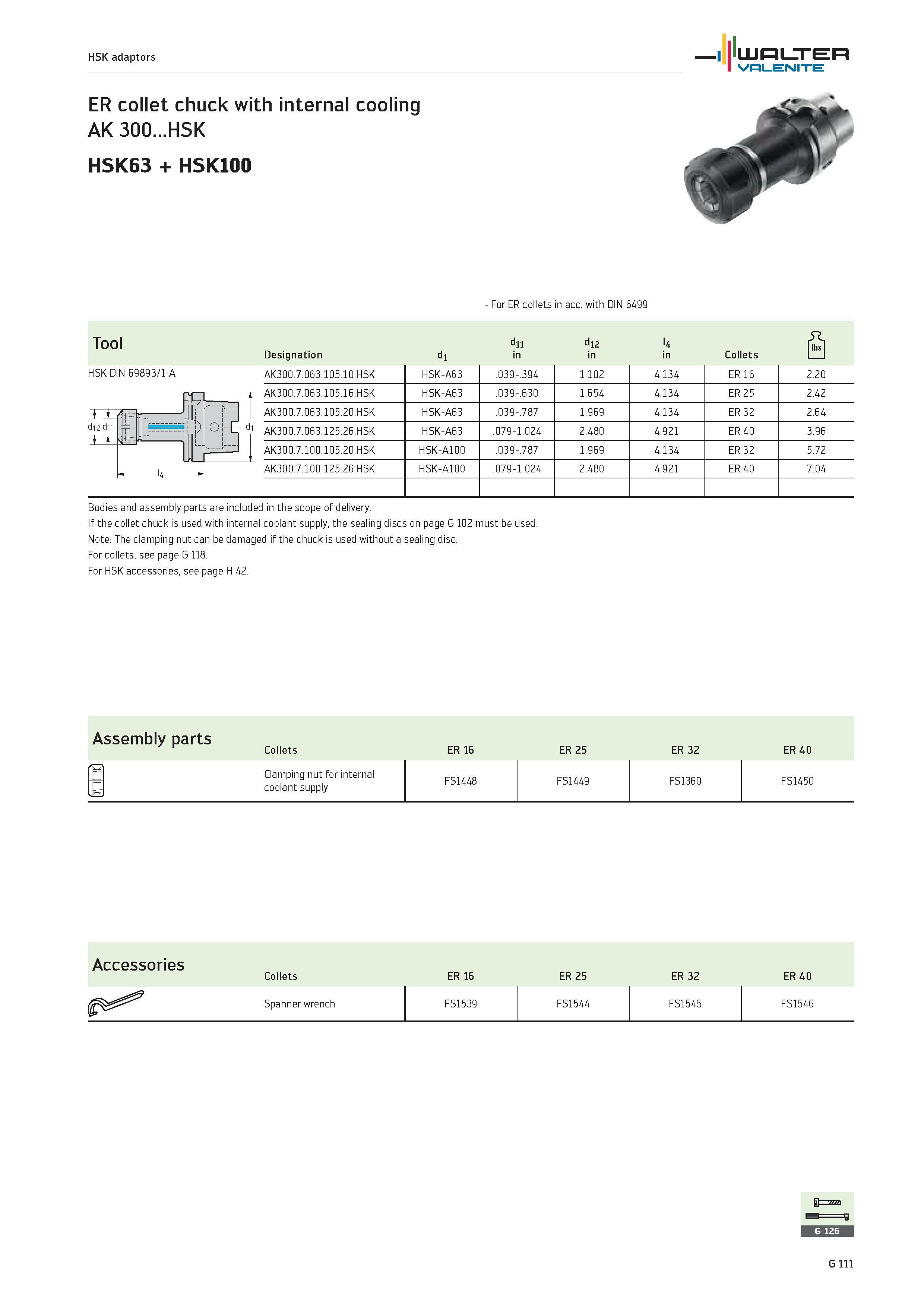

HSK adaptors WALTER Valenite ER collet chuck with internal cooling AK 300...HSK HSK63 + HSK100 For ER collets in acc. with DIN 6499 Tool dii di2 l4 Mbsl Designation di in Collets 1 1 HSK DIN 69893/1 A TTl d12 dn Pd1 AK300.7.063.105.10.HSK HSK-A63 .039-.394 1.102 4.134 ER 16 2.20 AK300.7.063.105.16.HSK HSK-A63 .039-.630 1.654 4.134 ER 25 2.42 AK300.7.063.105.20.HSK HSK-A63 .039- 787 1.969 4.134 ER 32 2.64 AK300.7.063.125.26.HSK HSK-A63 .079-1.024 2.480 4.921 ER 40 3.96 AK300.7.100.105.20.HSK HSK-A100 .039- 787 1.969 4.134 ER 32 5.72 AK300.7.100.125.26.HSK HSK-A100 .079-1.024 2.480 4.921 ER 40 7.04 Bodies and assembly parts are included in the scope of delivery. If the collet chuck is used with internal coolant supply, the sealing discs on page G 102 must be used. Note The clamping nut can be damaged if the chuck is used without a sealing disc. For collets, see page G 118. For HSK accessories, see page H 42. Assembly parts Collets ER i6 ER 25 ER 32 ER 40 Clamping nut for internal coolant supply FS1448 FS1449 FS1360 FS1450 Accessories Collets ER i6 ER 25 ER 32 ER 40 Spanner wrench FS1539 FS1544 FS1545 FS1546 G iii
