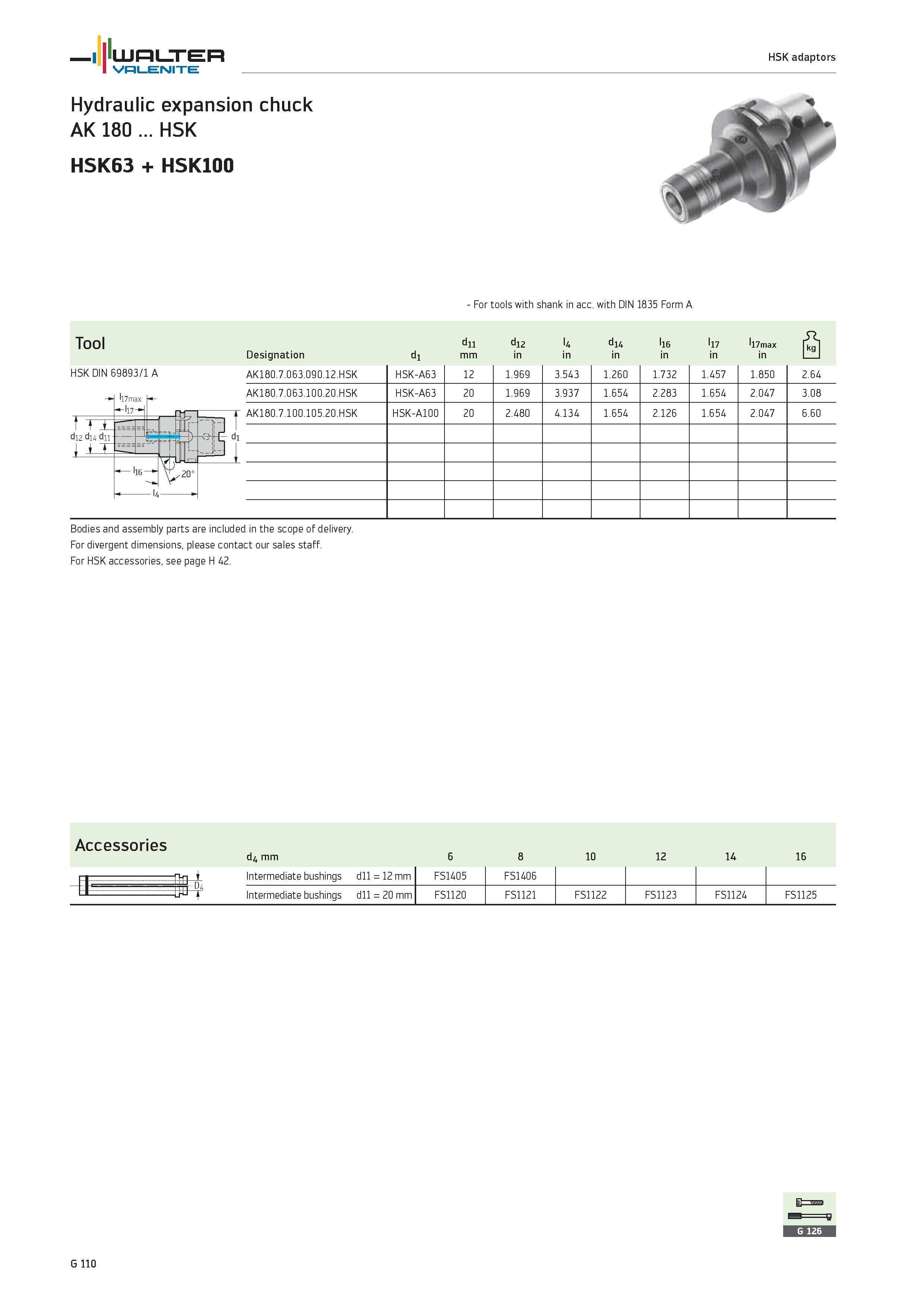

WALTER Valenite HSK adaptors Hydraulic expansion chuck AK 180 HSK HSK63 + HSK100 For tools with shank in acc. with DIN 1835 Form A Tool d11 d12 l4 d14 l16 l17 l17max kgl Designation d1 mm in 1 1 HSK DIN 69893/1 A AK180.7.063.090.12.HSK HSK-A63 12 1.969 3.543 1.260 1.732 1.457 1.850 2.64 AK180.7.063.100.20.HSK HSK-A63 20 1.969 3.937 1.654 2.283 1.654 2.047 3.08 AK180.7.100.105.20.HSK HSK-A100 20 2.480 4.134 1.654 2.126 1.654 2.047 6.60 Bodies and assembly parts are included in the scope of delivery. For divergent dimensions, please contact our sales staff. For HSK accessories, see page H 42. Accessories d4 mm 6 8 10 12 14 16 Intermediate bushings d11 12 mm FS1405 FS1406 Intermediate bushings d11 20 mm FS1120 FS1121 FS1122 FS1123 FS1124 FS1125 G 110
