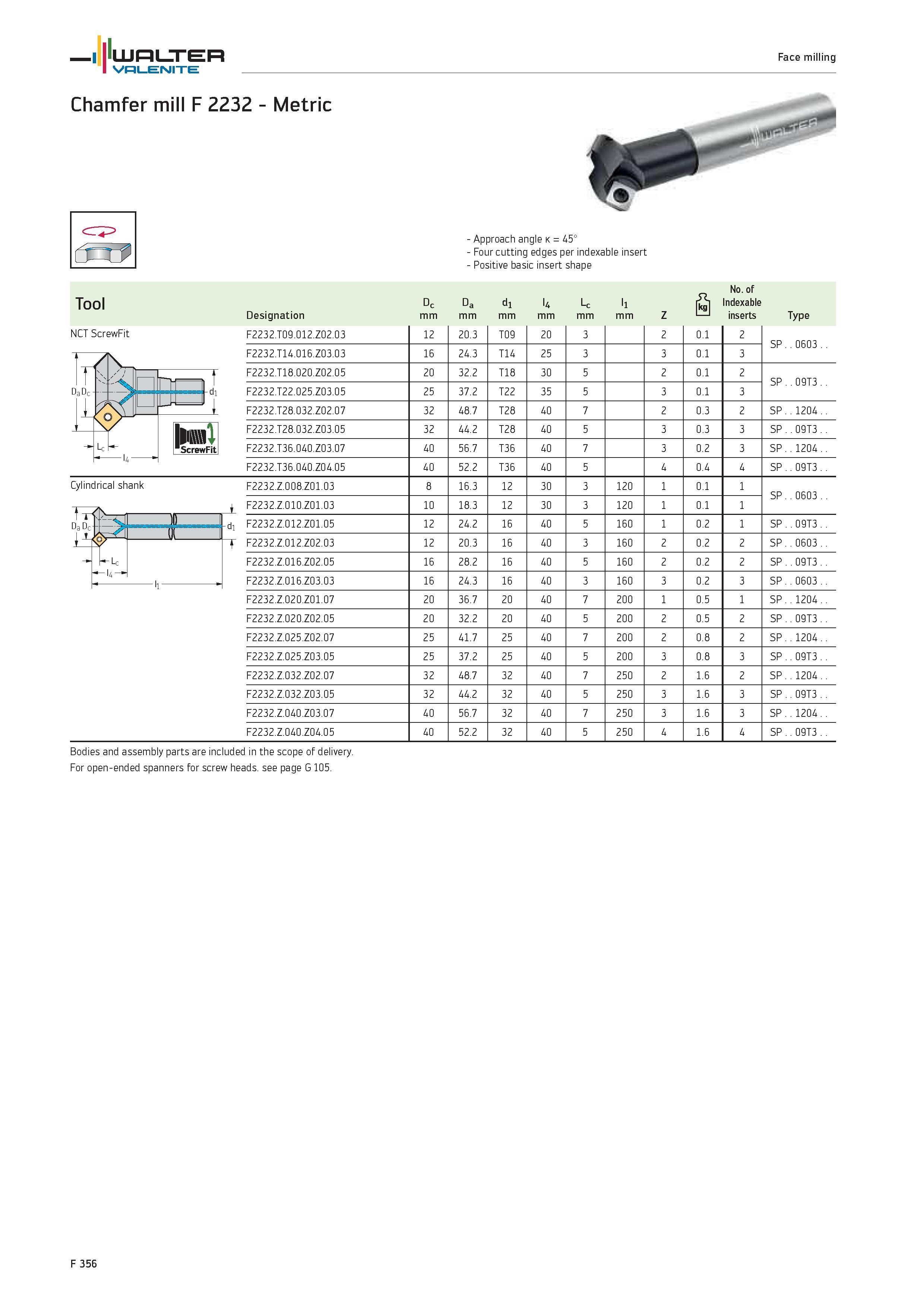

WALTER Valenite Face milling Chamfer mill F 2232 Metric Tool NCT ScrewFit Approach angle k 45° Four cutting edges per indexable insert Positive basic insert shape No. of Designation Dc mm Da mm dl mm U mm Lc mm ll mm Z ndexable inserts Type F2232.T09.012.Z02.03 12 20.3 T09 20 3 2 0.1 2 SP 0603 F2232.T14.016.Z03.03 16 24.3 T14 25 3 3 0.1 3 F2232.T18.020.Z02.05 20 32.2 T18 30 5 2 0.1 2 SP .09T3.. F2232.T22.025.Z03.05 25 37.2 T22 35 5 3 0.1 3 F2232.T28.032.Z02.07 32 48.7 T28 40 7 2 0.3 2 SP .1204 F2232.T28.032.Z03.05 32 44.2 T28 40 5 3 0.3 3 SP .09T3 F2232.T36.040.Z03.07 40 56.7 T36 40 7 3 0.2 3 SP .1204 F2232.T36.040.Z04.05 40 52.2 T36 40 5 4 0.4 4 SP 09T3 F2232.Z.008.Z01.03 8 16.3 12 30 3 120 1 0.1 1 SP 0603 F2232.Z.010.Z01.03 10 18.3 12 30 3 120 1 0.1 1 F2232.Z.012.Z01.05 12 24.2 16 40 5 160 1 0.2 1 SP .09T3 F2232.Z.012.Z02.03 12 20.3 16 40 3 160 2 0.2 2 SP .0603 F2232.Z.016.Z02.05 16 28.2 16 40 5 160 2 0.2 2 SP .09T3 F2232.Z.016.Z03.03 16 24.3 16 40 3 160 3 0.2 3 SP .0603 F2232.Z.020.Z01.07 20 36.7 20 40 7 200 1 0.5 1 SP .1204 F2232.Z.020.Z02.05 20 32.2 20 40 5 200 2 0.5 2 SP 09T3 F2232.Z.025.Z02.07 25 41.7 25 40 7 200 2 0.8 2 SP .1204 F2232.Z.025.Z03.05 25 37.2 25 40 5 200 3 0.8 3 SP 09T3 F2232.Z.032.Z02.07 32 48.7 32 40 7 250 2 1.6 2 SP .1204 F2232.Z.032.Z03.05 32 44.2 32 40 5 250 3 1.6 3 SP 09T3 F2232.Z.040.Z03.07 40 56.7 32 40 7 250 3 1.6 3 SP .1204 F2232.Z.040.Z04.05 40 52.2 32 40 5 250 4 1.6 4 SP 09T3 Cylindrical shank Bodies and assembly parts are included in the scope of delivery. For open-ended spanners for screw heads. see page G 105. F 356
