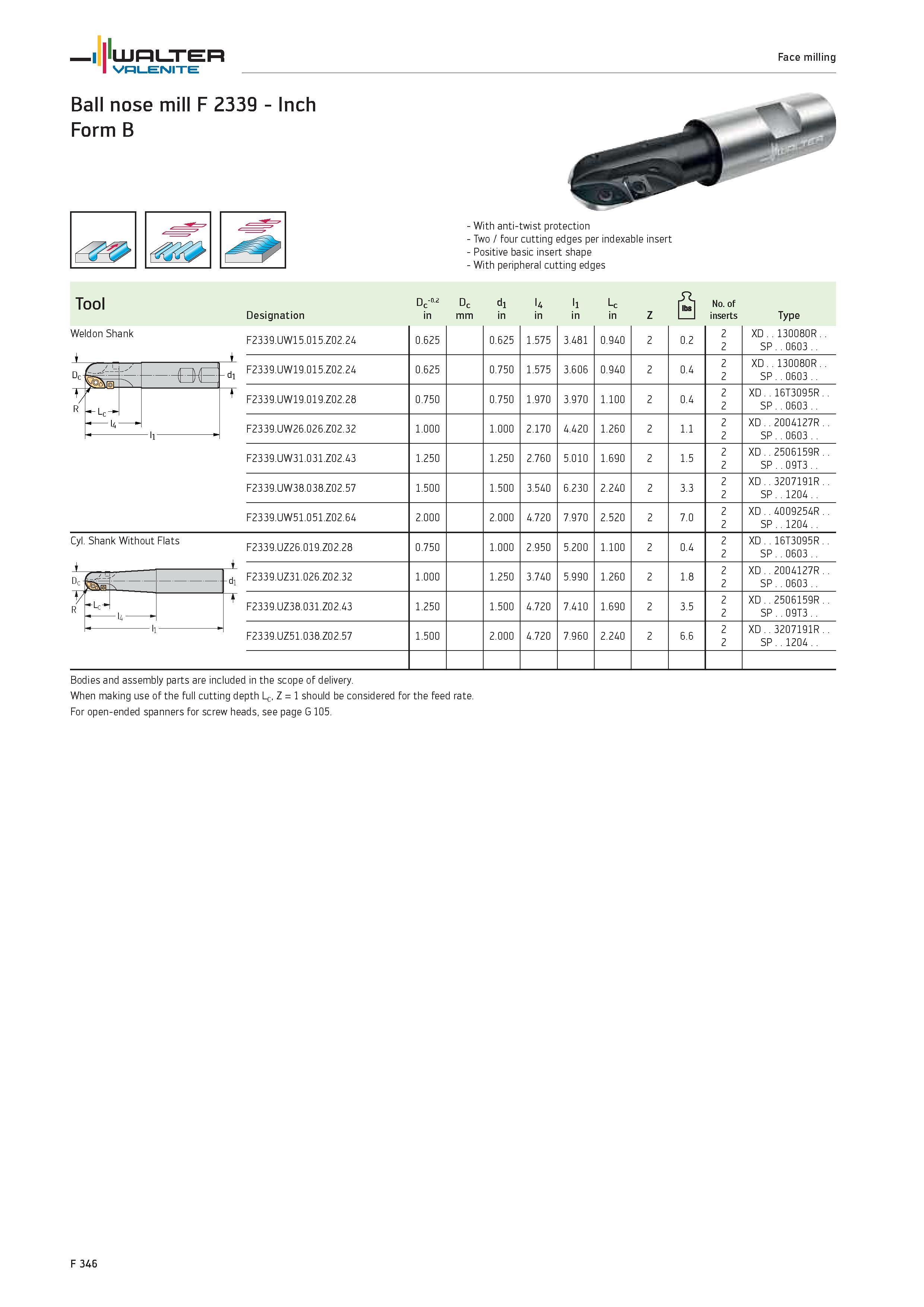

WALTER Valenite Face milling Ball nose mill F 2339 Inch Form B With anti-twist protection Two / four cutting edges per indexable insert Positive basic insert shape With peripheral cutting edges Tool u D u D dl l4 ll Lc r 2 No. of Designation in mm in Z l inserts Type Weldon Shank 1 F2339.UW15.015.Z02.24 0.625 0.625 1.575 3.481 0.940 2 0.2 2 2 XD .130080R. SP..0603.. F2339.UW19.015.Z02.24 0.625 0.750 1.575 3.606 0.940 2 0.4 2 2 XD .130080R.. SP..0603.. F2339.UW19.019.Z02.28 0.750 0.750 1.970 3.970 1.100 2 0.4 2 2 XD..16T3095R.. SP..0603 F2339.UW26.026.Z02.32 1.000 1.000 2.170 4.420 1.260 2 1.1 2 2 XD .2004127R.. SP..0603 F2339.UW31.031.Z02.43 1.250 1.250 2.760 5.010 1.690 2 1.5 2 2 XD..2506159R SP..09T3.. F2339.UW38.038.Z02.57 1.500 1.500 3.540 6.230 2.240 2 3.3 2 2 XD .3207191R.. SP..1204 F2339.UW51.051.Z02.64 2.000 2.000 4.720 7.970 2.520 2 7.0 2 2 XD..4009254R.. SP..1204 F2339.UZ26.019.Z02.28 0.750 1.000 2.950 5.200 1.100 2 0.4 2 2 XD..16T3095R.. SP..0603 F2339.UZ31.026.Z02.32 1.000 1.250 3.740 5.990 1.260 2 1.8 2 2 XD .2004127R.. SP..0603.. F2339.UZ38.031.Z02.43 1.250 1.500 4.720 7.410 1.690 2 3.5 2 2 XD .2506159R.. SP .09T3.. F2339.UZ51.038.Z02.57 1.500 2.000 4.720 7.960 2.240 2 6.6 2 2 XD .3207191R.. SP..1204 Cyl. Shank Without Flats -Lc ll Bodies and assembly parts are included in the scope of delivery. When making use of the full cutting depth Lc, Z 1 should be considered for the feed rate. For open-ended spanners for screw heads, see page G 105. F 346
