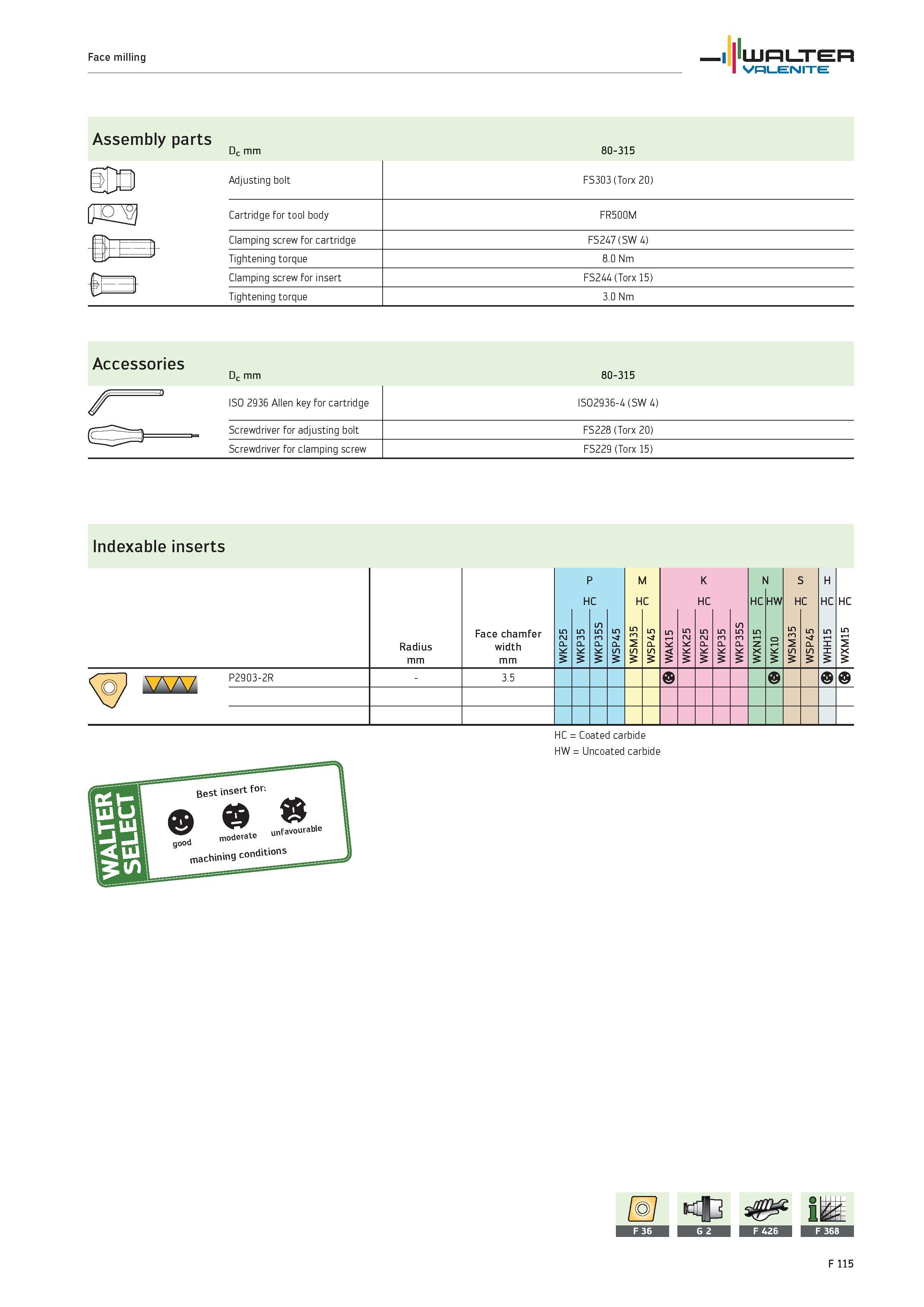

Face milling WALTER Valenite Assembly parts Dc mm 80-315 Adjusting bolt FS303 (Torx 20) Cartridge for tool body FR500M fi Clamping screw for cartridge FS247 (SW 4) Tightening torque 8.0 Nm hi Clamping screw for insert FS244 (Torx 15) Tightening torque 3.0 Nm Accessories Dc mm 80-315 ISO 2936 Allen key for cartridge ISO2936-4 (SW 4) Screwdriver for adjusting bolt FS228 (Torx 20) Screwdriver for clamping screw FS229 (Torx 15) Indexable inserts P HC M HC K HC N HC HW S HC H HC Radius mm Face chamfer width mm 5 P 5 5 m P Si S 5 m CL Si 5 P S si 5 m 2 S ss 5 CL Si 5 l-H K 1 5 K Si 5 CL si 5 m P K si S 5 m P K ss 5 l-H z X SS o l-H 5 m 2 S 5 5 CL WS 5 l-H 5 5 l-H 2 X 5 Y7V7V7 P29U3-2R 3.5 HC Coated carbide HW Uncoated carbide F 115
