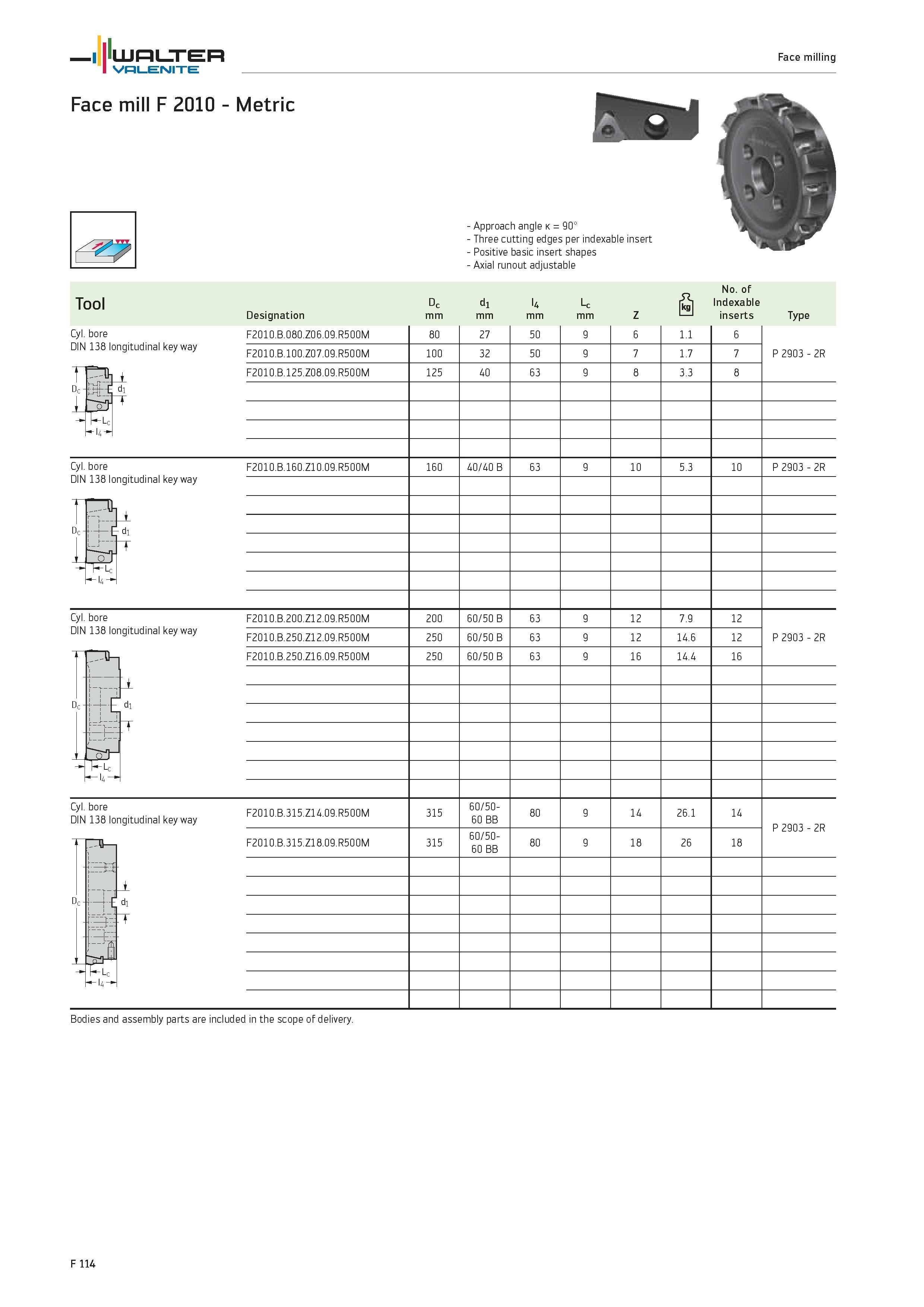

WALTER Valenite Face milling Face mill F 2010 Metric Approach angle k 90° Three cutting edges per indexable insert Positive basic insert shapes Axial runout adjustable No. of Tool Dc di U Lc Ikgl Indexable Designation mm Z L ll inserts Type Cyl. bore DIN 138 longitudinal key way F2010.B.080.Z06.09.R500M 80 27 50 9 6 1.1 6 P 2903 2R F2010.B.100.Z07.09.R500M 100 32 50 9 7 1.7 7 F2010.B.125.Z08.09.R500M 125 40 63 9 8 3.3 8 F2010.B.160.Z10.09.R500M 160 40/40 B 63 9 10 5.3 10 P 2903 2R F2010.B.200.Z12.09.R500M 200 60/50 B 63 9 12 7.9 12 P 2903 2R F2010.B.250.Z12.09.R500M 250 60/50 B 63 9 12 14.6 12 F2010.B.250.Z16.09.R500M 250 60/50 B 63 9 16 14.4 16 F2010.B.315.Z14.09.R500M 315 60/5060 BB 80 9 14 26.1 14 P 2903 2R F2010.B.315.Z18.09.R500M 315 60/5060 BB 80 9 18 26 18 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way P I Dc- d1 T r-Lc Bodies and assembly parts are included in the scope of delivery. F 114
