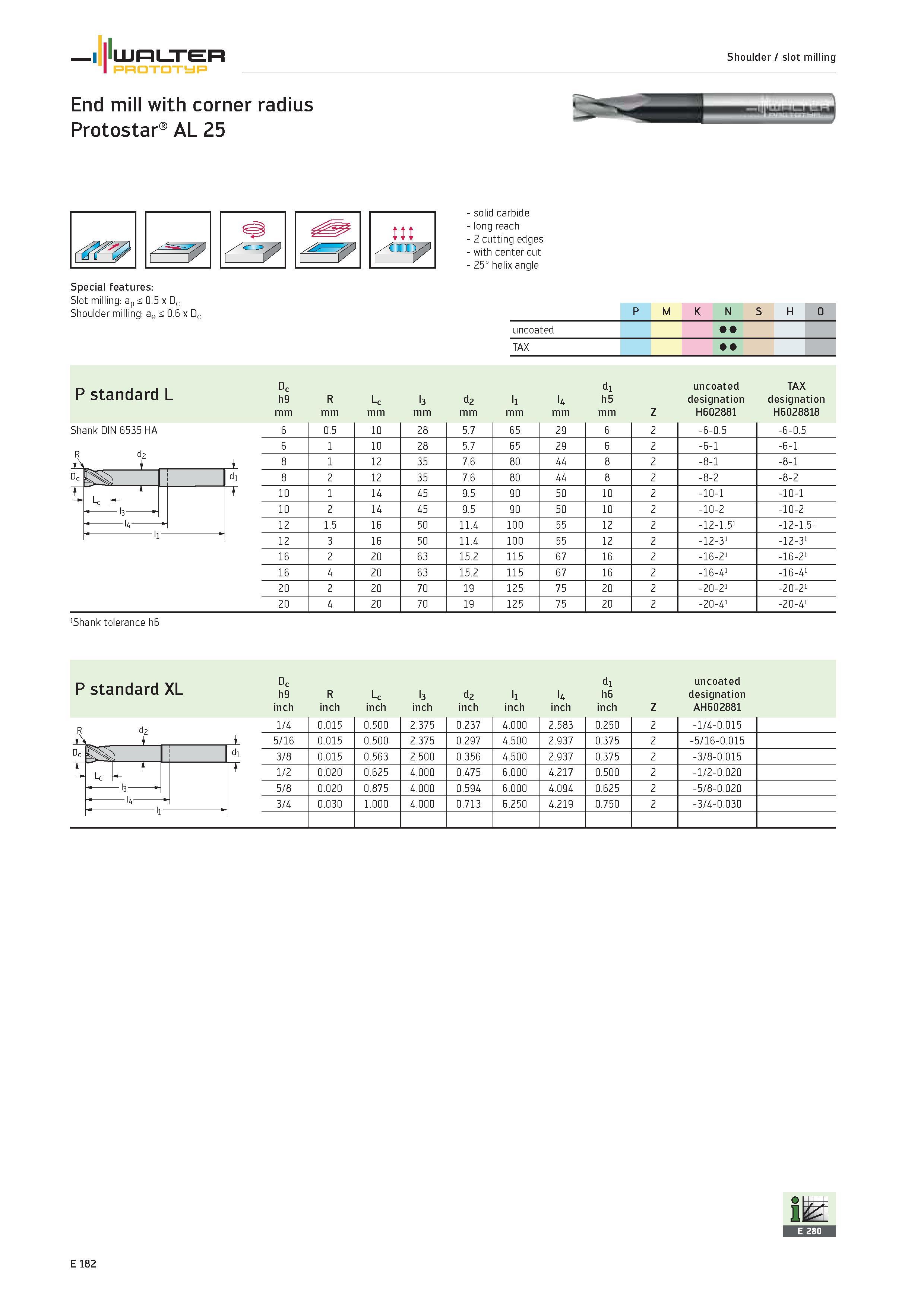

WALTER PROTOTYP End mill with corner radius Protostar AL 25 Shoulder / slot milling "7 solid carbide long reach 2 cutting edges with center cut 25° helix angle Special features Slot milling ap < 0.5 x Dc Shoulder milling ae < 0.6 x Dc 1 P M K N S H O uncoated TAX P standard L U O Q jz R Lc l3 d2 ll l dl h5 uncoated designation TAX designation mm Z H602881 H6028818 Shank DIN 6535 HA 6 0.5 10 28 5.7 65 29 6 2 -6-0.5 -6-0.5 6 1 10 28 5.7 65 29 6 2 -6-1 -6-1 ± 8 1 12 35 7.6 80 44 8 2 -8-1 -8-1 Dc d 8 2 12 35 7.6 80 44 8 2 -8-2 -8-2 Lc k T 10 1 14 45 9.5 90 50 10 2 -10-1 -10-1 10 2 14 45 9.5 90 50 10 2 -10-2 -10-2 l4 12 1.5 16 50 11.4 100 55 12 2 -12-1.51 -12-1.51 l 12 3 16 50 11.4 100 55 12 2 -12-31 -12-31 16 2 20 63 15.2 115 67 16 2 -16-21 -16-21 16 4 20 63 15.2 115 67 16 2 -16-41 -16-41 20 2 20 70 19 125 75 20 2 -20-21 -20-21 20 4 20 70 19 125 75 20 2 -20-41 -20-41 Shank tolerance h6 P standard XL JJ r Lc l3 d2 li i h6 de atton inch inch inch inch inch inch inch inch Z AH602881 R d 1/4 0.015 0.500 2.375 0.237 4.000 2.583 0.250 2 -1/4-0.015 Ik 5/16 0.015 0.500 2.375 0.297 4.500 2.937 0.375 2 -5/16-0.015 Dc d 3/8 0.015 0.563 2.500 0.356 4.500 2.937 0.375 2 -3/8-0.015 t LC T 1/2 0.020 0.625 4.000 0.475 6.000 4.217 0.500 2 -1/2-0.020 5/8 0.020 0.875 4.000 0.594 6.000 4.094 0.625 2 -5/8-0.020 l4 3/4 0.030 1.000 4.000 0.713 6.250 4.219 0.750 2 -3/4-0.030 E 182
