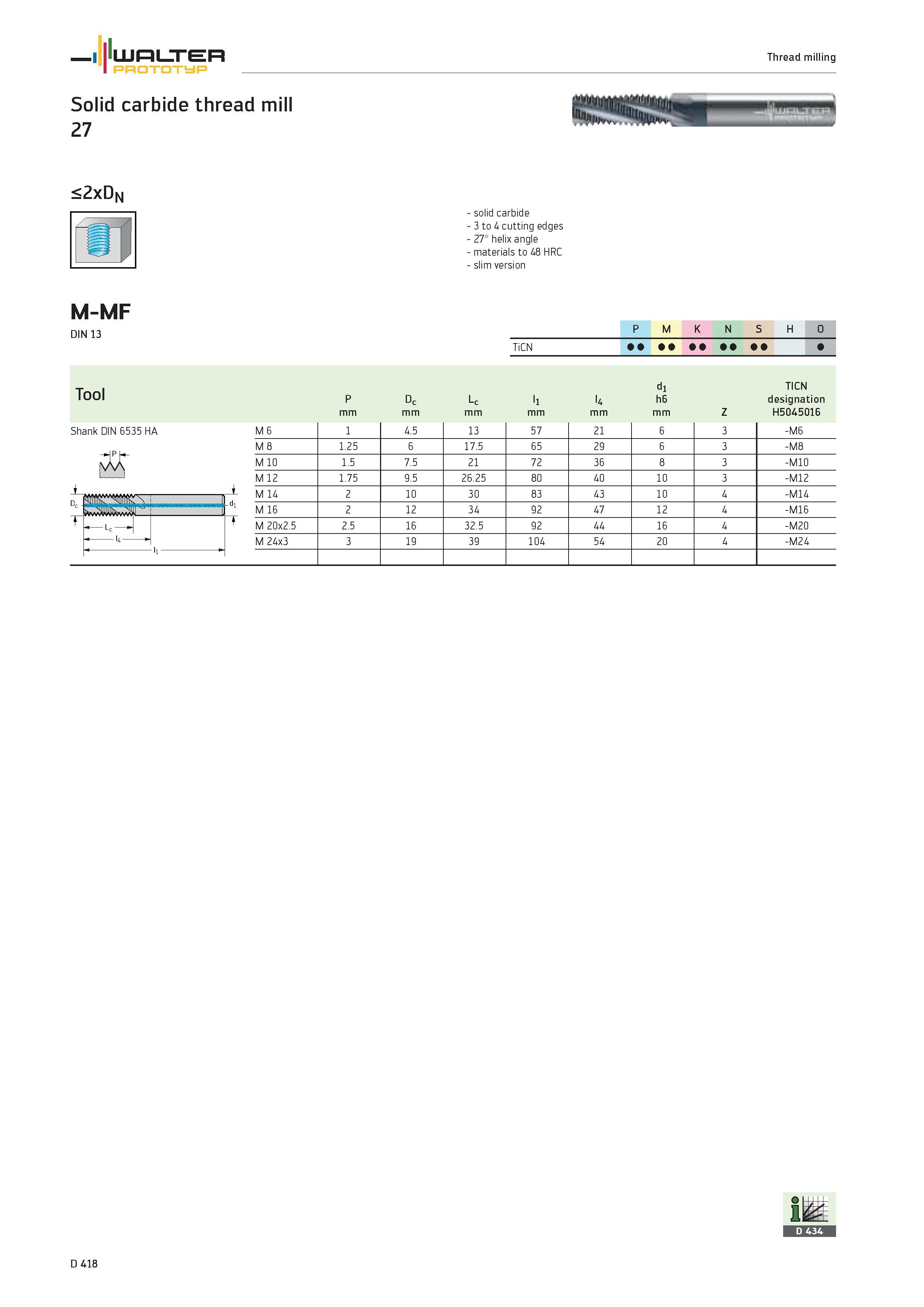

WALTER PROTOTYP Solid carbide thread 3ill 27 Thread 3illing <2xDn solid carbide 3 to 4 cutting edges 27° helix angle materials to 48 HRC slim version M-MF DIN 13 P M K N S H O TiCN Tool P 33 Dc 33 Lc 33 l1 33 l4 33 d1 h6 33 Z TICN designation H5045016 Shank DIN 6535 HA M 6 1 4.5 13 57 21 6 3 -M6 M 8 1.25 6 17.5 65 29 6 3 -M8 jvUC M 10 1.5 7.5 21 72 36 8 3 -M10 LLjLj M 12 1.75 9.5 26.25 80 40 10 3 -M12 jL wrirr 1 M 14 2 10 30 83 43 10 4 -M14 1 M 16 2 12 34 92 47 12 4 -M16 t T M 20x2.5 2.5 16 32.5 92 44 16 4 -M20 M 24x3 3 19 39 104 54 20 4 -M24 MilW
