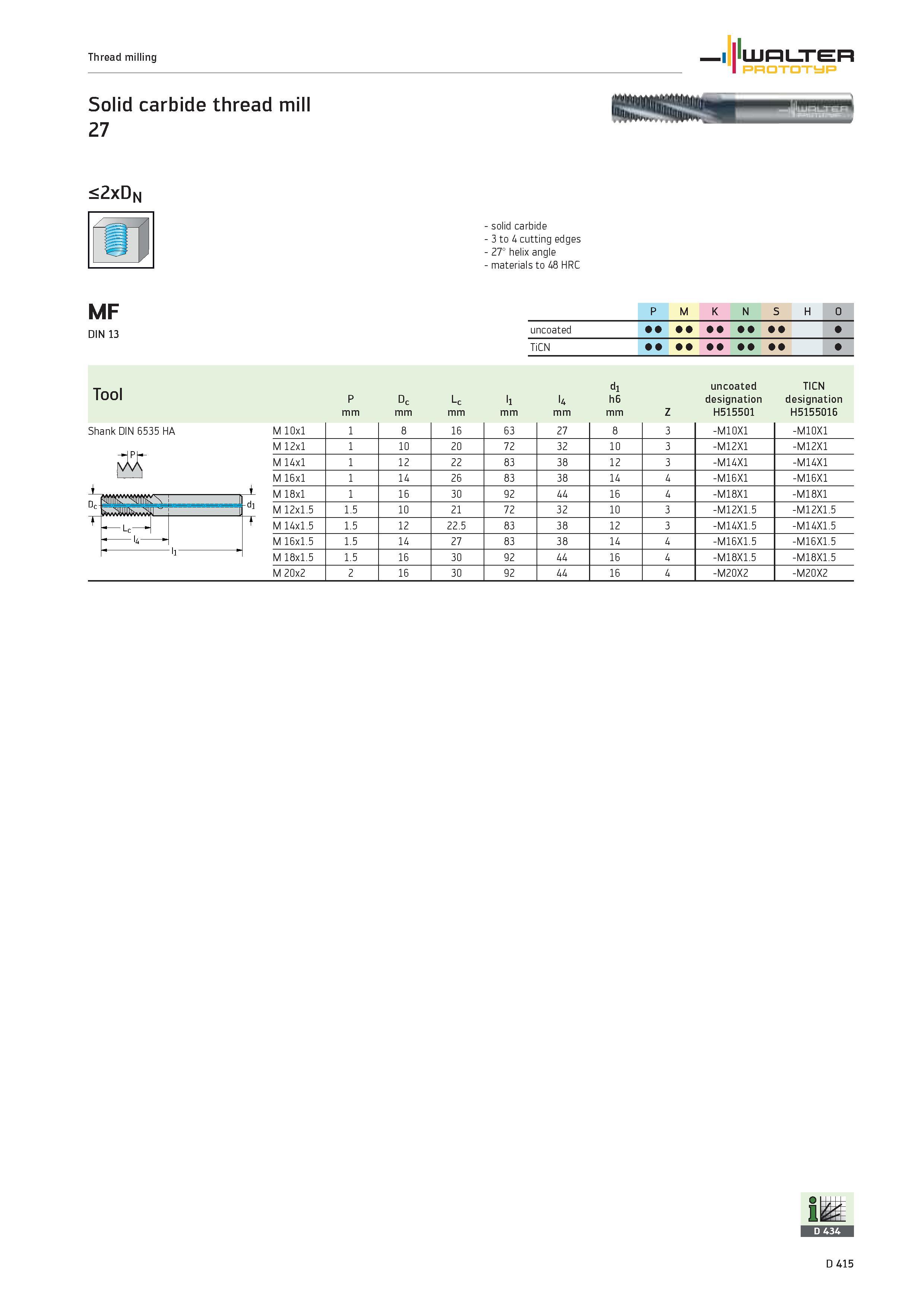

Thread milling WALTER PROTOTYP Solid carbide thread mill 27 <2xDN solid carbide 3 to 4 cutting edges 27° helix angle materials to 48 HRC MF 1 P M K N S H O DIN 13 uncoated TiCN Tool P mm Dc mm Lc mm l1 mm l4 mm d1 h6 mm Z uncoated designation H515501 TICN designation H5155016 Shank DIN 6535 HA M 10x1 1 8 16 63 27 8 3 -M10X1 -M10X1 M 12x1 1 10 20 72 32 10 3 -M12X1 -M12X1 M 14x1 1 12 22 83 38 12 3 -M14X1 -M14X1 L l M 16x1 1 14 26 83 38 14 4 -M16X1 -M16X1 M 18x1 1 16 30 92 44 16 4 -M18X1 -M18X1 Dc d1 M 12x1.5 1.5 10 21 72 32 10 3 -M12X1.5 -M12X1.5 Lc 4 T M 14x1.5 1.5 12 22.5 83 38 12 3 -M14X1.5 -M14X1.5 I4 M 16x1.5 1.5 14 27 83 38 14 4 -M16X1.5 -M16X1.5 l1 M 18x1.5 1.5 16 30 92 44 16 4 -M18X1.5 -M18X1.5 M 20x2 2 16 30 92 44 16 4 -M20X2 -M20X2
