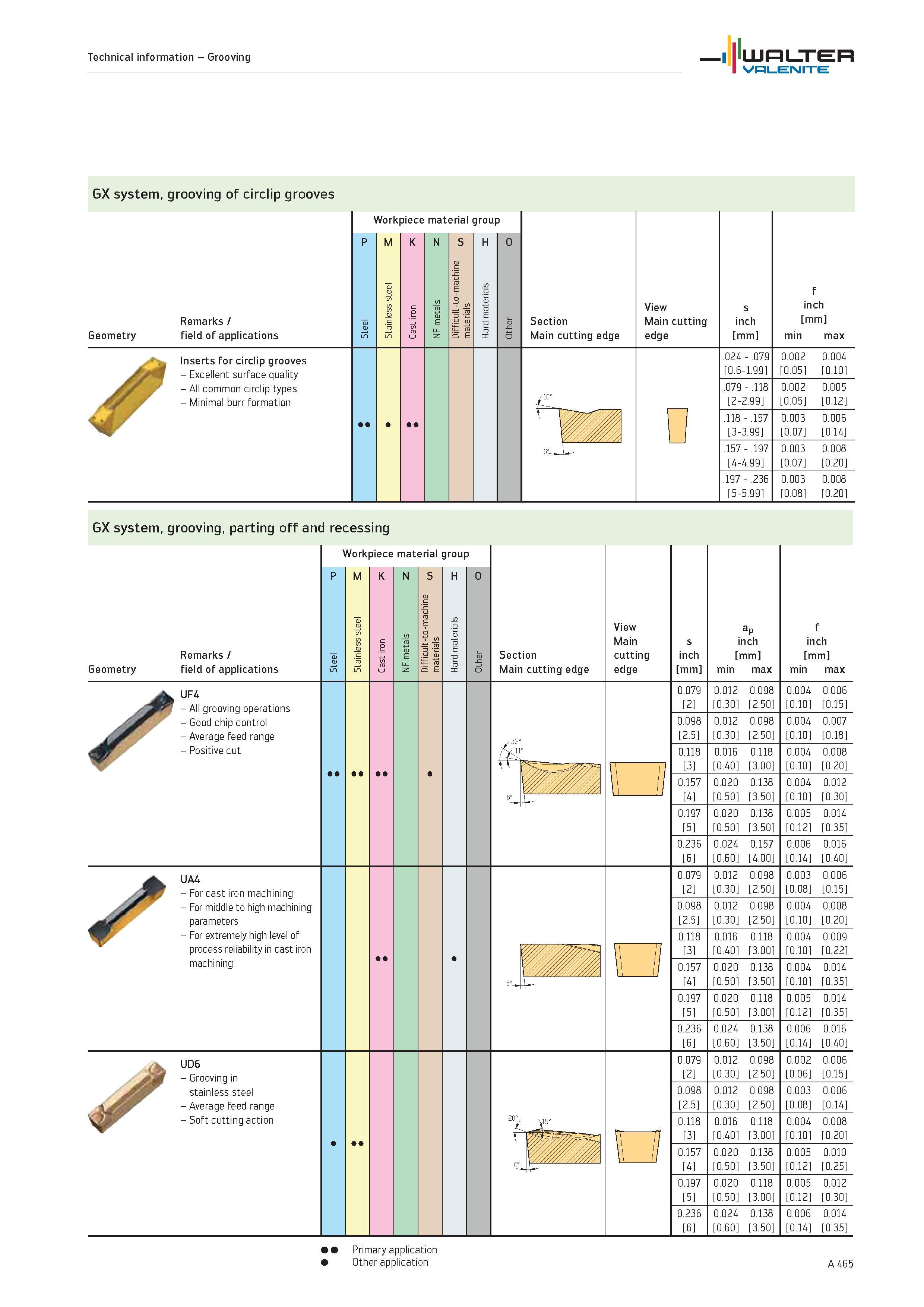

Grooving WALTER Valenite GX system, grooving of circlip grooves Geometry Remarks / field of applications Workpiece material group P M K N S H O Section Main cutting edge View Main cutting edge s inch mm f inch mm min max .024 .079 0.6-1.99 0.002 0.05 0.004 0.10 .079 .118 2-2.99 0.002 0.05 0.005 0.12 .118 .157 3-3.99 0.003 0.07 0.006 0.14 .157 .197 4-4.99 0.003 0.07 0.008 0.20 .197 .236 5-5.99 0.003 0.08 0.008 0.20 Inserts for circlip grooves Excellent surface quality All common circlip types Minimal burr formation GX system, grooving, parting off and recessing Workpiece material group K N S H O Geometry Remarks / field of applications Section Main cutting edge View Main cutting edge s inch mm ap inch mm n max f inch mm UF4 All grooving operations Good chip control Average feed range Positive cut 0.079 2 0.012 0.30 0.098 2.50 0.004 0.10 0.098 2.5 0.012 0.30 0.098 2.50 0.004 0.10 0.118 3 0.016 0.40 0.118 3.00 0.004 0.10 0.157 4 0.020 0.50 0.138 3.50 0.004 0.10 0.197 5 0.020 0.50 0.138 3.50 0.005 0.12 0.236 6 0.024 0.60 0.157 4.00 0.006 0.14 0.006 0.15 0.007 0.18 0.008 0.20 0.012 0.30 0.014 0.35 0.016 0.40 UA4 For cast iron machining For middle to high machining parameters For extremely high level of process reliability in cast iron machining 0.079 2 0.012 0.30 0.098 2.50 0.003 0.08 0.098 2.5 0.012 0.30 0.098 2.50 0.118 3 0.016 0.40 0.118 3.00 0.157 4 0.020 0.50 0.138 3.50 0.197 5 0.020 0.50 0.118 3.00 0.236 6 0.024 0.60 0.138 3.50 0.006 0.15 0.004 0.10 0.008 0.20 0.004 0.10 0.009 0.22 0.004 0.10 0.014 0.35 0.005 0.12 0.014 0.35 0.006 0.14 0.016 0.40 UD6 Grooving in stainless steel Average feed range Soft cutting action 0.079 2 0.012 0.30 0.098 2.50 0.002 0.06 0.098 2.5 0.012 0.30 0.098 2.50 0.118 3 0.016 0.40 0.118 3.00 0.157 4 0.020 0.50 0.138 3.50 0.197 5 0.020 0.50 0.118 3.00 0.236 6 0.024 0.60 0.138 3.50 0.006 0.15 0.003 0.08 0.006 0.14 0.004 0.10 0.008 0.20 0.005 0.12 0.010 0.25 0.005 0.12 0.012 0.30 0.006 0.14 0.014 0.35 max Primary application Other application A 465 Technical information
