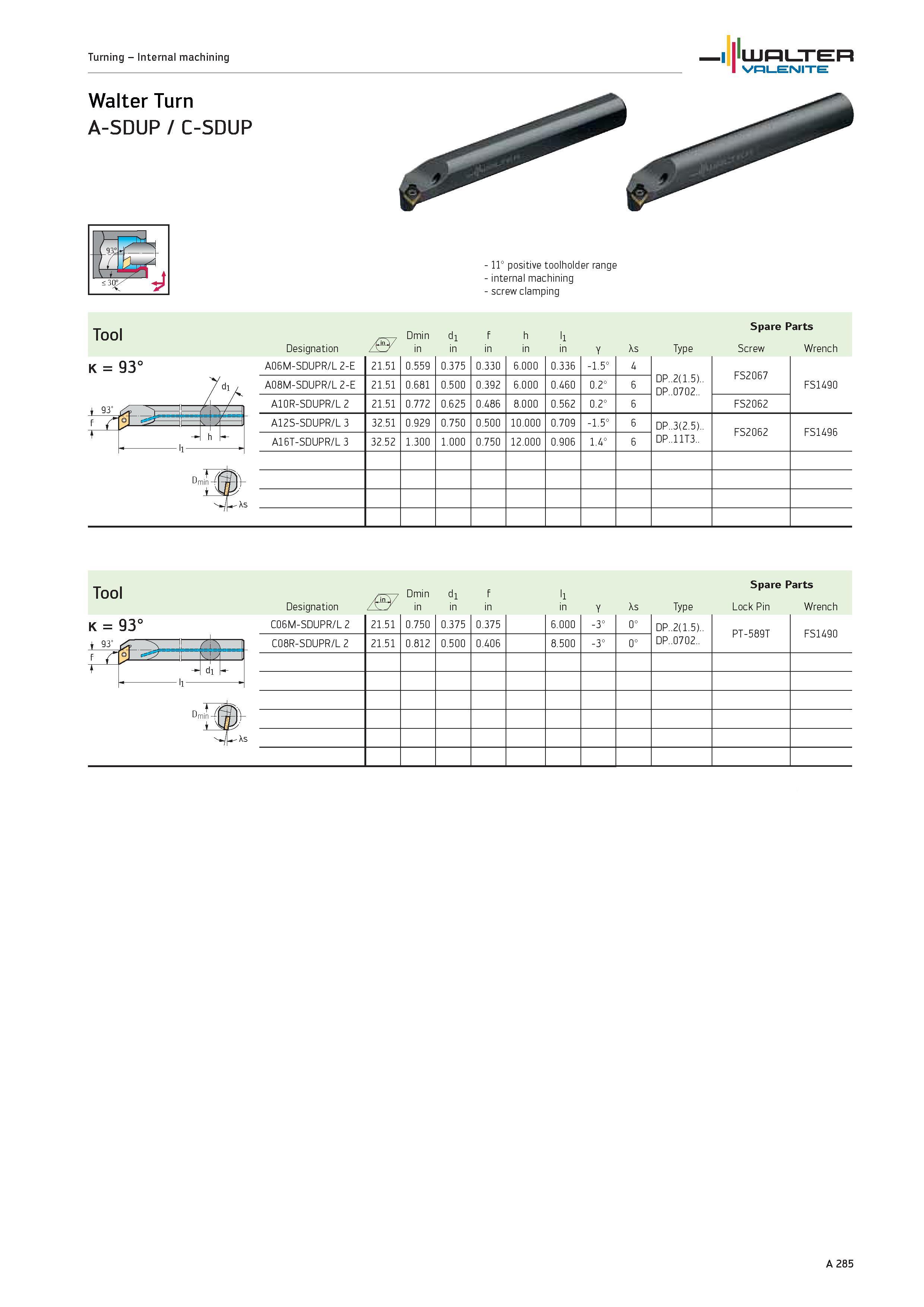

Turning Internal machining WALTER Valenite Walter Turn A-SDUP / C-SDUP 11° positive toolholder range internal machining screw clamping Tool d in mi D f h l1 Spare Parts Designation /S in Y Xs Type Screw Wrench k 93° A06M-SDUPR/L 2-E 21.51 0.559 0.375 0.330 6.000 0.336 -1.5° 4 1.0 .2.0 P.P. DD FS2067 FS1490 A08M-SDUPR/L 2-E 21.51 0.681 0.500 0.392 6.000 0.460 0.2° 6 A10R-SDUPR/L 2 21.51 0.772 0.625 0.486 8.000 0.562 0.2° 6 FS2062 A12S-SDUPR/L 3 32.51 0.929 0.750 0.500 10.000 0.709 -1.5° 6 Ln ro .3.1 P.P. DD FS2062 FS1496 A16T-SDUPR/L 3 32.52 1.300 1.000 0.750 12.000 0.906 1.4° 6 Tool k 93° 53' f W°J c= 1 ii di Designation Dmin d1 f Xs Type Spare Parts Lock Pin Wrench C06M-SDUPR/L 2 21.51 0.750 0.375 0.375 6.000 -3° 0° 1.0 .2.0 P.P. DD PT-589T FS1490 C08R-SDUPR/L 2 21.51 0.812 0.500 0.406 8.500 -3° 0° Y D A 285
