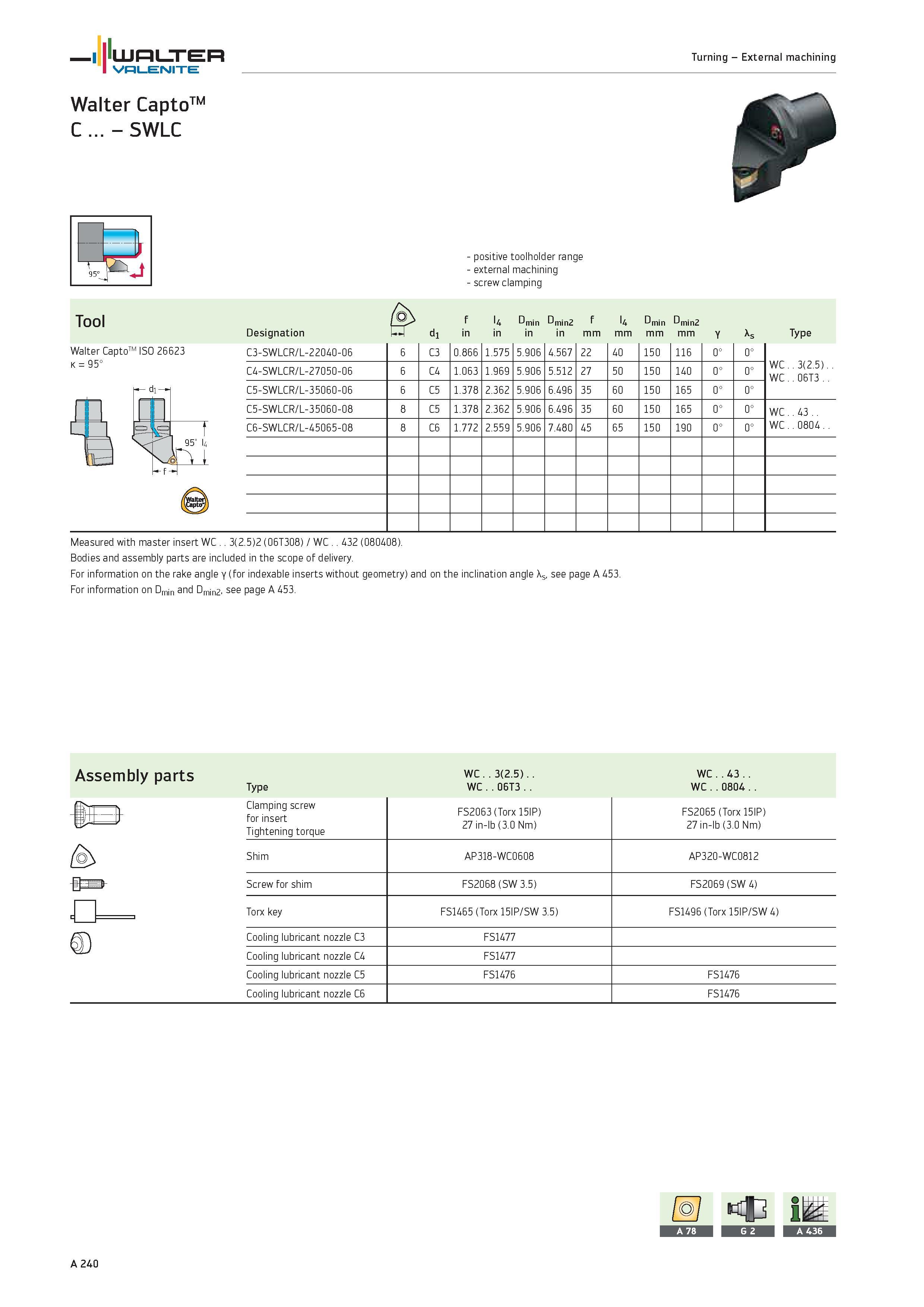

WALTER Valenite Turning External machining Walter CaptoTM C SWLC Walter CaptoTM ISO 26623 k 95° 95° I4 positive toolholder range external machining screw clamping Tool / > f l4 Dmin Dmin2 f l4 Dmin Dmin2 Designation tr di in mm y As Type C3-SWLCR/L-22040-06 6 C3 0.866 1.575 5.906 4.567 22 40 150 116 0° 0° WC 3(2.5) WC 06T3 C4-SWLCR/L-27050-06 6 C4 1.063 1.969 5.906 5.512 27 50 150 140 0° 0° C5-SWLCR/L-35060-06 6 C5 1.378 2.362 5.906 6.496 35 60 150 165 0° 0° C5-SWLCR/L-35060-08 8 C5 1.378 2.362 5.906 6.496 35 60 150 165 0° 0° WC 43 WC 0804 C6-SWLCR/L-45065-08 8 C6 1.772 2.559 5.906 7.480 45 65 150 190 0° 0° Measured with master insert WC 3(2.5)2 (06T308) / WC 432 (080408). Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. For information on Dmin and Dmin2, see page A 453. Assembly parts Type Clamping screw for insert Tightening torque Shim Screw for shim Torx key Cooling lubricant nozzle C3 Cooling lubricant nozzle C4 Cooling lubricant nozzle C5 Cooling lubricant nozzle C6 WC 3(2.5) WC 06T3 FS2063 (Torx 15IP) 27 in-lb (3.0 Nm) AP318-WC0608 FS2068 (SW 3.5) FS1465 (Torx 15IP/SW 3.5) FS1477 FS1477 FS1476 WC 43 WC 0804 FS2065 (Torx 15IP) 27 in-lb (3.0 Nm) AP320-WC0812 FS2069 (SW 4) FS1496 (Torx 15IP/SW 4) FS1476 FS1476 A 240
