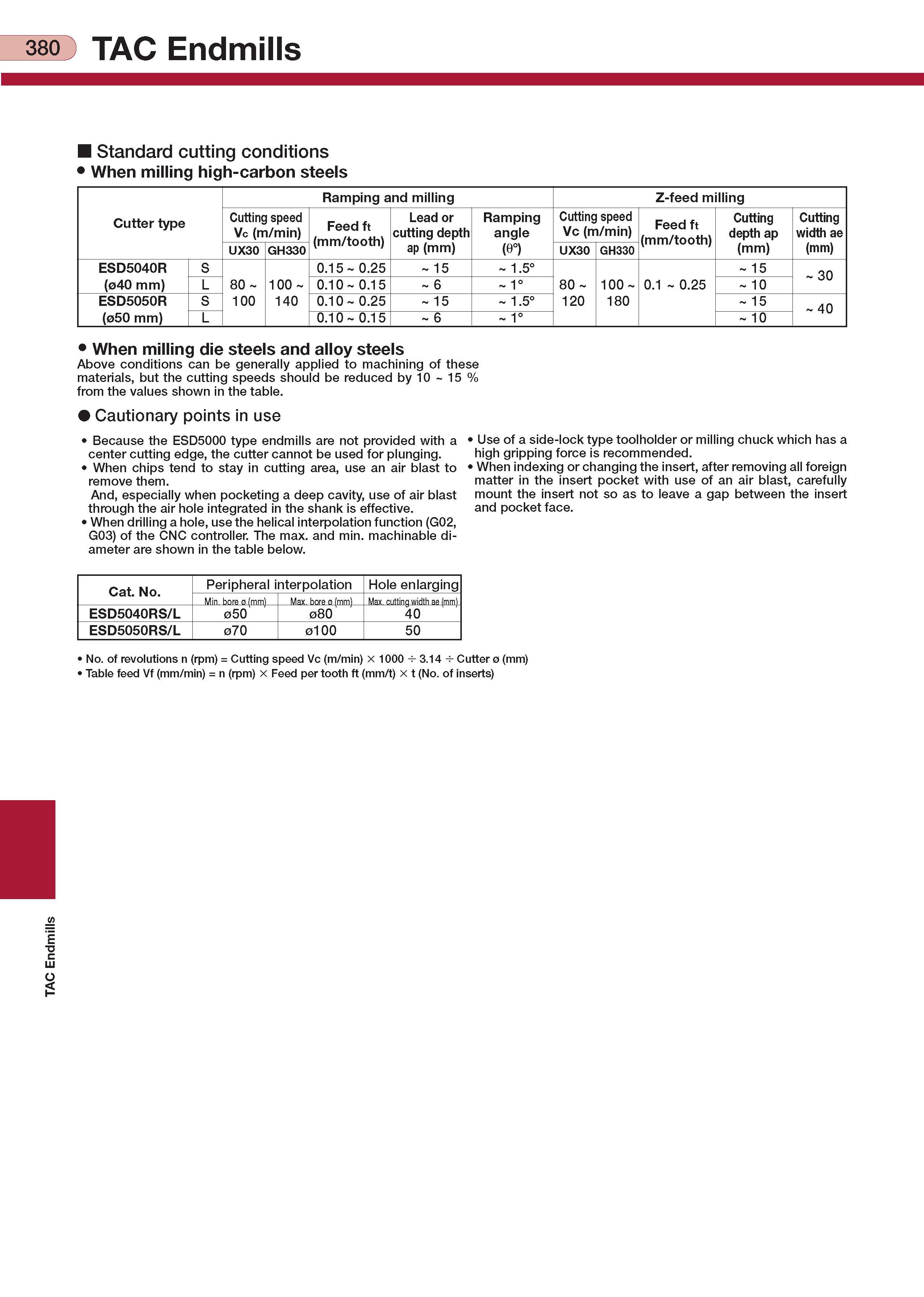

TAC Endmills Standard cutting conditions When milling high-carbon steels Cutter type Ramping and milling Z-feed milling Cutting speed Vc (m/min) Feed ft (mm tooth) Lead or cutting depth ap (mm) Ramping angle (0) Cutting speed Vc (m/min) Feed ft (mm tooth) Cutting depth ap (mm) Cutting width ae (mm) UX30 GH330 UX30 GH330 ESD5040R (o40 mm) S 80 100 100 140 0.15 0.25 15 1.5 80 120 100 180 0.1 0.25 15 30 L 0.10 0.15 6 1 10 ESD5050R (o50 mm) S 0.10 0.25 15 1.5 15 40 L 0.10 0.15 6 1 10 When milling die steels and alloy steels Above conditions can be generally applied to machining of these materials but the cutting speeds should be reduced by 10 15 from the values shown in the table. Cautionary points in use Because the ESD5000 type endmills are not provided with a center cutting edge the cutter cannot be used for plunging. When chips tend to stay in cutting area use an air blast to remove them. And especially when pocketing a deep cavity use of air blast through the air hole integrated in the shank is effective. When drilling a hole use the helical interpolation function (G02 G03) of the CNC controller. The max. and min. machinable diameter are shown in the table below. Cat. No. Peripheral interpolation Hole enlarging Max. bore 0 (mm) ESD5040RS L 050 080 40 ESD5050RS L 070 01 00 50 No. of revolutions n (rpm) Cutting speed Vc (m/min) x 1000 3.14 Cutter 0 (mm) Table feed Vf (mm/min) n (rpm) x Feed per tooth ft (mm t) x t (No. of inserts) Use of a side-lock type toolholder or milling chuck which has a high gripping force is recommended. When indexing or changing the insert after removing all foreign matter in the insert pocket with use of an air blast carefully mount the insert not so as to leave a gap between the insert and pocket face.
