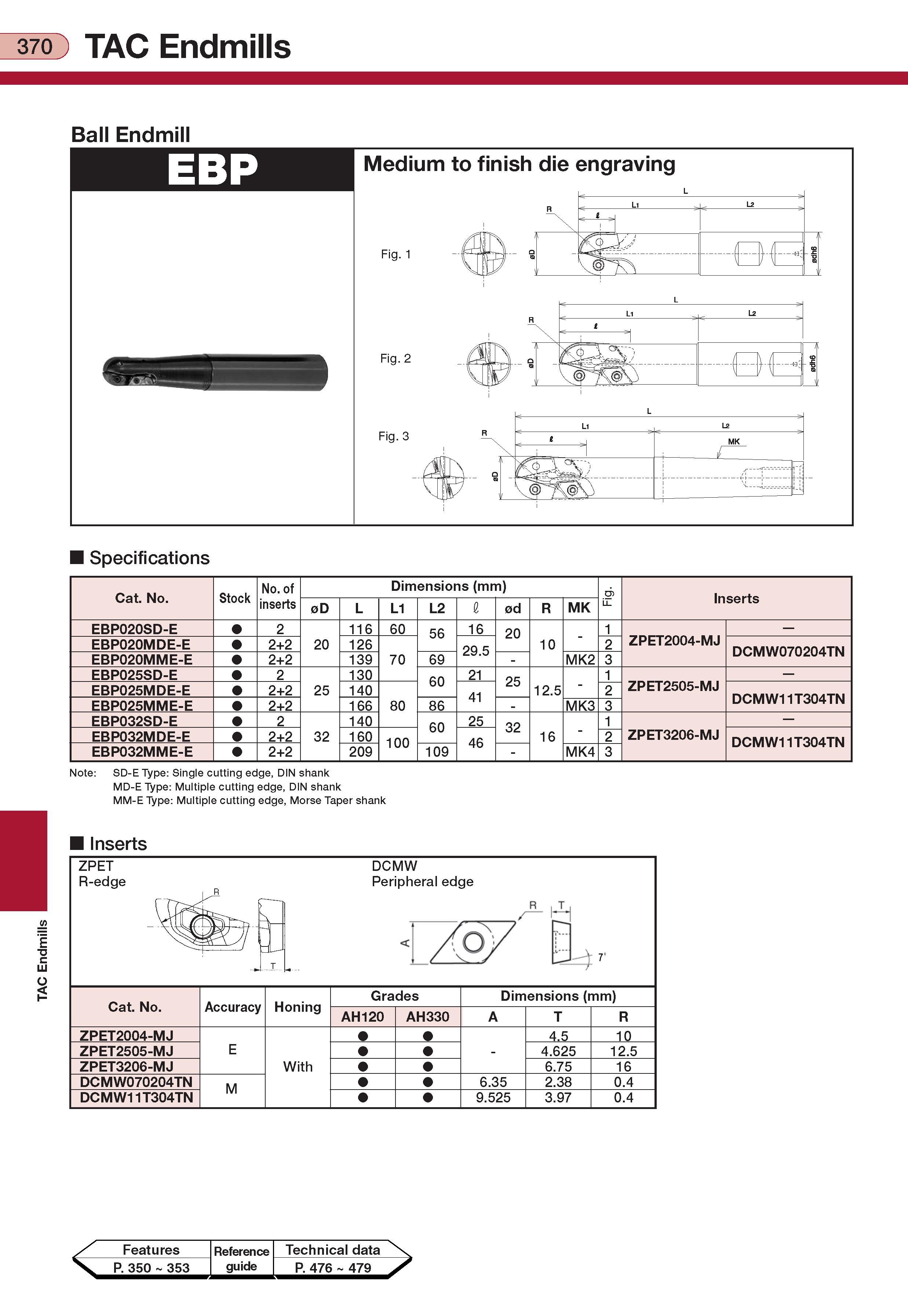

TAC Endmills Ball Endmill Specifications Cat. No. Stock No. of Dimensions (mm) u Inserts inserts 0D L L1 L2 r 0d R MK EBP020SD-E 2 116 60 56 16 20 1 ZPET2004-MJ EBP020MDE-E 2+2 20 126 29.5 10 2 DCMW070204TN EBP020MME-E 2+2 139 70 69 - MK2 3 EBP025SD-E 2 130 60 21 25 1 ZPET2505-MJ EBP025MDE-E 2+2 25 140 41 12.5 - 2 DCMW11T304TN EBP025MME-E 2+2 166 80 86 - MK3 3 EBP032SD-E 2 140 60 25 32 1 EBP032MDE-E 2+2 32 160 100 46 16 - 2 ZPET3206-MJ DCMW11T304TN EBP032MME-E 2+2 209 109 - MK4 3 Note SD-E Type Single cutting edge DIN shank MD-E Type Multiple cutting edge DIN shank MM-E Type Multiple cutting edge Morse Taper shank Inserts ZPET R-edge DCMW Peripheral edge 7' r Cat. No. Accuracy Honing Grades Dimensions (mm) AH120 AH330 A T R ZPET2004-MJ E With - 4.5 10 ZPET2505-MJ 4.625 12.5 ZPET3206-MJ 6.75 16 DCMW070204TN M 6.35 2.38 0.4 DCMW11T304TN 9.525 3.97 0.4 Features Reference Technical data P. 350 353 guide P. 476 479
