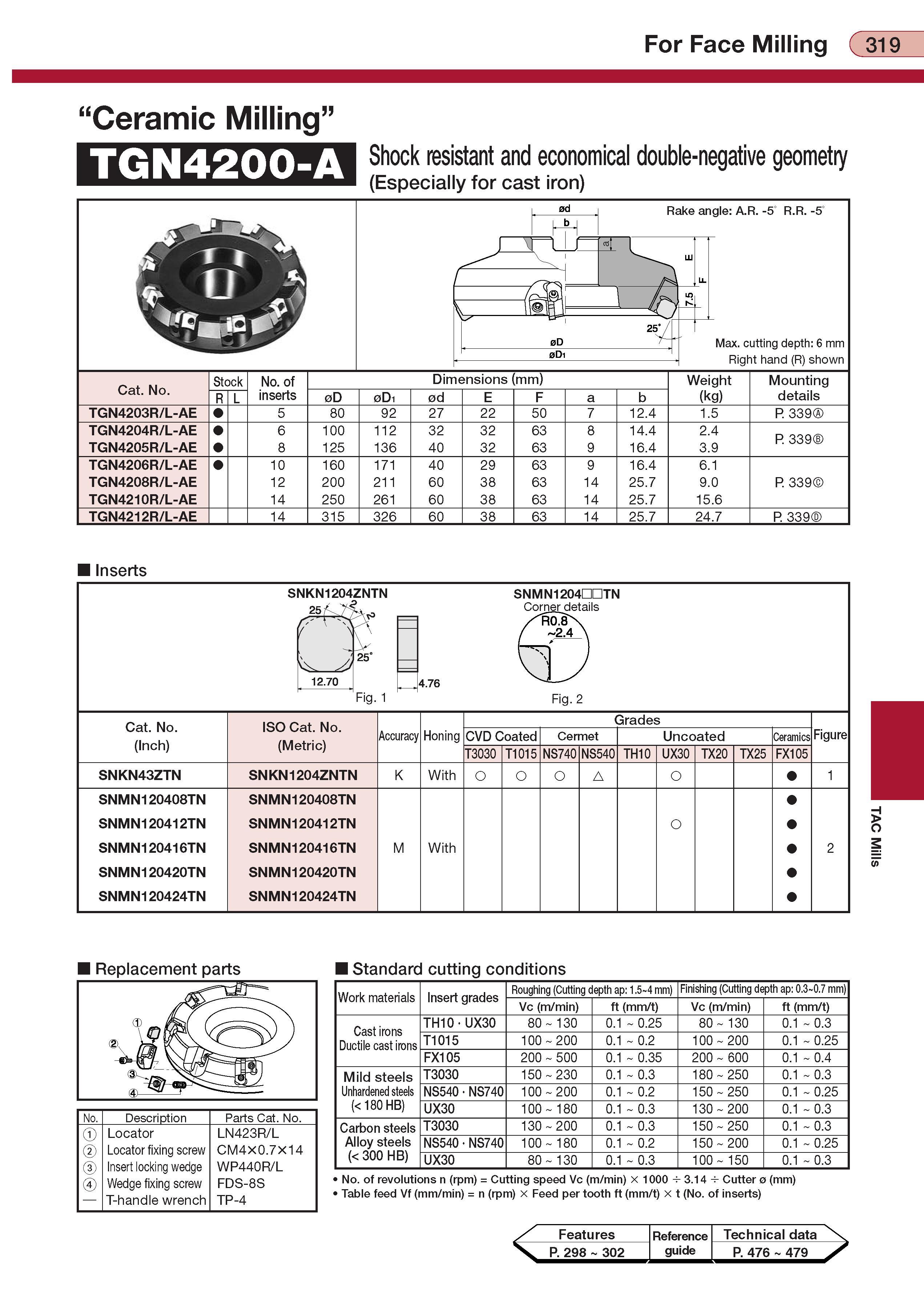

For Face Milling Ceramic Milling TGN4200-A Shock resistant and economical double-negative geometry (Especially for cast iron) u J Rake angle A.R. -5" R.R. -5" Max. cutting depth 6 mm Right hand (R) shown Cat. No. Stock No. of inserts Dimensions mm) Weight (kg) Mounting details R/L 0D 0D1 0d E F a b TGN4203R/L-AE 5 80 92 27 22 50 7 12.4 1.5 P 339 TGN4204R/L-AE 6 100 112 32 32 63 8 14.4 2.4 TGN4205R/L-AE 8 125 136 40 32 63 9 16.4 3.9 TGN4206R/L-AE 10 160 171 40 29 63 9 16.4 6.1 TGN4208R/L-AE 12 200 211 60 38 63 14 25.7 9.0 P 339 TGN4210R/L-AE 14 250 261 60 38 63 14 25.7 15.6 TGN4212R/L-AE 14 315 326 60 38 63 14 25.7 24.7 P 339 Inserts SNKN1204ZNTN 25 3 V1 L 2 25 12.70 4.76 Fig. 1 SNMN1204HDTN Corner details ''roIT' -2.4 VI Fig. 2 Cat. No. (Inch) ISO Cat. No. (Metric) Accuracy Honing Grades Figure CVD Coated Cermet Uncoated Ceramics T3030 T1015 NS740 NS540 TH10 UX30 TX20 TX25 FX105 SNKN43ZTN SNKN1204ZNTN K With A 1 SNMN120408TN SNMN120408TN SNMN120412TN SNMN120412TN SNMN120416TN SNMN120416TN M With 2 SNMN120420TN SNMN120420TN SNMN120424TN SNMN120424TN Replacement parts No. Description Parts Cat. No. Locator LN423R/L Locator fixing screw CM4X0.7X14 Insert locking wedge WP440R/L ( ) Wedge fixing screw FDS-8S T-handle wrench TP-4 Standard cutting conditions Work materials Insert grades Roughing (Cutting depth ap 1.5 4 mm) Finishing (Cutting depth ap 0.3 0.7 mm) Vc (m/min) ft (mm t) Vc (m/min) ft (mm t) Cast irons Ductile cast irons TH10 UX30 80 130 0.1 0.25 80 130 0.1 0.3 T1015 100 200 0.1 0.2 100 200 0.1 0.25 FX105 200 500 0.1 0.35 200 600 0.1 0.4 Mild steels Unhardened steels ( 180 HB) T3030 150 230 0.1 0.3 180 250 0.1 0.3 NS540 NS740 100 200 0.1 0.2 150 250 0.1 0.25 UX30 100 180 0.1 0.3 130 200 0.1 0.3 Carbon steels Alloy steels ( 300 HB) T3030 130 200 0.1 0.3 150 250 0.1 0.3 NS540 NS740 100 180 0.1 0.2 150 200 0.1 0.25 UX30 80 130 0.1 0.3 100 150 0.1 0.3 1 No. of revolutions n (rpm) Cutting speed Vc (m/min) x 1000 1 Table feed Vf (mm/min) n (rpm) x Feed per tooth ft (mm t) x 3.14 Cutter 0 (mm) t (No. of inserts) Features Reference Technical data P. 298 302 guide P. 476 479 TAC Mills
