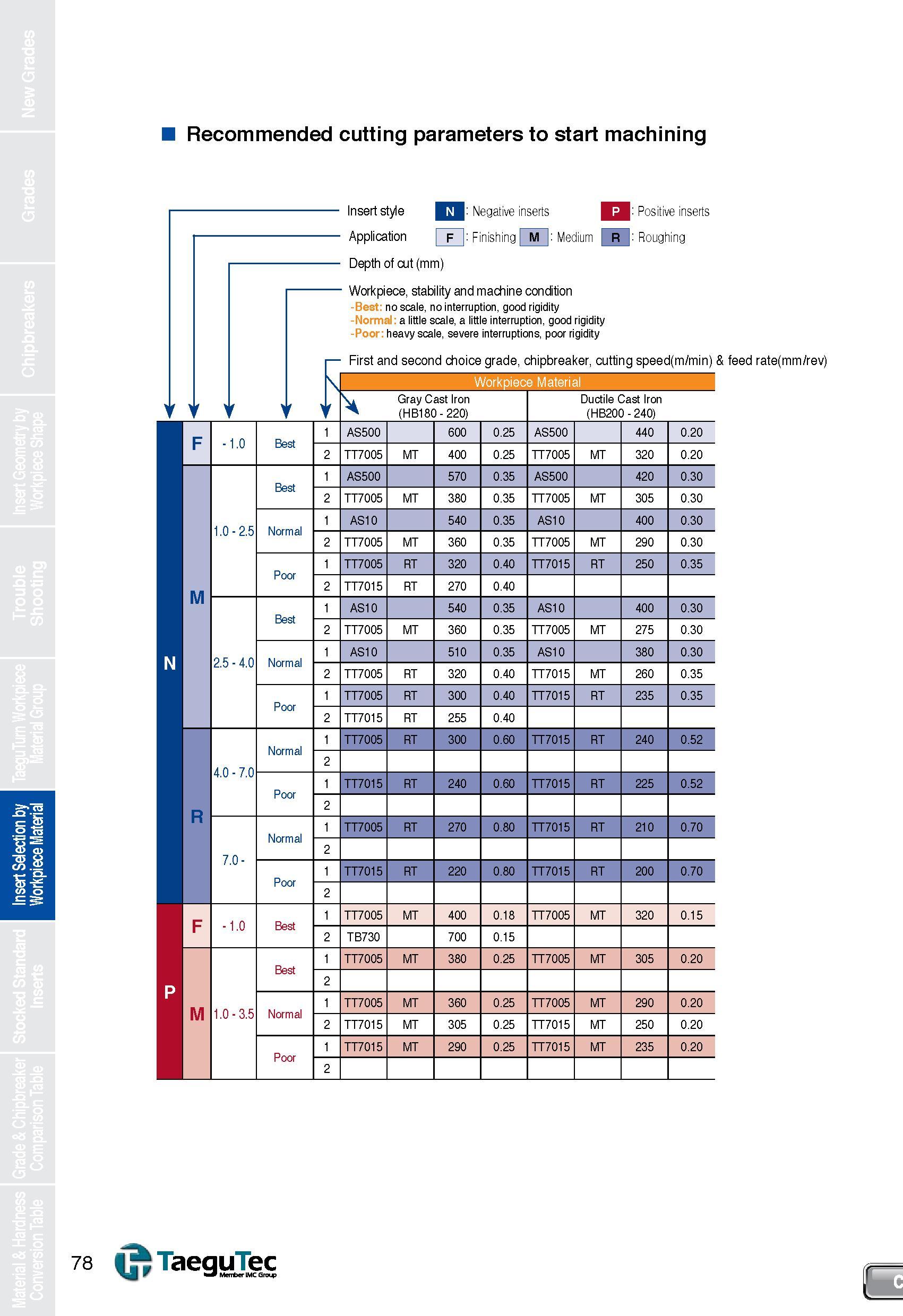

Recommended cutting parameters to start machining Insert style Negative inserts Positive inserts 1 Application F Finishing M Medium R Roughing Depth of cut (mm) Workpiece, stability and machine condition -Best: no scale, no interruption, good rigidity -Normal: a little scale, a little interruption, good rigidity -Poc heavy scale, severe interruptions, poor rigidity First and second choice grade, chipbreaker, cutting speed(m/min) & feed rate(mm/rev) I Workpiece Material Gray Cast Iron (HB180 - 220) F 1.0 Best 1 AS500 600 0.25 AS500 440 0.20 TT7005 MT 400 0.25 TT7005 MT 320 0.20 M 1.0 -2.5 Best 1 AS500 570 0.35 AS500 420 0.30 TT7005 MT 380 0.35 TT7005 MT 305 0.30 Normal 1 AS10 540 0.35 AS10 400 0.30 TT7005 MT 360 0.35 TT7005 MT 290 0.30 Poor 1 TT7005 RT 320 0.40 TT7015 RT 250 0.35 TT7015 RT 270 0.40 2.5 4.0 Best 1 AS10 540 0.35 AS10 400 0.30 TT7005 MT 360 0.35 TT7005 MT 275 0.30 Normal 1 AS10 510 0.35 AS10 380 0.30 TT7005 RT 320 0.40 TT7015 MT 260 0.35 Poor 1 TT7005 RT 300 0.40 TT7015 RT 235 0.35 TT7015 RT 255 0.40 R 4.0 7.0 Normal TT7005 RT 300 0.60 TT7015 RT 240 0.52 Poor TT7015 RT 240 0.60 TT7015 RT 225 0.52 7.0- Normal 1 TT7005 RT 270 0.80 TT7015 RT 210 0.70 Poor 1 TT7015 RT 220 0.80 TT7015 RT 200 0.70 F 1.0 Best 1 TT7005 MT 400 0.18 TT7005 MT 320 0.15 TB730 700 0.15 M 1.0 -3.5 Best 1 TT7005 MT 380 0.25 TT7005 MT 305 0.20 Normal 1 TT7005 MT 360 0.25 TT7005 MT 290 0.20 TT7015 MT 305 0.25 TT7015 MT 250 0.20 Poor 1 TT7015 MT 290 0.25 TT7015 MT 235 0.20 2 Ductile Cast Iron (HB200 - 240) TaeguTec W fc Men erlMCGrot4>
