76 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.76

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 76 0076 ENG Lab2u

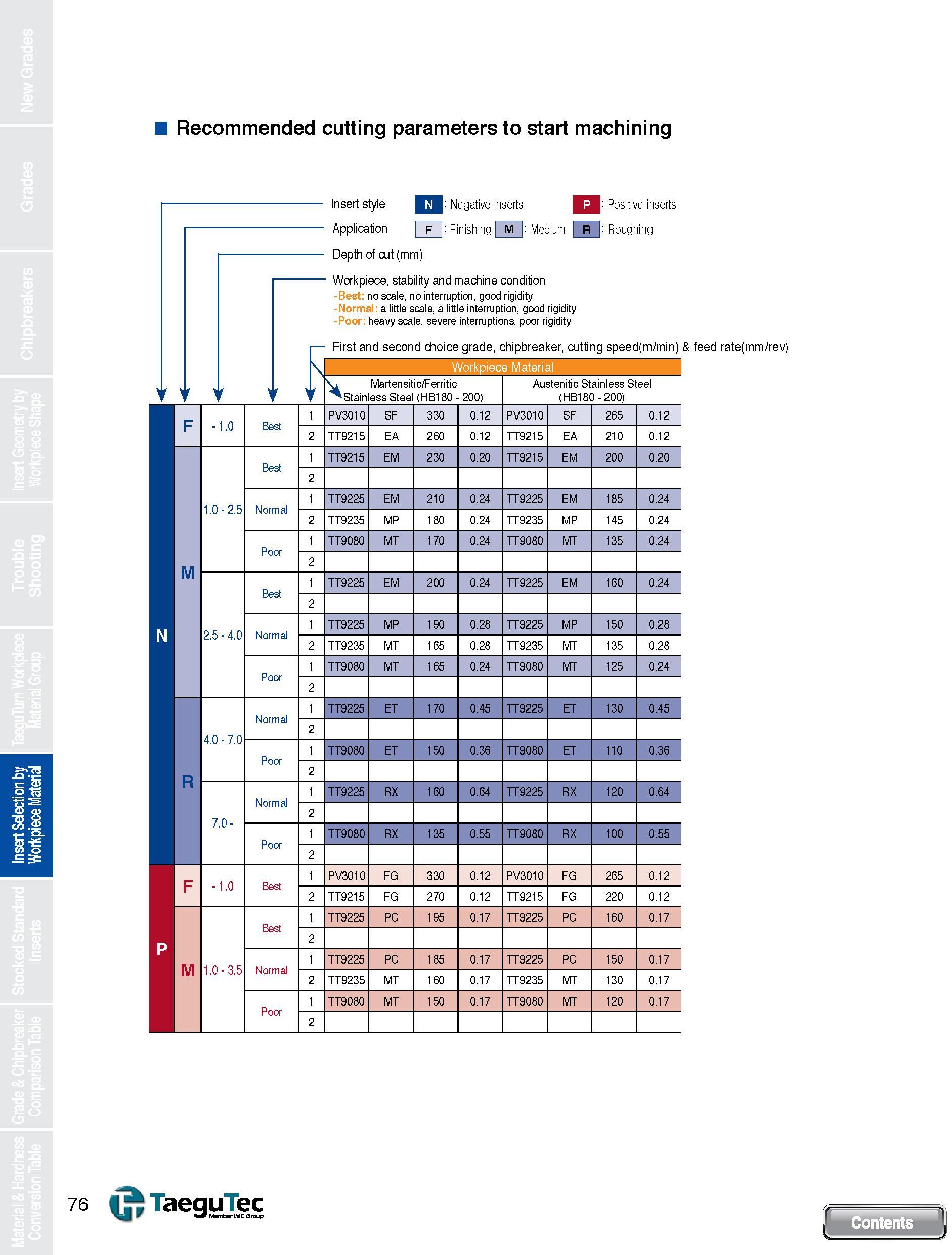

Insert Selection by Workpiece Material Recommended cutting parameters to start machining \f V Insert style Negative inserts Positive inserts 1 Application F Finishing M Medium R Roughing Depth of cut (mm) Workpiece, stability and machine condition -Best: no scale, no interruption, good rigidity -Normal: a little scale, a little interruption, good rigidity -Poc heavy scale, severe interruptions, poor rigidity First and second choice grade, chipbreaker, cutting speed(m/min) & feed rate(mm/rev) I Workpiece Material Marten sitic/Ferritic Stainless Steel (HB180 - 200) F 1.0 Best 1 PV3010 SF 330 0.12 PV3010 SF 265 0.12 TT9215 EA 260 0.12 TT9215 EA 210 0.12 M 1.0 -2.5 Best 1 TT9215 EM 230 0.20 TT9215 EM 200 0.20 Normal 1 TT9225 EM 210 0.24 TT9225 EM 185 0.24 TT9235 MP 180 0.24 TT9235 MP 145 0.24 Poor 1 TT9080 MT 170 0.24 TT9080 MT 135 0.24 2.5 4.0 Best 1 TT9225 EM 200 0.24 TT9225 EM 160 0.24 Normal 1 TT9225 MP 190 0.28 TT9225 MP 150 0.28 TT9235 MT 165 0.28 TT9235 MT 135 0.28 Poor 1 TT9080 MT 165 0.24 TT9080 MT 125 0.24 R 4.0 7.0 Normal 1 TT9225 ET 170 0.45 TT9225 ET 130 0.45 Poor 1 TT9080 ET 150 0.36 TT9080 ET 110 0.36 7.0- Normal 1 TT9225 RX 160 0.64 TT9225 RX 120 0.64 Poor 1 TT9080 RX 135 0.55 TT9080 RX 100 0.55 F 1.0 Best 1 PV3010 FG 330 0.12 PV3010 FG 265 0.12 TT9215 FG 270 0.12 TT9215 FG 220 0.12 M 1.0 -3.5 Best 1 TT9225 PC 195 0.17 TT9225 PC 160 0.17 Normal 1 TT9225 PC 185 0.17 TT9225 PC 150 0.17 TT9235 MT 160 0.17 TT9235 MT 130 0.17 Poor 1 TT9080 MT 150 0.17 TT9080 MT 120 0.17 2 Austenitic Stainless Steel (HB180 - 200) 76 TaeguTec V MMnrtxrlMCQroip
