18 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.18

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 18 0018 ENG Lab2u

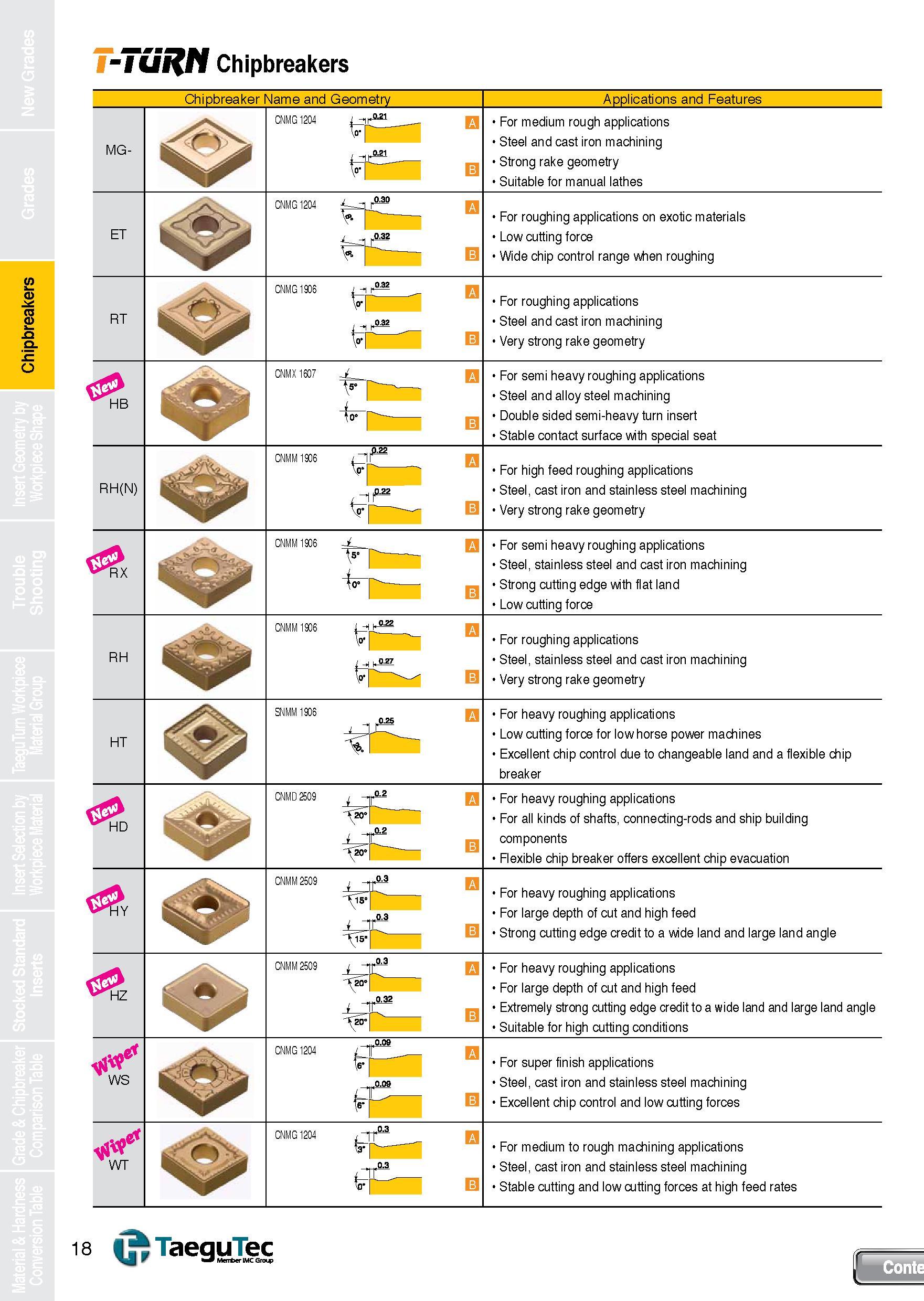

Chipbreakers T-TURN Chipbreakers Chipbreaker Name and Geometry Applications and Features MG- For medium rough applications Steel and cast iron machining Strong rake geometry Suitable for manual lathes For roughing applications on exotic materials Low cutting force Wide chip control range when roughing RT For roughing applications Steel and cast iron machining Very strong rake geometry HB For semi heavy roughing applications Steel and alloy steel machining Double sided semi-heavy turn insert Stable contact surface with special seat RH(N) CNMM 1906 vr For high feed roughing applications Steel, cast iron and stainless steel machining Very strong rake geometry RX CNMM 1906 For semi heavy roughing applications Steel, stainless steel and cast iron machining Strong cutting edge with flat land Low cutting force For roughing applications Steel, stainless steel and cast iron machining Very strong rake geometry For heavy roughing applications Low cutting force for low horse power machines Excellent chip control due to changeable land and a flexible chip breaker For heavy roughing applications For all kinds of shafts, connecting-rods and ship building components Flexible chip breaker offers excellent chip evacuation For heavy roughing applications For large depth of cut and high feed Strong cutting edge credit to a wide land and large land angle For heavy roughing applications For large depth of cut and high feed Extremely strong cutting edge credit to a wide land and large land angle Suitable for high cutting conditions WS For super finish applications Steel, cast iron and stainless steel machining Excellent chip control and low cutting forces (rP For medium to rough machining applications Steel, cast iron and stainless steel machining Stable cutting and low cutting forces at high feed rates 18 U, TaeguTec W fc Men rlMCGron>
