17 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.17

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 17 0017 ENG Lab2u

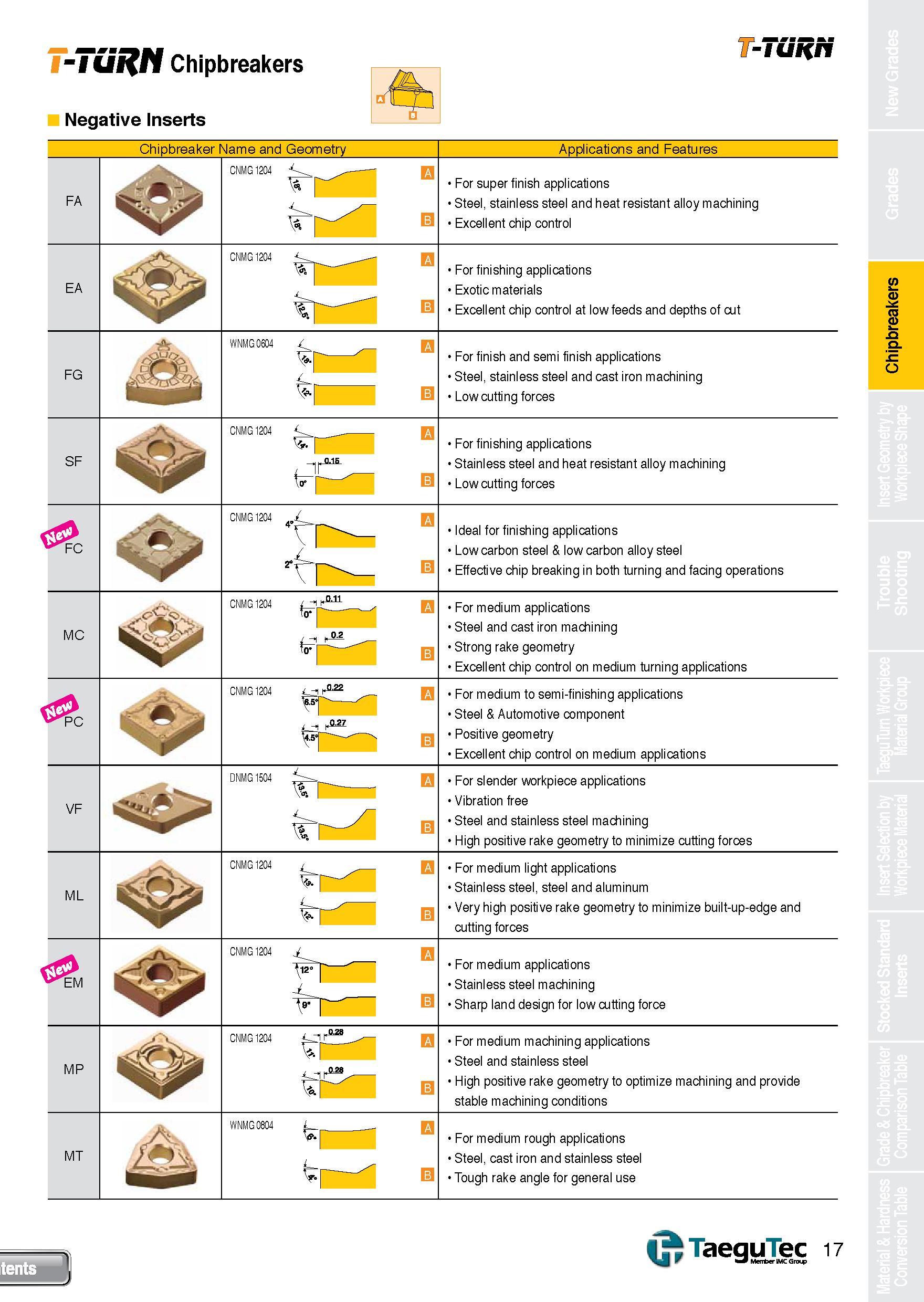

TURN Chipbreakers Negative Inserts T-TuRn Chipbreaker Name and Geometry Applications and Features FA CNMG 1204 For super finish applications Steel, stainless steel and heat resistant alloy machining Excellent chip control EA CNMG1204 j For finishing applications Exotic materials Excellent chip control at low feeds and depths of cut FG WNMG 0604 P" % For finish and semi finish applications Steel, stainless steel and cast iron machining Low cutting forces SF CNMG 1204 CNMG 1204 Ideal for finishing applications Low carbon steel & low carbon alloy steel Effective chip breaking in both turning and facing operations MC CNMG 1204 , For medium applications Steel and cast iron machining Strong rake geometry Excellent chip control on medium turning applications CNMG 1204 j_5 f = For medium to semi-finishing applications Steel & Automotive component Positive geometry Excellent chip control on medium applications VF DNMG 1504 srr— For slender workpiece applications Vibration free Steel and stainless steel machining High positive rake geometry to minimize cutting forces ML CNMG 1204 1 For medium light applications Stainless steel, steel and aluminum Very high positive rake geometry to minimize built-up-edge and cutting forces EM CNMG 1204 wr -'’ ‘9° p For medium applications Stainless steel machining Sharp land design for low cutting force MP 0 CNMG 1204 For medium machining applications Steel and stainless steel High positive rake geometry to optimize machining and provide stable machining conditions MT 4 WNMG 0804 For medium rough applications Steel, cast iron and stainless steel Tough rake angle for general use j U TaeguTec 17 W Mentjer IMC Grot Chipbreakers
