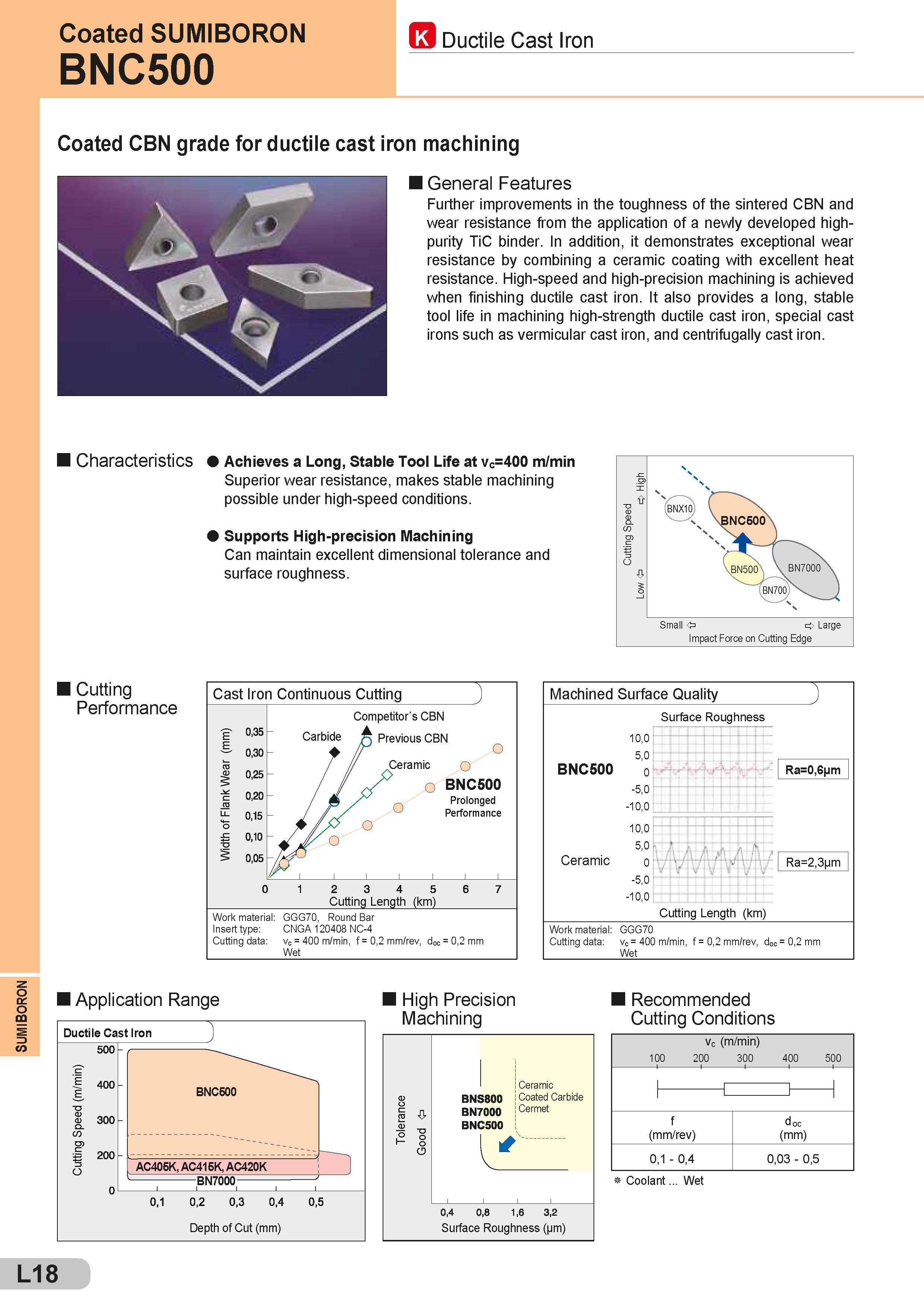

SUMIBORON Coated SUMIBORON BNC500 Ductile Cast Iron Coated CBN grade for ductile cast iron machining I General Features Further improvements in the toughness of the sintered CBN and wear resistance from the application of a newly developed high-purity TiC binder. In addition, it demonstrates exceptional wear resistance by combining a ceramic coating with excellent heat resistance. High-speed and high-precision machining is achieved when finishing ductile cast iron. It also provides a long, stable tool life in machining high-strength ductile cast iron, special cast irons such as vermicular cast iron, and centrifugally cast iron. I Characteristics Achieves a Long, Stable Tool Life at vc=400 m/min Superior wear resistance, makes stable machining possible under high-speed conditions. Supports High-precision Machining Can maintain excellent dimensional tolerance and surface roughness. I Cutting Performance Cast Iron Continuous Cutting J 0,35 0,30 ar 0,25 c 0,20 la i 0,15 o £ 0,10 S 0,05 Competitor's CBN Carbide Previous CBN f Ceramic o I o BNC500 /A Prolonged - / / -1 Performance 0 1 2 3 4 5 6 7 Cutting Length (km) Work material: GGG70, Round Bar Insert type: CNGA 120408 NC-4 Cutting data: vc = 400 m/min, f = 0,2 mm/rev, doc = 0,2 mm Wet Machined Surface Quality Ceramic Surface Roughness BNC500 10.0 5.0 0 -5,0 -10,0 10.0 5.0 0 -5,0 -10,0 Ra=0,6 m wmmm Cutting Length (km) Ra=2,3 jm Work material: GGG70 Cutting data: Vc = 400 m/min, f = 0,2 mm/rev, doc = 0,2 mm Wet Application Range High Precision Machining 1 Ceramic e BNS800 Coated Carbide n A BN7000 Cermet r- o O BNC500 I' 0,4 0,8 1,6 3,2 Surface Roughness (jm) Recommended Cutting Conditions 1 00 vc (m/min) 200 300 400 500 f (mm/rev) 0,1 - 0,4 k Coolant ... Wet d oc (mm) 0,03 - 0,5 L18
