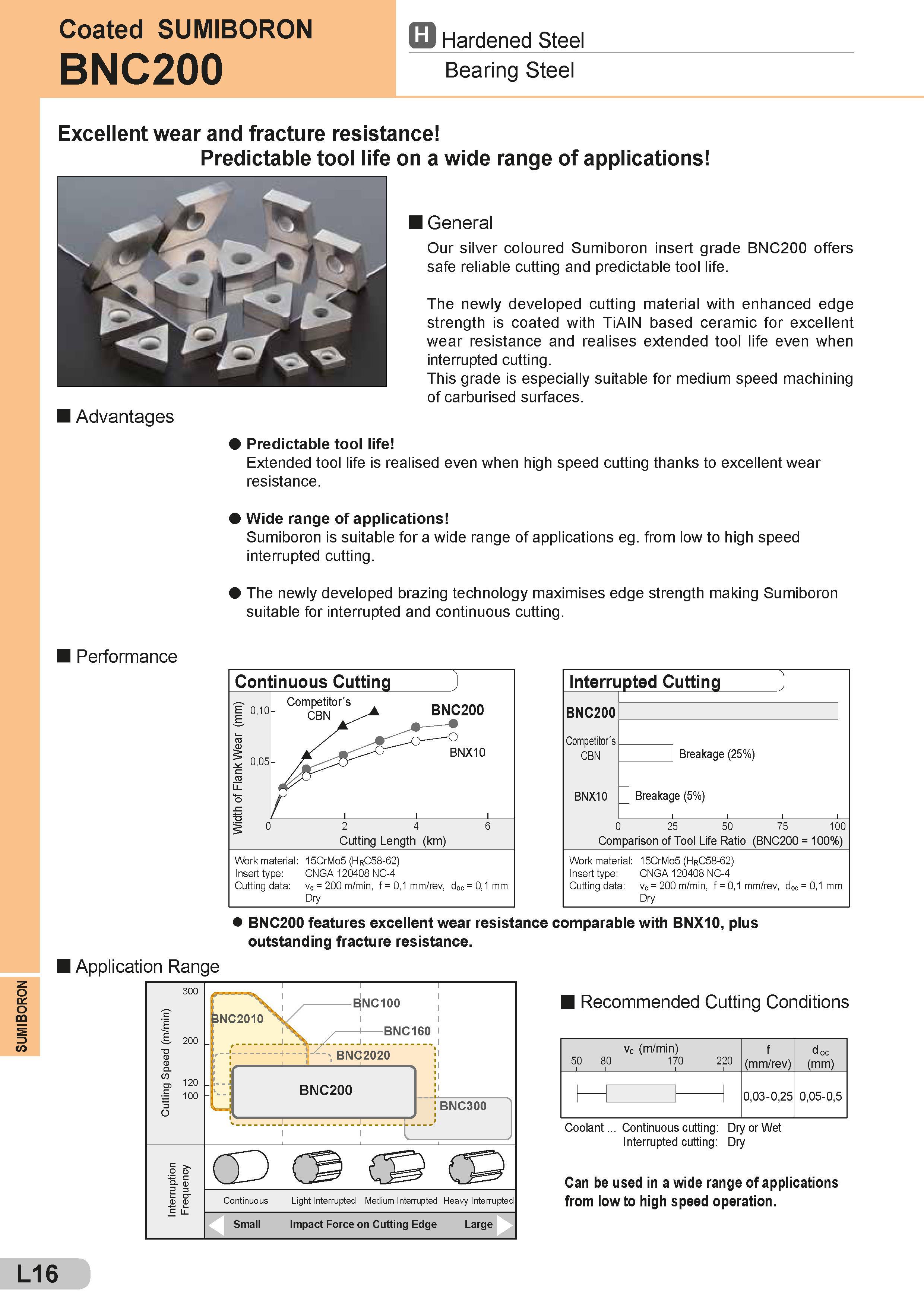

SUMIBORON Coated SUMIBORON BNC200 Hardened Steel Bearing Steel Excellent wear and fracture resistance Predictable tool life on a wide range of applications General Our silver coloured Sumiboron insert grade BNC200 offers safe reliable cutting and predictable tool life. The newly developed cutting material with enhanced edge strength is coated with TiAlN based ceramic for excellent wear resistance and realises extended tool life even when interrupted cutting. This grade is especially suitable for medium speed machining of carburised surfaces. Predictable tool life Extended tool life is realised even when high speed cutting thanks to excellent wear resistance. Wide range of applications Sumiboron is suitable for a wide range of applications eg. from low to high speed interrupted cutting. The newly developed brazing technology maximises edge strength making Sumiboron suitable for interrupted and continuous cutting. Advantages Performance Corn tinuous Cutting Interrupted Cutting J S' 0,10 (m ar Wea 2 0,05 nk TO Ll of th dt 0 - BNC200 BNC200 Competitor's CBN S BNX10 Breakage (25%) U Breakage (5%) . . . . t . . . BNX10 2 4 6 Cutting Length (km) 0 25 50 75 100 Comparison of Tool Life Ratio (BNC200 = 100%) Work material: 15CrMo5 (HrC58-62) Insert type: CNGA 120408 NC-4 Cutting data: vc = 200 m/min, f = 0,1 mm/rev, doc = 0,1 mm Dry Work material: 15CrMo5 (HrC58-62) Insert type: CNGA 120408 NC-4 Cutting data: vc = 200 m/min, f = 0,1 mm/rev, doc = 0,1 mm Dry Application Range BNC200 features excellent wear resistance comparable with BNX10, plus outstanding fracture resistance. Recommended Cutting Conditions vc (m/min) 50 80 170 220 f (mm/rev) d oc (mm) H 1 1 0,03-0,25 0,05-0,5 Coolant ... Continuous cutting: Dry or Wet Interrupted cutting: Dry Can be used in a wide range of applications from low to high speed operation. L16
