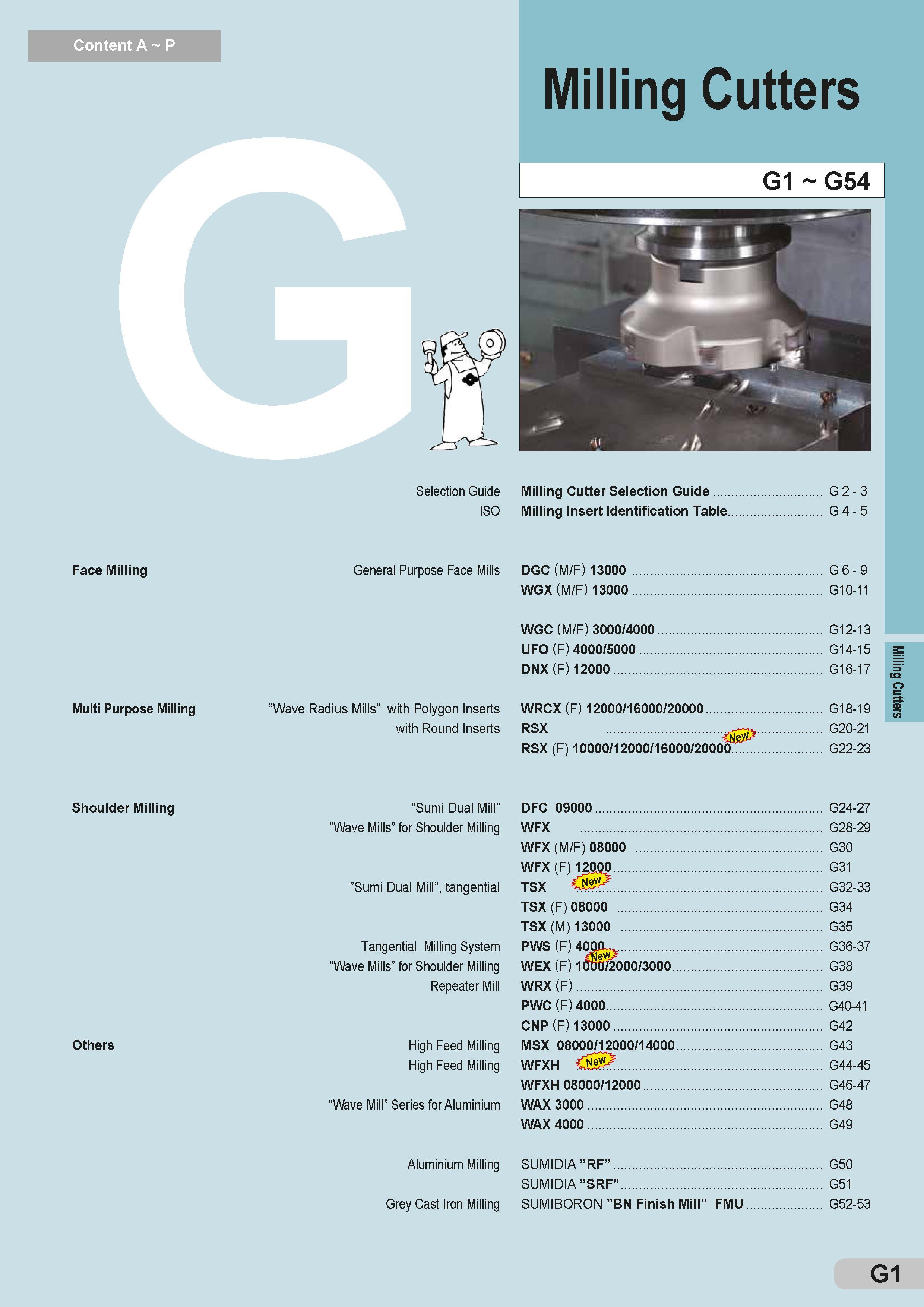

Content A P Face Milling Multi Purpose Milling Shoulder Milling Others ISO General Purpose Face Mills Milling Cutters G1 G54 Milling Cutter Selection Guide ... G 2 - 3 Milling Insert Identification Table .. G 4 - 5 DGC (M/F) 13000 . G 6 - 9 WGX (M/F) 13000 . G10-11 WGC (M/F) 3000/4000 . G12-13 UFO (F) 4000/5000 ... G14-15 DNX (F) 12000 ... G16-17 ”Wave Radius Mills” with Polygon Inserts WRCX (F) 12000/16000/20000 ... G18-19 with Round Inserts RSX iSd" ... G20-21 RSX (F) 10000/12000/16000/20000..e . G22-23 ”Sumi Dual Mill” DFC 09000 .. G24-27 ”Wave Mills” for Shoulder Milling WFX . G28-29 WFX (M/F) 08000 . G30 WFX (F) 12000 G31 ”Sumi Dual Mill”, tangential TSX ..N. G32-33 TSX (F) 08000 ... G34 TSX (M) 13000 ... G35 Tangential Milling System PWS (F) 4000.= ... G36-37 ”Wave Mills” for Shoulder Milling WEX (F) 1000/2000/3000 ... G38 Repeater Mill WRX (F) G39 PWC (F) 4000 . G40-41 CNP (F) 13000 G42 High Feed Milling MSX 08000/12000/14000 .. G43 High Feed Milling WFXH ...N .. G44-45 WFXH 08000/12000 G46-47 “Wave Mill” Series for Aluminium WAX 3000 ... G48 WAX 4000 G49 Aluminium Milling Grey Cast Iron Milling SUMIDIA ”RF” .. G50 SUMIDIA ”SRF” . G51 SUMIBORON ”BN Finish Mill” FMU G52-53 G1 Milling Cutters
