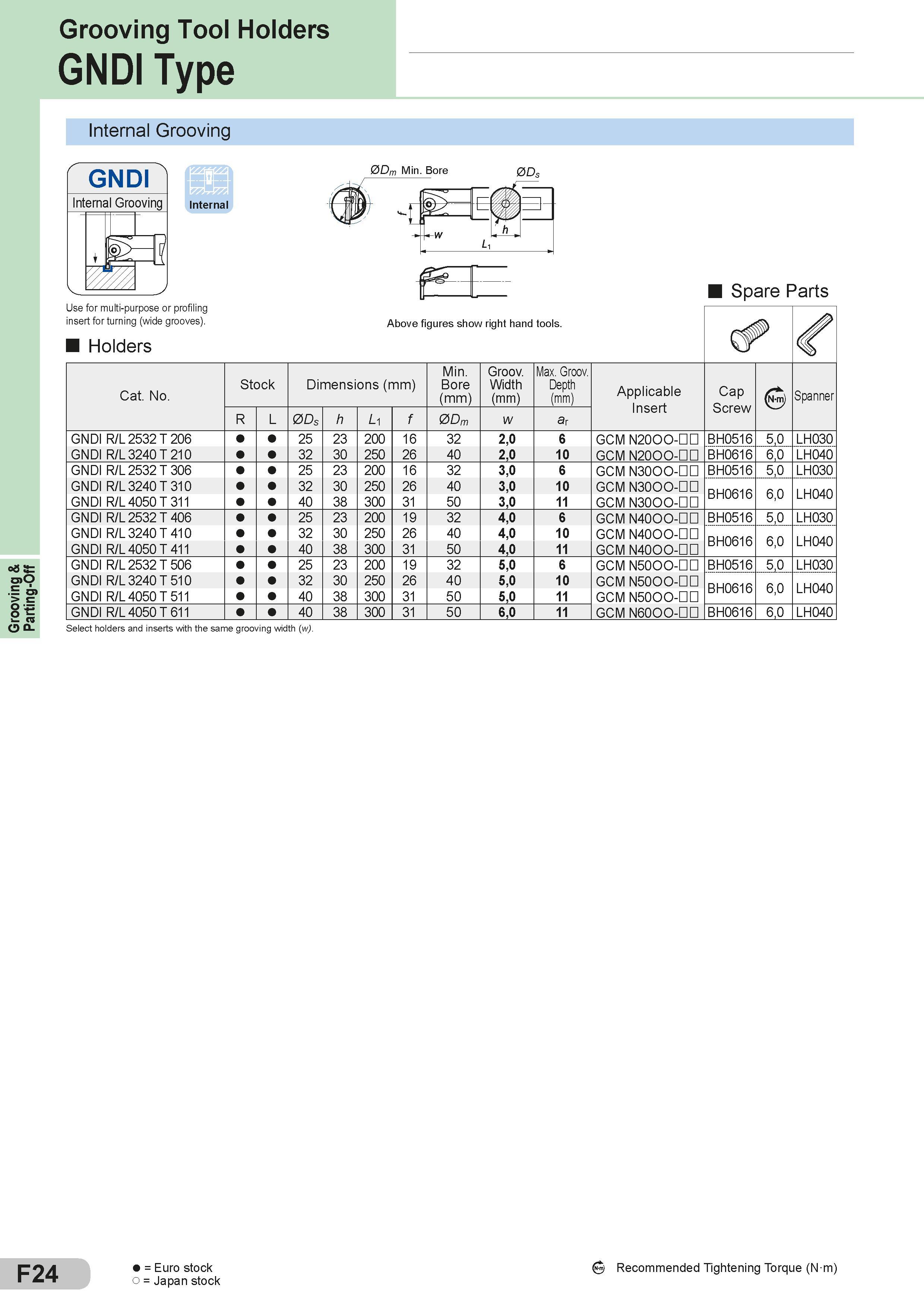

Grooving & Parting-Off Grooving Tool Holders GNDI Type Internal Grooving GNDI Internal Grooving iO 0Dm Min. Bore 0Ds Spare Parts Запасные части Sumitomo и комплектующие Use for multi-purpose or profiling nsert for turning (wide grooves). Above figures show right hand tools На эскизе сверху показано правое исполнение инструмента Holders % Cat. No. Stock Dimensions (mm) Размеры указаны в мм Min. Bore (mm) Groov. Width (mm) Max. Groov. Depth (mm) Applicable Insert Cap Screw Spanner R L 0Ds h L1 f 0Dm w ar GNDI R/L 2532 T 206 25 23 200 16 32 2,0 6 GCM N2000-m BH0516 5,0 LH030 GNDI R/L 3240 T 210 32 30 250 26 40 2,0 10 GCM N2000-M BH0616 6,0 LH040 GNDI R/L 2532 T 306 25 23 200 16 32 3,0 6 GCM N3000-M BH0516 5,0 LH030 GNDI R/L 3240 T 310 32 30 250 26 40 3,0 10 GCM N3000-M BH0616 6,0 LH040 GNDI R/L 4050 T 311 40 38 300 31 50 3,0 11 GCM N3000-M GNDI R/L 2532 T 406 25 23 200 19 32 4,0 6 GCM N4000-M BH0516 5,0 LH030 GNDI R/L 3240 T 410 32 30 250 26 40 4,0 10 GCM N4000-M BH0616 6,0 LH040 GNDI R/L 4050 T 411 40 38 300 31 50 4,0 11 GCM N4000-M GNDI R/L 2532 T 506 25 23 200 19 32 5,0 6 GCM N5000-M BH0516 5,0 LH030 GNDI R/L 3240 T 510 32 30 250 26 40 5,0 10 GCM N5000-M BH0616 6,0 LH040 GNDI R/L 4050 T 511 40 38 300 31 50 5,0 11 GCM N5000-M GNDI R/L 4050 T 611 40 38 300 31 50 6,0 11 GCM N6000-M BH0616 6,0 LH040 Select holders and inserts with the same grooving width (w). F24 = Euro stock o = Japan stock Recommended Tightening Torque (N m)
