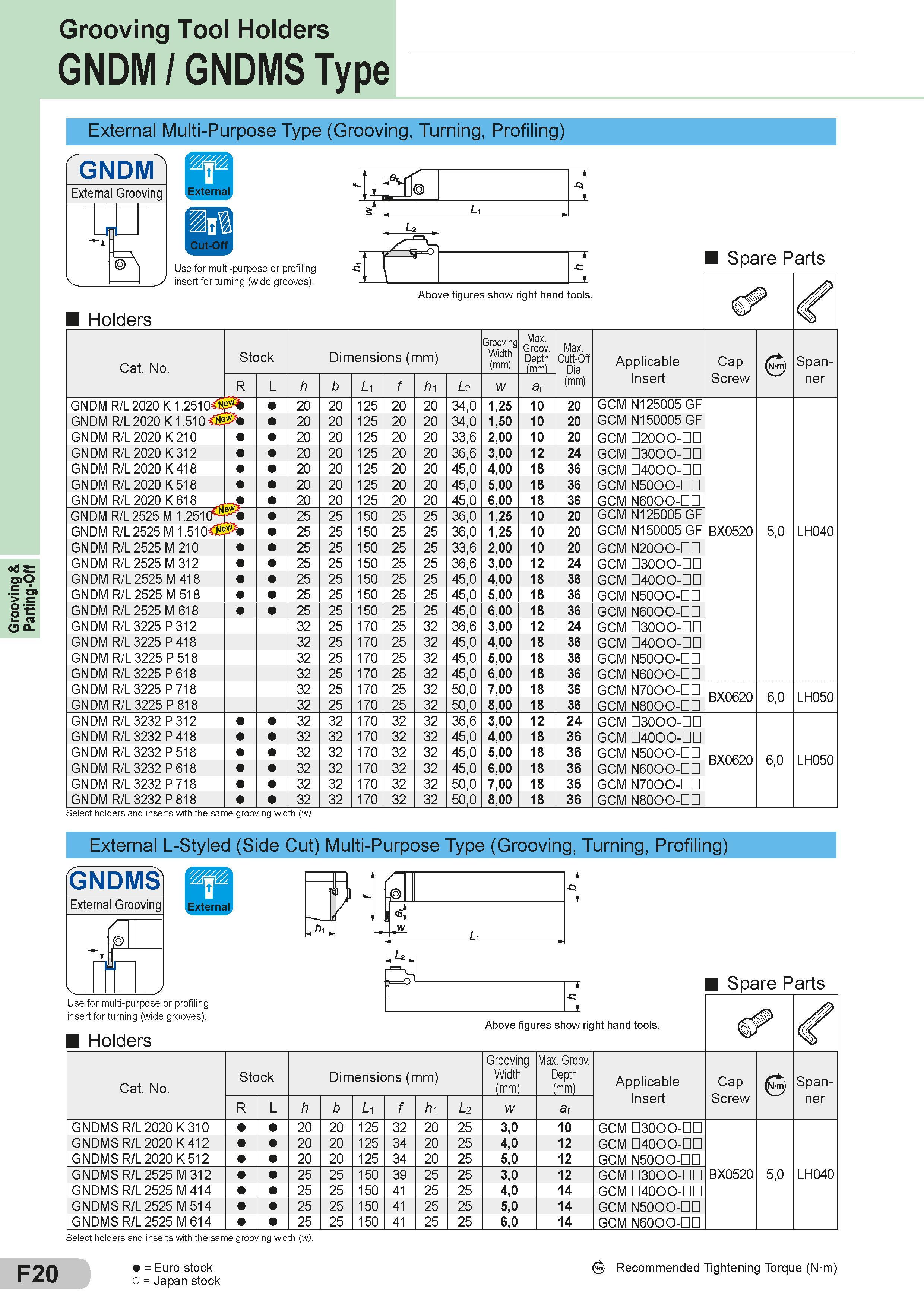

Grooving & Parting-Off Grooving Tool Holders GNDM / GNDMS Type F20 External Multi-Purpose Type (Grooving, Turning, Profiling) GNDM External Grooving L, 1 2 Use for multi-purpose or profiling insert for turning (wide grooves). Spare Parts Запасные части Sumitomo и комплектующие Above figures show right hand tools На эскизе сверху показано правое исполнение инструмента Holders Cat. No. Stock Dimensions (mm) Размеры указаны в мм Grooving Width (mm) Max. Groov. Depth (mm) Max. Cutt-Off Dia (mm) Applicable Insert R L h b L1 f h1 L2 w ar GNDM R/L 2020 K 1.2510 N Q'fi 20 20 125 20 20 34,0 1,25 10 20 GCM N125005 GF GNDM R/L 2020 K 1.510 w 20 20 125 20 20 34,0 1,50 10 20 GCM N150005 GF GNDM R/L 2020 K 210 20 20 125 20 20 33,6 2,00 10 20 GCM 2000- GNDM R/L 2020 K 312 20 20 125 20 20 36,6 3,00 12 24 GCM 3000- GNDM R/L 2020 K 418 20 20 125 20 20 45,0 4,00 18 36 GCM 4000- GNDM R/L 2020 K 518 20 20 125 20 20 45,0 5,00 18 36 GCM N5000- GNDM R/L 2020 K 618 20 20 125 20 20 45,0 6,00 18 36 GCM N6000- GNDM R/L 2525 M 1.2510 N 25 25 150 25 25 36,0 1,25 10 20 GCM N125005 GF GNDM R/L 2525 M 1.510 w 25 25 150 25 25 36,0 1,25 10 20 GCM N150005 GF GNDM R/L 2525 M 210 25 25 150 25 25 33,6 2,00 10 20 GCM N2000- GNDM R/L 2525 M 312 25 25 150 25 25 36,6 3,00 12 24 GCM 3000- GNDM R/L 2525 M 418 25 25 150 25 25 45,0 4,00 18 36 GCM 4000- GNDM R/L 2525 M 518 25 25 150 25 25 45,0 5,00 18 36 GCM N5000- GNDM R/L 2525 M 618 25 25 150 25 25 45,0 6,00 18 36 GCM N6000- GNDM R/L 3225 P 312 32 25 170 25 32 36,6 3,00 12 24 GCM 3000- GNDM R/L 3225 P 418 32 25 170 25 32 45,0 4,00 18 36 GCM 4000- GNDM R/L 3225 P 518 32 25 170 25 32 45,0 5,00 18 36 GCM N5000- GNDM R/L 3225 P 618 32 25 170 25 32 45,0 6,00 18 36 GCM N6000- GNDM R/L 3225 P 718 32 25 170 25 32 50,0 7,00 18 36 GCM N7000- GNDM R/L 3225 P 818 32 25 170 25 32 50,0 8,00 18 36 GCM N8000- GNDM R/L 3232 P 312 32 32 170 32 32 36,6 3,00 12 24 GCM 3000- GNDM R/L 3232 P 418 32 32 170 32 32 45,0 4,00 18 36 GCM 4000- GNDM R/L 3232 P 518 32 32 170 32 32 45,0 5,00 18 36 GCM N5000- GNDM R/L 3232 P 618 32 32 170 32 32 45,0 6,00 18 36 GCM N6000- GNDM R/L 3232 P 718 32 32 170 32 32 50,0 7,00 18 36 GCM N7000- GNDM R/L 3232 P 818 32 32 170 32 32 50,0 8,00 18 36 GCM N8000- Cap Screw Span- ner 13X0520 5,0 LH040 13X0620 6,0 LH050 3X0620 6,0 LH050 Select holders and inserts with the same grooving width (w). External L-Styled (Side Cut) Multi-Purpose Type (Grooving, Turning, Profiling) GNDMS External Grooving j J ot Use for multi-purpose or profiling insert for turning (wide grooves). Holders Spare Parts Запасные части Sumitomo и комплектующие Above figures show right hand tools На эскизе сверху показано правое исполнение инструмента Cat. No. Stock Dimensions (mm) Размеры указаны в мм b L1 h1 L2 Grooving Width (mm) w Max. Groov. De pth (mm) Applicable Insert Cap Screw Span- ner GNDMS R/L 2020 K 310 GNDMS R/L 2020 K 412 GNDMS R/L 2020 K 512 GNDMS R/L 2525 M 312 GNDMS R/L 2525 M 414 GNDMS R/L 2525 M 514 GNDMS R/L 2525 M 614 20 20 20 20 20 20 125 125 125 32 34 34 20 20 20 25 25 25 3.0 4.0 5.0 10 12 12 GCM 3000- GCM 4000-m GCM N5000- 25 25 25 25 25 25 25 25 150 150 150 150 39 41 41 41 25 25 25 25 25 25 25 25 3.0 4.0 5.0 6.0 12 14 14 14 GCM 3000-m GCM 4000-m GCM N5000- GCM N6000- BX0520 5,0 LH040 Select holders and inserts with the same grooving width (w). = Euro stock o = Japan stock Recommended Tightening Torque (N m) R h a
