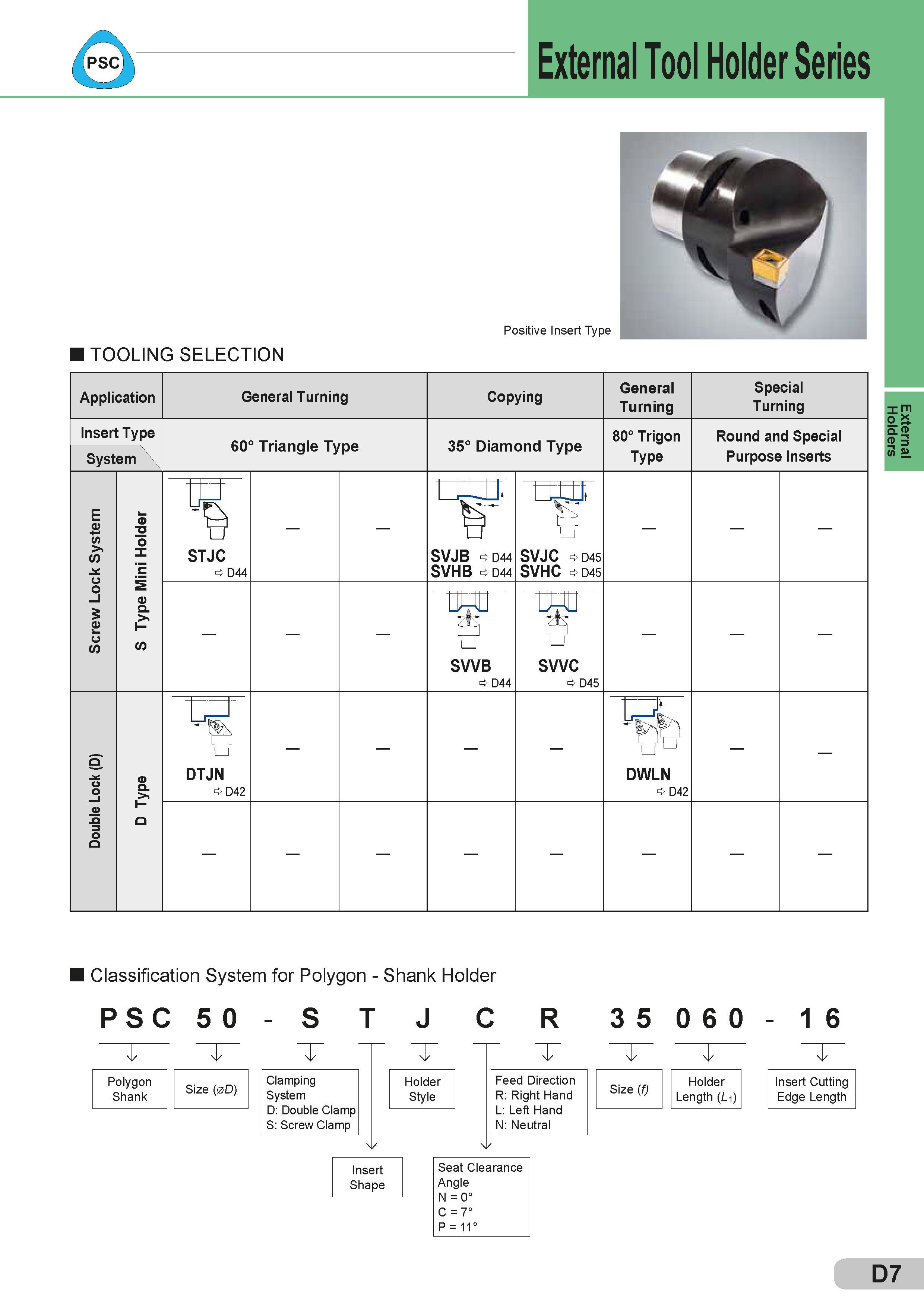

External Tool Holder Series Positive Insert Type TOOLING SELECTION Application General Turning Copying General Turning Special Turning Insert Type 60° Triangle Type 35° Diamond Type 80° Trigon Type Round and Special Purpose Inserts System \ Screw Lock System S Type Mini Holder uj STJC a D44 D t SVJB a D44 SVHB a D44 SVJC a D45 SVHC a D45 wn & u SVVB a D44 Fl u SVVC a D45 Double Lock (D) D Type u DTJN a D42 L','L 'tfS DWLN a D42 Classification System for Polygon - Shank Holder PSC50 - S T J C R T" T X T T Polygon Shank Size (0D) Clamping System D: Double Clamp S: Screw Clamp Holder Style Feed Direction R: Right Hand L: Left Hand N: Neutral 3 5 0 6 0 - 16 T T T Size (f) Holder Length (Li) Insert Cutting Edge Length Insert Shape Seat Clearance Angle N = 0° C = 7° P = 11° D7 External Holders
