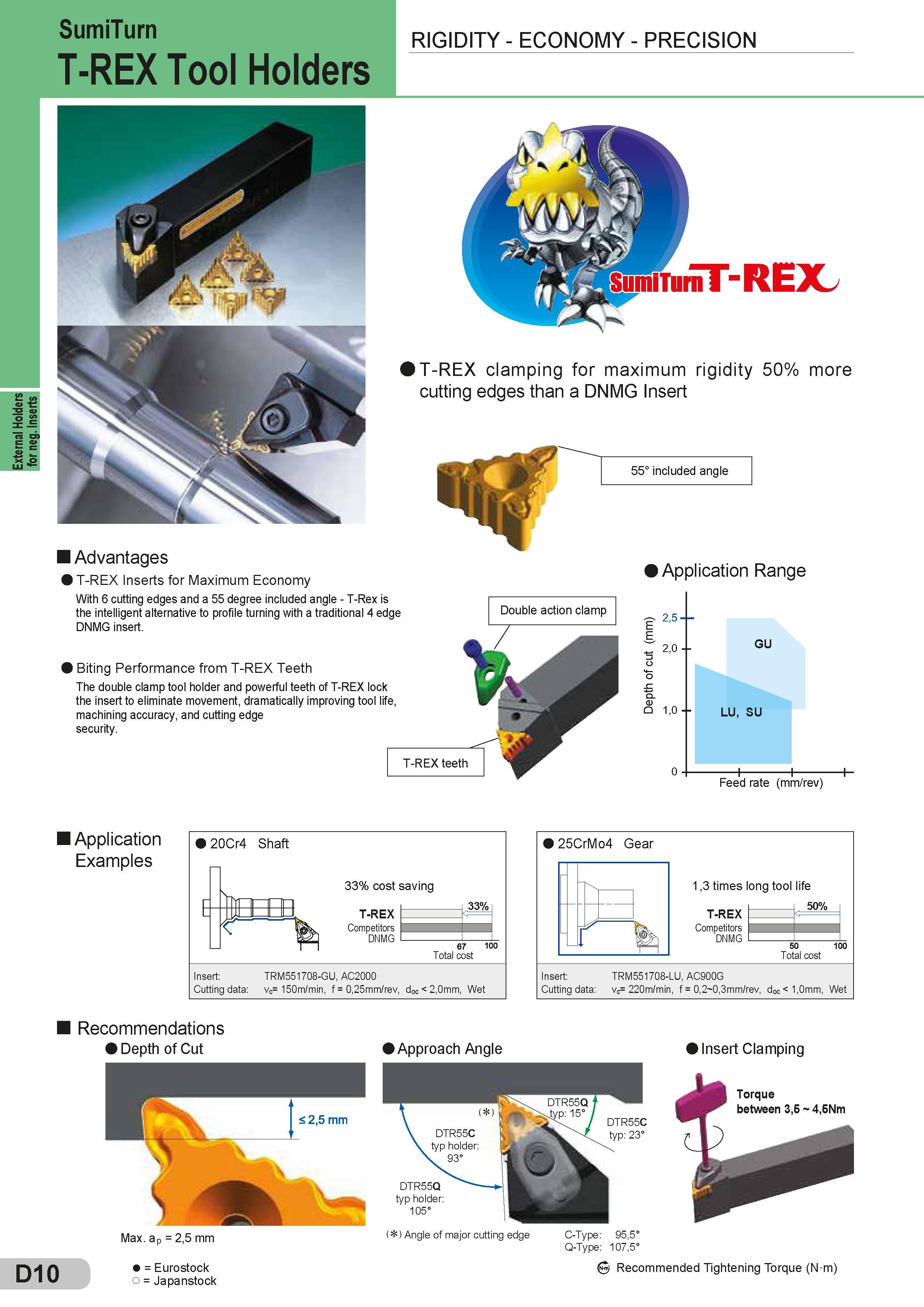

External Holders for neg. Inserts SumiTurn T-REX Tool Holders RIGIDITY - ECONOMY - PRECISION SumiTurnT" RE2C T-REX clamping for maximum rigidity 50% more cutting edges than a DNMG Insert Advantages T-REX Inserts for Maximum Economy With 6 cutting edges and a 55 degree included angle - T-Rex is the intelligent alternative to profile turning with a traditional 4 edge DNMG insert. ( Biting Performance from T-REX Teeth The double clamp tool holder and powerful teeth of T-REX lock the insert to eliminate movement, dramatically improving tool life machining accuracy, and cutting edge security. 55° included angle Application Range Application Examples r 1,3 times long tool life T-REX Competitors DNMG 50% 50 100 Total cost Insert: TRM551708-LU, AC900G Cutting data: vc= 220m/min, f = 0,2 0,3mm/rev, doc < 1,0mm, Wet Recommendations Depth of Cut D10 Max. ap = 2,5 mm = Eurostock o = Japanstock Approach Angle Insert Clamping ( ) Angle of major cutting edge C-Type: 95,5° Q-Type: 107,5° Torque between 3,5 4,5Nm Recommended Tightening Torque (Nm)
