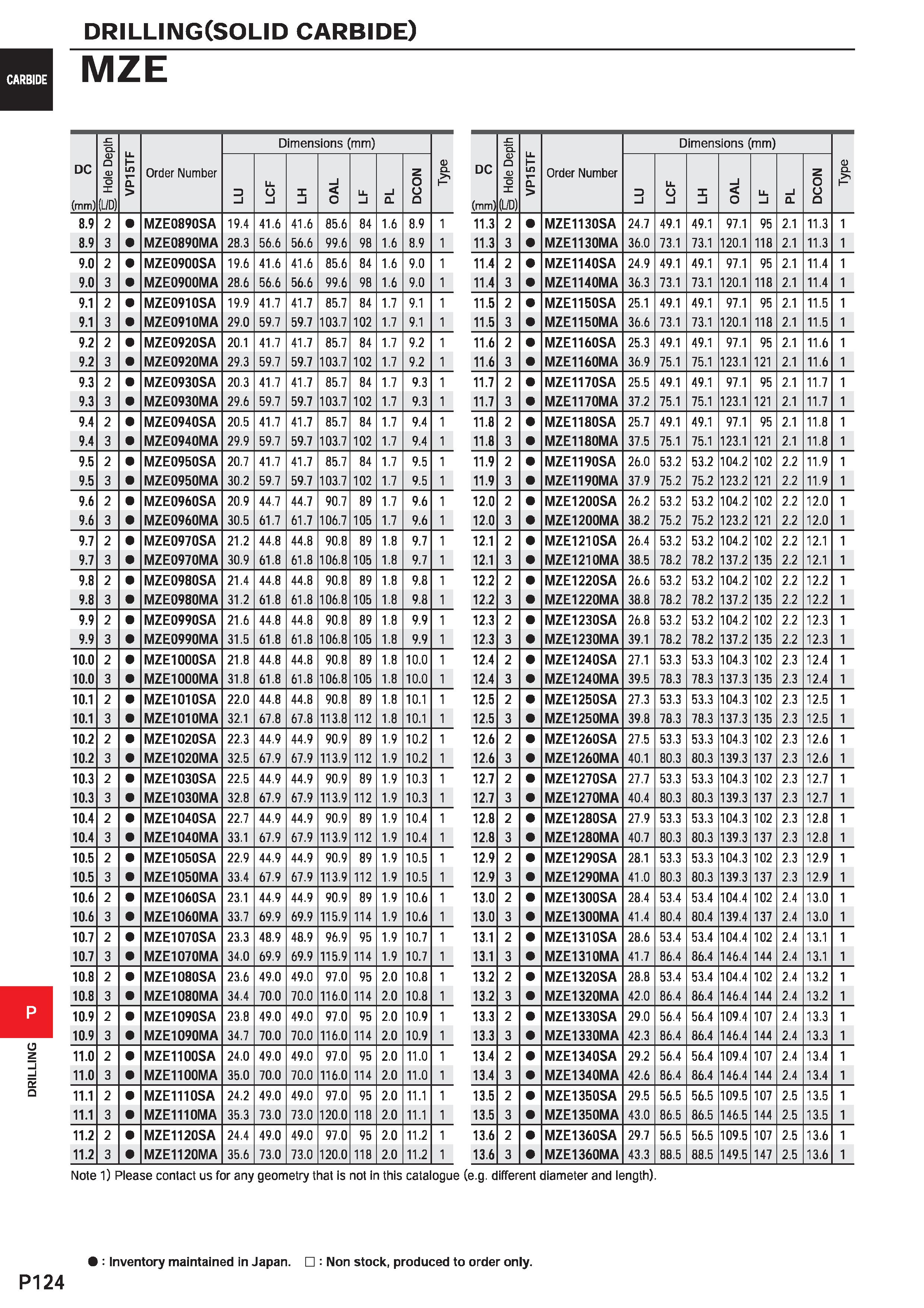

DRILLING(SOLID carbide) MZE DC (mm) tz Q. D O D O (L/D) VP15TF Order Number Dimensions (mm) a> CL P D l LCF X i OAL LL l i CL DCON 8.9 2 MZE0890SA 19.4 41.6 41.6 85.6 84 1.6 8.9 1 8.9 3 MZE0890MA 28.3 56.6 56.6 99.6 98 1.6 8.9 1 9.0 2 MZE0900SA 19.6 41.6 41.6 85.6 84 1.6 9.0 1 9.0 3 MZE0900MA 28.6 56.6 56.6 99.6 98 1.6 9.0 1 9.1 2 MZE0910SA 19.9 41.7 41.7 85.7 84 1.7 9.1 1 9.1 3 MZE0910MA 29.0 59.7 59.7 103.7 102 1.7 9.1 1 9.2 2 MZE0920SA 20.1 41.7 41.7 85.7 84 1.7 9.2 1 9.2 3 MZE0920MA 29.3 59.7 59.7 103.7 102 1.7 9.2 1 9.3 2 MZE0930SA 20.3 41.7 41.7 85.7 84 1.7 9.3 1 9.3 3 MZE0930MA 29.6 59.7 59.7 103.7 102 1.7 9.3 1 9.4 2 MZE0940SA 20.5 41.7 41.7 85.7 84 1.7 9.4 1 9.4 3 MZE0940MA 29.9 59.7 59.7 103.7 102 1.7 9.4 1 9.5 2 MZE0950SA 20.7 41.7 41.7 85.7 84 1.7 9.5 1 9.5 3 MZE0950MA 30.2 59.7 59.7 103.7 102 1.7 9.5 1 9.6 2 MZE0960SA 20.9 44.7 44.7 90.7 89 1.7 9.6 1 9.6 3 MZE0960MA 30.5 61.7 61.7 106.7 105 1.7 9.6 1 9.7 2 MZE0970SA 21.2 44.8 44.8 90.8 89 1.8 9.7 1 9.7 3 MZE0970MA 30.9 61.8 61.8 106.8 105 1.8 9.7 1 9.8 2 MZE0980SA 21.4 44.8 44.8 90.8 89 1.8 9.8 1 9.8 3 MZE0980MA 31.2 61.8 61.8 106.8 105 1.8 9.8 1 9.9 2 MZE0990SA 21.6 44.8 44.8 90.8 89 1.8 9.9 1 9.9 3 MZE0990MA 31.5 61.8 61.8 106.8 105 1.8 9.9 1 10.0 2 MZE1000SA 21.8 44.8 44.8 90.8 89 1.8 10.0 1 10.0 3 MZE1000MA 31.8 61.8 61.8 106.8 105 1.8 10.0 1 10.1 2 MZE1010SA 22.0 44.8 44.8 90.8 89 1.8 10.1 1 10.1 3 MZE1010MA 32.1 67.8 67.8 113.8 112 1.8 10.1 1 10.2 2 MZE1020SA 22.3 44.9 44.9 90.9 89 1.9 10.2 1 10.2 3 MZE1020MA 32.5 67.9 67.9 113.9 112 1.9 10.2 1 10.3 2 MZE1030SA 22.5 44.9 44.9 90.9 89 1.9 10.3 1 10.3 3 MZE1030MA 32.8 67.9 67.9 113.9 112 1.9 10.3 1 10.4 2 MZE1040SA 22.7 44.9 44.9 90.9 89 1.9 10.4 1 10.4 3 MZE1040MA 33.1 67.9 67.9 113.9 112 1.9 10.4 1 10.5 2 MZE1050SA 22.9 44.9 44.9 90.9 89 1.9 10.5 1 10.5 3 MZE1050MA 33.4 67.9 67.9 113.9 112 1.9 10.5 1 10.6 2 MZE1060SA 23.1 44.9 44.9 90.9 89 1.9 10.6 1 10.6 3 MZE1060MA 33.7 69.9 69.9 115.9 114 1.9 10.6 1 10.7 2 MZE1070SA 23.3 48.9 48.9 96.9 95 1.9 10.7 1 10.7 3 MZE1070MA 34.0 69.9 69.9 115.9 114 1.9 10.7 1 10.8 2 MZE1080SA 23.6 49.0 49.0 97.0 95 2.0 10.8 1 10.8 3 MZE1080MA 34.4 70.0 70.0 116.0 114 2.0 10.8 1 10.9 2 MZE1090SA 23.8 49.0 49.0 97.0 95 2.0 10.9 1 10.9 3 MZE1090MA 34.7 70.0 70.0 116.0 114 2.0 10.9 1 11.0 2 MZE1100SA 24.0 49.0 49.0 97.0 95 2.0 11.0 1 11.0 3 MZE1100MA 35.0 70.0 70.0 116.0 114 2.0 11.0 1 11.1 2 MZE1110SA 24.2 49.0 49.0 97.0 95 2.0 11.1 1 11.1 3 MZE1110MA 35.3 73.0 73.0 120.0 118 2.0 11.1 1 11.2 2 MZE1120SA 24.4 49.0 49.0 97.0 95 2.0 11.2 1 11.2 3 MZE1120MA 35.6 73.0 73.0 120.0 118 2.0 11.2 1 DC (mm) 5 Hole Depth VP15TF Order Number Dimensions (mm) u CL 3 l LCF X i OAL LL l i a. DCON 11.3 2 MZE1130SA 24.7 49.1 49.1 97.1 95 2.1 11.3 1 11.3 3 MZE1130MA 36.0 73.1 73.1 120.1 118 2.1 11.3 1 11.4 2 MZE1140SA 24.9 49.1 49.1 97.1 95 2.1 11.4 1 11.4 3 MZE1140MA 36.3 73.1 73.1 120.1 118 2.1 11.4 1 11.5 2 MZE1150SA 25.1 49.1 49.1 97.1 95 2.1 11.5 1 11.5 3 MZE1150MA 36.6 73.1 73.1 120.1 118 2.1 11.5 1 11.6 2 MZE1160SA 25.3 49.1 49.1 97.1 95 2.1 11.6 1 11.6 3 MZE1160MA 36.9 75.1 75.1 123.1 121 2.1 11.6 1 11.7 2 MZE1170SA 25.5 49.1 49.1 97.1 95 2.1 11.7 1 11.7 3 MZE1170MA 37.2 75.1 75.1 123.1 121 2.1 11.7 1 11.8 2 MZE1180SA 25.7 49.1 49.1 97.1 95 2.1 11.8 1 11.8 3 MZE1180MA 37.5 75.1 75.1 123.1 121 2.1 11.8 1 11.9 2 MZE1190SA 26.0 53.2 53.2 104.2 102 2.2 11.9 1 11.9 3 MZE1190MA 37.9 75.2 75.2 123.2 121 2.2 11.9 1 12.0 2 MZE1200SA 26.2 53.2 53.2 104.2 102 2.2 12.0 1 12.0 3 MZE1200MA 38.2 75.2 75.2 123.2 121 2.2 12.0 1 12.1 2 MZE1210SA 26.4 53.2 53.2 104.2 102 2.2 12.1 1 12.1 3 MZE1210MA 38.5 78.2 78.2 137.2 135 2.2 12.1 1 12.2 2 MZE1220SA 26.6 53.2 53.2 104.2 102 2.2 12.2 1 12.2 3 MZE1220MA 38.8 78.2 78.2 137.2 135 2.2 12.2 1 12.3 2 MZE1230SA 26.8 53.2 53.2 104.2 102 2.2 12.3 1 12.3 3 MZE1230MA 39.1 78.2 78.2 137.2 135 2.2 12.3 1 12.4 2 MZE1240SA 27.1 53.3 53.3 104.3 102 2.3 12.4 1 12.4 3 MZE1240MA 39.5 78.3 78.3 137.3 135 2.3 12.4 1 12.5 2 MZE1250SA 27.3 53.3 53.3 104.3 102 2.3 12.5 1 12.5 3 MZE1250MA 39.8 78.3 78.3 137.3 135 2.3 12.5 1 12.6 2 MZE1260SA 27.5 53.3 53.3 104.3 102 2.3 12.6 1 12.6 3 MZE1260MA 40.1 80.3 80.3 139.3 137 2.3 12.6 1 12.7 2 MZE1270SA 27.7 53.3 53.3 104.3 102 2.3 12.7 1 12.7 3 MZE1270MA 40.4 80.3 80.3 139.3 137 2.3 12.7 1 12.8 2 MZE1280SA 27.9 53.3 53.3 104.3 102 2.3 12.8 1 12.8 3 MZE1280MA 40.7 80.3 80.3 139.3 137 2.3 12.8 1 12.9 2 MZE1290SA 28.1 53.3 53.3 104.3 102 2.3 12.9 1 12.9 3 MZE1290MA 41.0 80.3 80.3 139.3 137 2.3 12.9 1 13.0 2 MZE1300SA 28.4 53.4 53.4 104.4 102 2.4 13.0 1 13.0 3 MZE1300MA 41.4 80.4 80.4 139.4 137 2.4 13.0 1 13.1 2 MZE1310SA 28.6 53.4 53.4 104.4 102 2.4 13.1 1 13.1 3 MZE1310MA 41.7 86.4 86.4 146.4 144 2.4 13.1 1 13.2 2 MZE1320SA 28.8 53.4 53.4 104.4 102 2.4 13.2 1 13.2 3 MZE1320MA 42.0 86.4 86.4 146.4 144 2.4 13.2 1 13.3 2 MZE1330SA 29.0 56.4 56.4 109.4 107 2.4 13.3 1 13.3 3 MZE1330MA 42.3 86.4 86.4 146.4 144 2.4 13.3 1 13.4 2 MZE1340SA 29.2 56.4 56.4 109.4 107 2.4 13.4 1 13.4 3 MZE1340MA 42.6 86.4 86.4 146.4 144 2.4 13.4 1 13.5 2 MZE1350SA 29.5 56.5 56.5 109.5 107 2.5 13.5 1 13.5 3 MZE1350MA 43.0 86.5 86.5 146.5 144 2.5 13.5 1 13.6 2 MZE1360SA 29.7 56.5 56.5 109.5 107 2.5 13.6 1 13.6 3 MZE1360MA 43.3 88.5 88.5 149.5 147 2.5 13.6 1 Note 1) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). : Inventory maintained in Japan. : Non stock, produced to order only.
