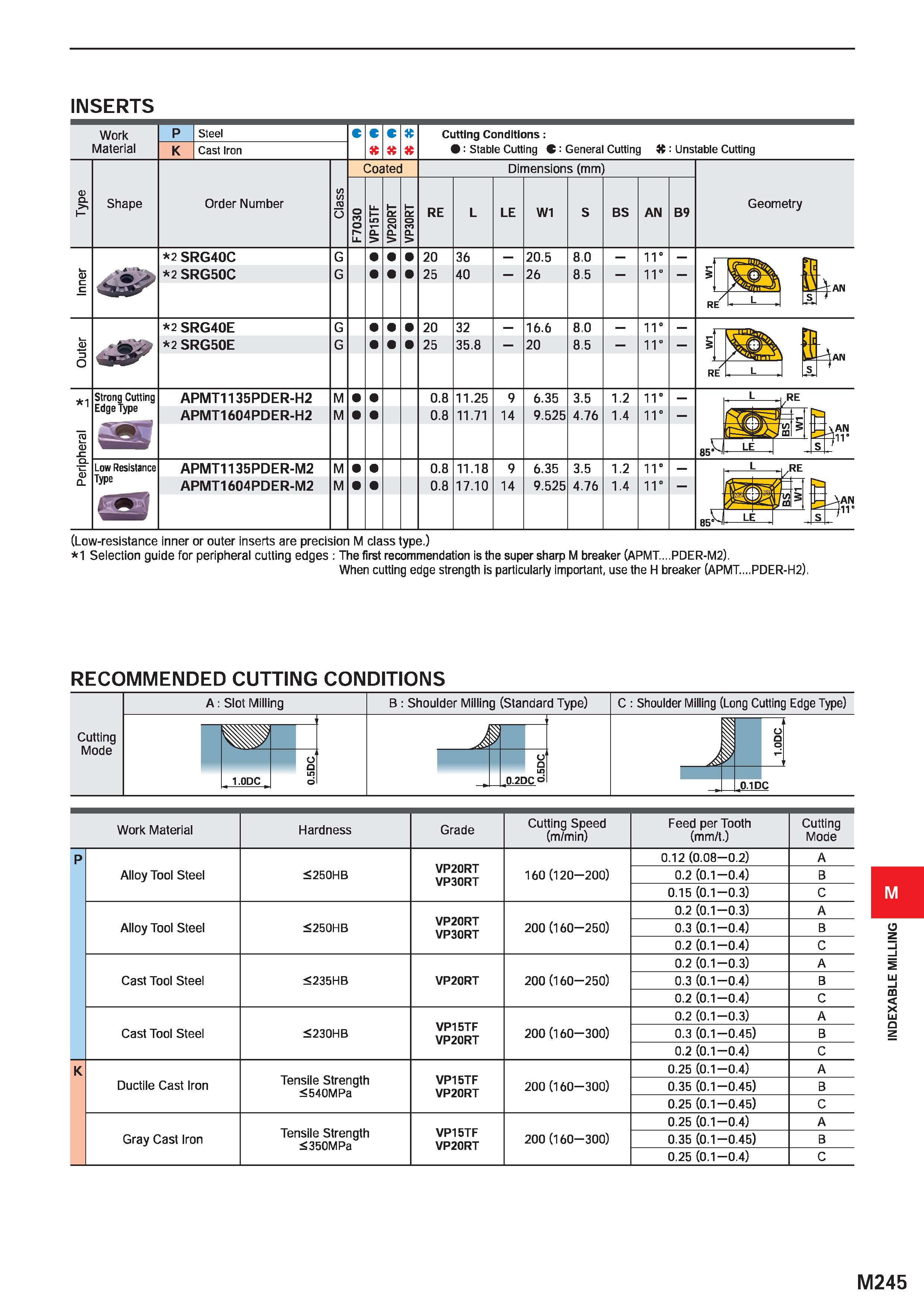

INSERTS Work Material Steel Cast Iron Cutting Conditions: : Stable Cutting C: General Cutting 4C: Unstable Cutting Shape Order Number Coated Dimensions (mm) o RE LE W1 BS AN B9 Geometry 2 SRG40C 2 SRG50C 20 25 36 40 20.5 26 8.0 8.5 / F L 2 SRG40E 2 SRG50E 20 25 32 35.8 16.6 20 8.0 8.5 1 Strong Cutting Edge Type APMT1135PDER-H2 APMT1604PDER-H2 0.8 0.8 11.25 11.71 9 14 6.35 9.525 3.5 4.76 1.2 1.4 L , RE Low Resistance Type APMT1135PDER-M2 APMT1604PDER-M2 0.8 0.8 11.18 17.10 9 14 6.35 9.525 3.5 4.76 1.2 1.4 L ,,RE (Low-resistance inner or outer inserts are precision M class type.) 1 Selection guide for peripheral cutting edges : The first recommendation is the super sharp M breaker (APMT....PDER-M2). When cutting edge strength is particularly important, use the H breaker (APMT....PDER-H2), RECOMMENDED CUTTING CONDITIONS A: Slot Milling B : Shoulder Milling (Standard Type) C : Shoulder Milling (Long Cutting Edge Type) 1 Cutting Mode IIP 1 o a O J, ' 1.0DC LD Lfl 0.2DC ,0.1 DC Work Material Hardness Grade Cutting Speed (m/min) Feed per Tooth (mm/t.) Cutting Mode P VP20RT VP30RT 0.12 (0.08-0.2) A Alloy Tool Steel 250HB 160 (120-200) 0.2 (0.1-0.4) B 0.15 (0.1 0.3) C VP20RT VP30RT 0.2 (0.1-0.3) A Alloy Tool Steel 250HB 200 (160-250) 0.3 (0.1-0.4) B 0.2 (0.1-0.4) C 0.2 (0.1-0.3) A Cast Tool Steel 235HB VP20RT 200 (160-250) 0.3 (0.1-0.4) B 0.2 (0.1-0.4) C VP15TF VP20RT 0.2 (0.1-0.3) A Cast Tool Steel 230HB 200(160-300) 0.3 (0.1-0.45) B 0.2 (0.1-0.4) C K Tensile Strength 540MPa VP15TF VP20RT 0.25 (0.1-0.4) A Ductile Cast Iron 200 (160-300) 0.35 (0.1-0.45) B 0.25 (0.1-0.45) C Tensile Strength 350MPa VP15TF VP20RT 0.25 (0.1-0.4) A Gray Cast Iron 200 (160-300) 0.35 (0.1-0.45) B 0.25 (0.1 -0.4) C M245 INDEXABLE MILLING
