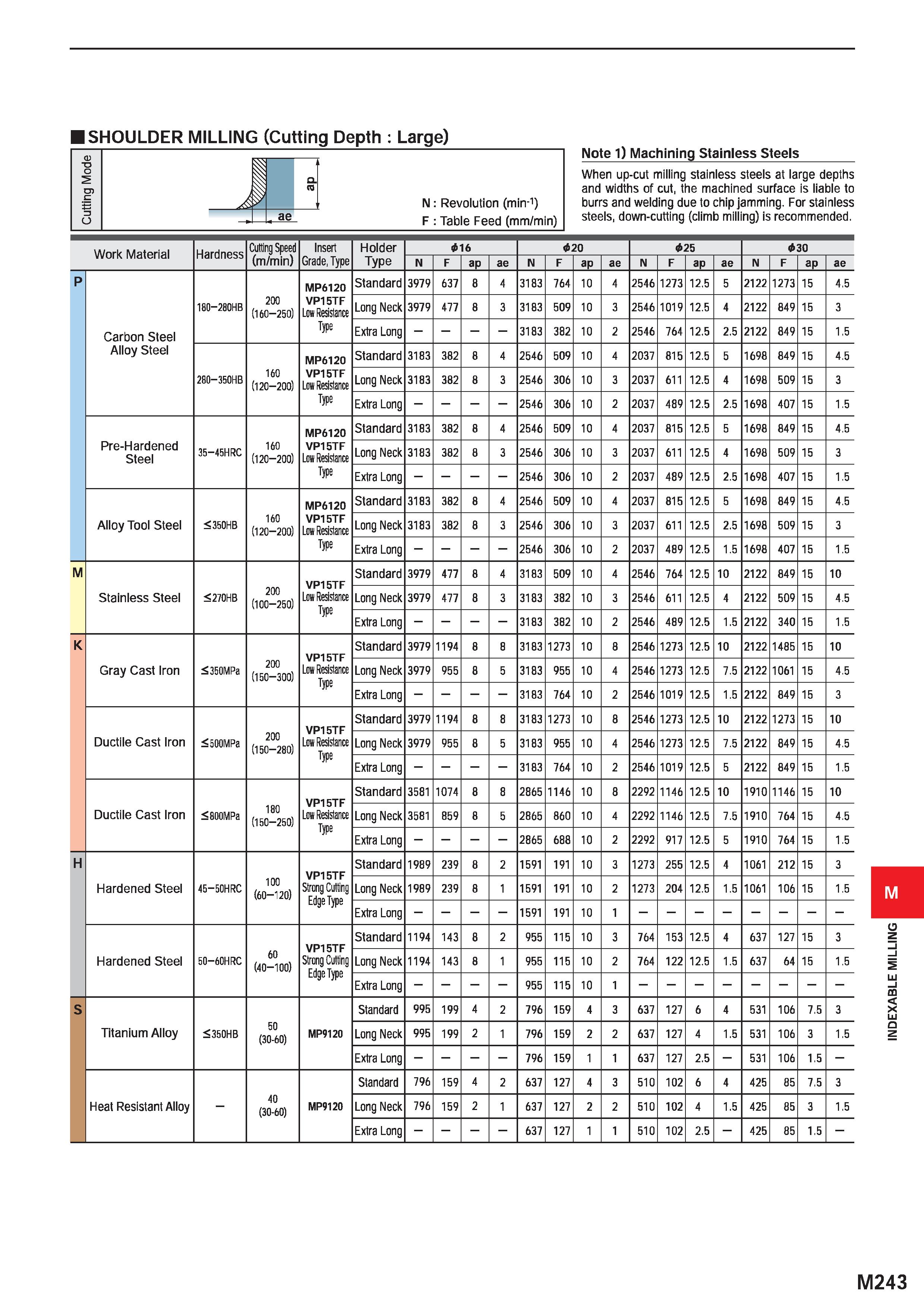

SHOULDER MILLING (Cutting Depth : Large) Cutting Mode Note 1) Machining Stainless Steels When up-cut milling stainless steels at large depths and widths of cut, the machined surface is liable to burrs and welding due to chip jamming. For stainless steels, down-cutting (climb milling) is recommended. 1 a ro N: Revolution (min-1) . ae F : Table Feed (mm/min) Work Material Hardness Cutting Speed (m/min) Insert Grade, Type Holder Type 16 420 625 630 N F ap ae N F ap ae N F ap ae N F ap ae P Carbon Steel Alloy Steel 180 280HB 200 (160-250) MP6120 VP15TF Low Resistance Type Standard 3979 637 8 4 3183 764 10 4 2546 1273 12.5 5 2122 1273 15 4.5 Long Neck 3979 477 8 3 3183 509 10 3 2546 1019 12.5 4 2122 849 15 3 Extra Long 3183 382 10 2 2546 764 12.5 2.5 2122 849 15 1.5 280-350HB 160 (120-200) MP6120 VP15TF Low Resistance Type Standard 3183 382 8 4 2546 509 10 4 2037 815 12.5 5 1698 849 15 4.5 Long Neck 3183 382 8 3 2546 306 10 3 2037 611 12.5 4 1698 509 15 3 Extra Long 2546 306 10 2 2037 489 12.5 2.5 1698 407 15 1.5 Pre-Hardened Steel 35-45HRC 160 (120-200) MP6120 VP15TF Low Resistance Type Standard 3183 382 8 4 2546 509 10 4 2037 815 12.5 5 1698 849 15 4.5 Long Neck 3183 382 8 3 2546 306 10 3 2037 611 12.5 4 1698 509 15 3 Extra Long 2546 306 10 2 2037 489 12.5 2.5 1698 407 15 1.5 Alloy Tool Steel 350HB 160 (120-200) MP6120 VP15TF Low Resistance Type Standard 3183 382 8 4 2546 509 10 4 2037 815 12.5 5 1698 849 15 4.5 Long Neck 3183 382 8 3 2546 306 10 3 2037 611 12.5 2.5 1698 509 15 3 Extra Long 2546 306 10 2 2037 489 12.5 1.5 1698 407 15 1.5 M Stainless Steel 270HB 200 (100-250) VP15TF Low Resistance Type Standard 3979 477 8 4 3183 509 10 4 2546 764 12.5 10 2122 849 15 10 Long Neck 3979 477 8 3 3183 382 10 3 2546 611 12.5 4 2122 509 15 4.5 Extra Long 3183 382 10 2 2546 489 12.5 1.5 2122 340 15 1.5 K Gray Cast Iron 350MPa 200 (150-300) VP15TF Low Resistance Type Standard 3979 1194 8 8 3183 1273 10 8 2546 1273 12.5 10 2122 1485 15 10 Long Neck 3979 955 8 5 3183 955 10 4 2546 1273 12.5 7.5 2122 1061 15 4.5 Extra Long 3183 764 10 2 2546 1019 12.5 1.5 2122 849 15 3 Ductile Cast Iron 500MPa 200 (150-280) VP15TF Low Resistance Type Standard 3979 1194 8 8 3183 1273 10 8 2546 1273 12.5 10 2122 1273 15 10 Long Neck 3979 955 8 5 3183 955 10 4 2546 1273 12.5 7.5 2122 849 15 4.5 Extra Long 3183 764 10 2 2546 1019 12.5 5 2122 849 15 1.5 Ductile Cast Iron 800MPa 180 (150-250) VP15TF Low Resistance Type Standard 3581 1074 8 8 2865 1146 10 8 2292 1146 12.5 10 1910 1146 15 10 Long Neck 3581 859 8 5 2865 860 10 4 2292 1146 12.5 7.5 1910 764 15 4.5 Extra Long 2865 688 10 2 2292 917 12.5 5 1910 764 15 1.5 H Hardened Steel 45-50HRC 100 (60-120) VP15TF Strong Cutting Edge Type Standard 1989 239 8 2 1591 191 10 3 1273 255 12.5 4 1061 212 15 3 Long Neck 1989 239 8 1 1591 191 10 2 1273 204 12.5 1.5 1061 106 15 1.5 Extra Long 1591 191 10 1 Hardened Steel 50-60HRC 60 (40-100) VP15TF Strong Cutting Edge Type Standard 1194 143 8 2 955 115 10 3 764 153 12.5 4 637 127 15 3 Long Neck 1194 143 8 1 955 115 10 2 764 122 12.5 1.5 637 64 15 1.5 Extra Long 955 115 10 1 S Titanium Alloy 350HB 50 (30-60) MP9120 Standard 995 199 4 2 796 159 4 3 637 127 6 4 531 106 7.5 3 Long Neck 995 199 2 1 796 159 2 2 637 127 4 1.5 531 106 3 1.5 Extra Long 796 159 1 1 637 127 2.5 - 531 106 1.5 - Heat Resistant Alloy - 40 (30-60) MP9120 Standard 796 159 4 2 637 127 4 3 510 102 6 4 425 85 7.5 3 Long Neck 796 159 2 1 637 127 2 2 510 102 4 1.5 425 85 3 1.5 Extra Long 637 127 1 1 510 102 2.5 - 425 85 1.5 -
