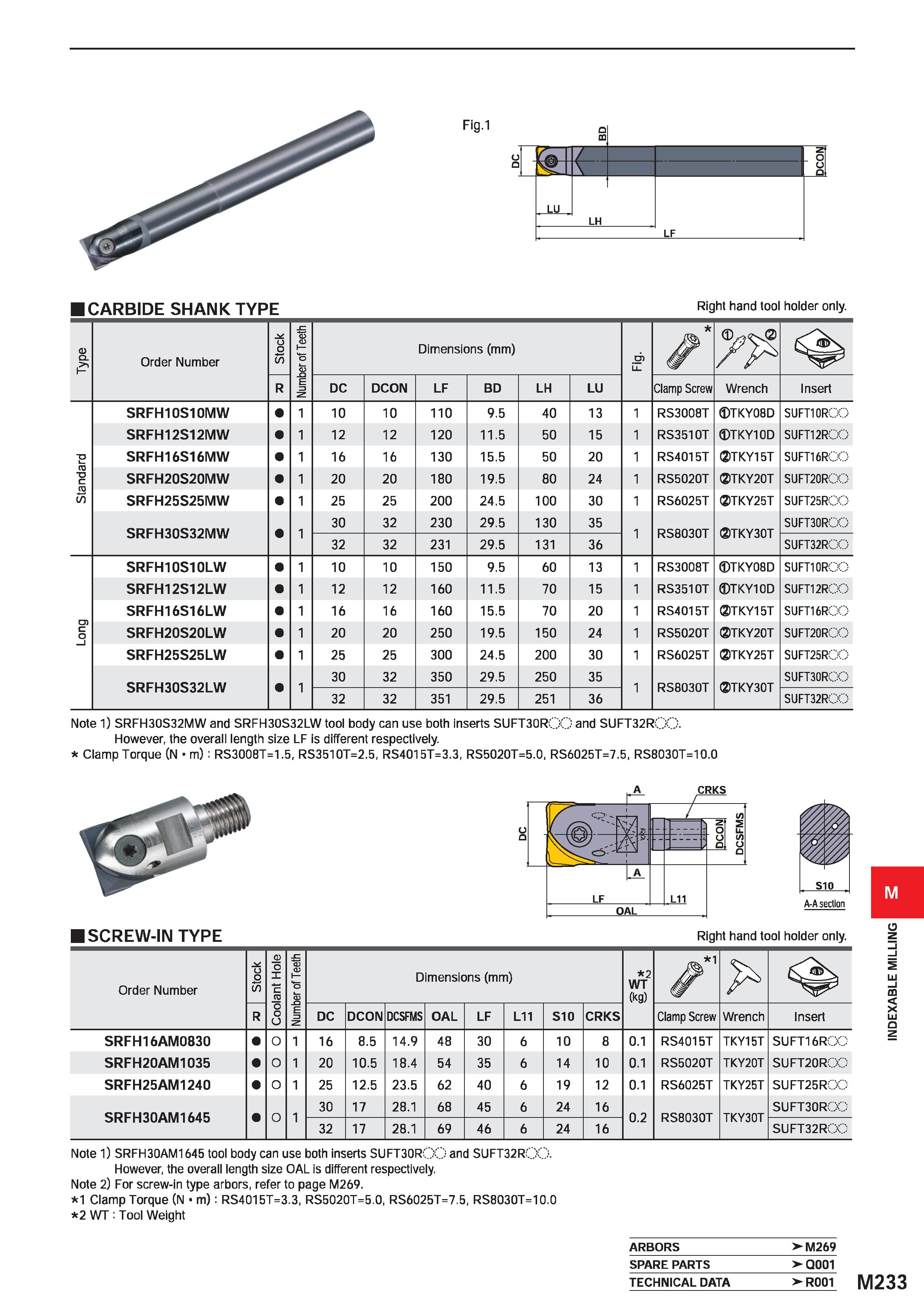

CARBIDE SHANK TYPE Right hand tool holder only. Type Order Number Stock £ D 1 O D Dimensions (mm) ra LL. R E =3 DC DCON LF BD LH LU Clamp Screw Wrench Insert SRFH10S10MW 1 10 10 110 9.5 40 13 1 RS3008T TKY08D SUFT10RCX) SRFH12S12MW 1 12 12 120 11.5 50 15 1 RS3510T TKY10D SUFT12RCO Standard SRFH16S16MW 1 16 16 130 15.5 50 20 1 RS4015T TKY15T SUFT16RCO SRFH20S20MW 1 20 20 180 19.5 80 24 1 RS5020T TKY20T SUFT20RCO SRFH25S25MW 1 25 25 200 24.5 100 30 1 RS6025T TKY25T SUFT25RCO SRFH30S32MW 30 32 230 29.5 130 35 RS8030T TKY30T SUFT30RCG 32 32 231 29.5 131 36 SUFT32RCO SRFH10S10LW 1 10 10 150 9.5 60 13 1 RS3008T TKY08D SUFT10RCC- SRFH12S12LW 1 12 12 160 11.5 70 15 1 RS3510T TKY10D SUFT12RCO -ong SRFH16S16LW 1 16 16 160 15.5 70 20 1 RS4015T TKY15T SUFT16RCO SRFH20S20LW 1 20 20 250 19.5 150 24 1 RS5020T TKY20T SUFT20RCG SRFH25S25LW 1 25 25 300 24.5 200 30 1 RS6025T TKY25T SUFT25RCO SRFH30S32LW 30 32 350 29.5 250 35 RS8030T TKY30T SUFT30RCO 32 32 351 29.5 251 36 SUFT32RCO Note 1) SRFH30S32MW and SRFH30S32LW tool body can use both inserts SUFT30ROO and SUFT32ROO. However, the overall length size LF is different respectively. Clamp Torque (N m): RS3008T=1.5, RS3510T=2.5, RS4015T=3.3, RS5020T=5.0, RS6025T=7.5, RS8030T=10.0 SCREW-IN TYPE sio A-A section Right hand tool holder only. Order Number Stock Coolant Hole Number of Teeth Dimensions (mm) 2 WT (kg) R DC DCON DCSFMS OAL LF L11 S10 CRKS Clamp Screw Wrench Insert SRFH16AM0830 O 1 16 8.5 14.9 48 30 6 10 8 0.1 RS4015T TKY15T SUFT16ROO SRFH20AM1035 O 1 20 10.5 18.4 54 35 6 14 10 0.1 RS5020T TKY20T SUFT20ROO SRFH25AM1240 o 1 25 12.5 23.5 62 40 6 19 12 0.1 RS6025T TKY25T SUFT25ROO SRFH30AM1645 o 1 30 17 28.1 68 45 6 24 16 0.2 RS8030T TKY30T SUFT30ROO 32 17 28.1 69 46 6 24 16 SUFT32ROO Note 1) SRFH30AM1645 tool body can use both inserts SUFT30ROO and SUFT32RCX). However, the overall length size OAL is different respectively. Note 2) For screw-in type arbors, refer to page M269. 1 Clamp Torque (N m): RS4015T=3.3, RS5020T=5.0, RS6025T=7.5, RS8030T=10.0 2 WT : Tool Weight ARBORS > M269 SPARE PARTS > Q001 TECHNICAL DATA >R001 M233 INDEXABLE MILLING
