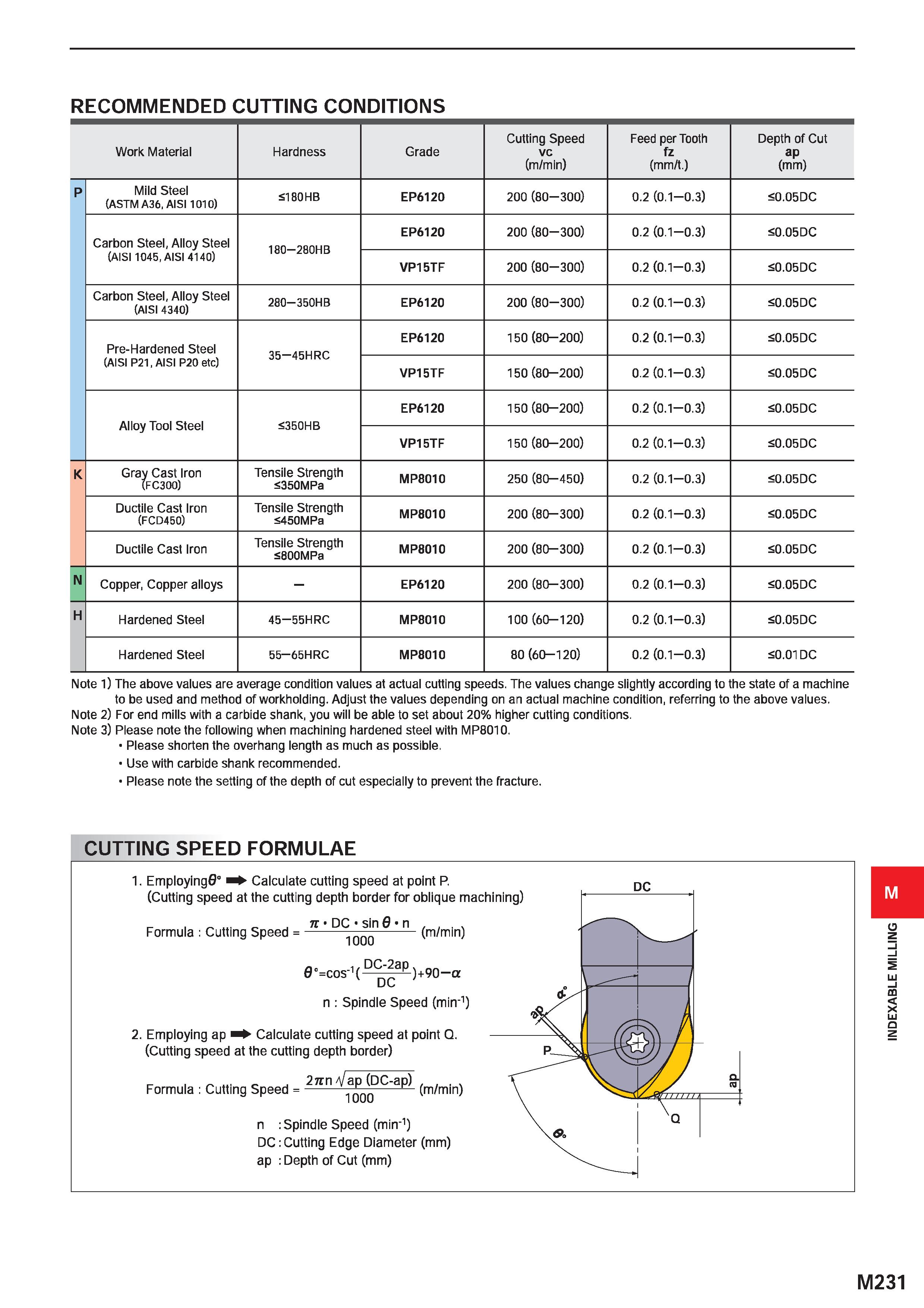

RECOMMENDED CUTTING CONDITIONS Work Material Hardness Grade Cutting Speed vc (m/min) Feed per Tooth fz (mm/t.) Depth of Cut ap (mm) P Mild Steel (ASTMA36, AIS11010) £180 HB EP6120 200 (80-300) 0.2 (0.1 0.3) 0.05DC Carbon Steel, Alloy Steel (AIS11045, AISI 4140) 180 280HB EP6120 200 (80-300) 0.2 (0.1 0.3) B.05DC VP15TF 200 (80-300) 0.2 (0.1 0.3) S0.05DC Carbon Steel, Alloy Steel (AISI 4340) 280 350HB EP6120 200 (80-300) 0.2 (0.1 0.3) B.05DC Pre-Hardened Steel (AISI P21, AISI P20 etc) 35-45HRC EP6120 150(80-200) 0.2 (0.1 0.3) 50.05DC VP15TF 150(80-200) 0.2 (0.1 0.3) B.05DC Alloy Tool Steel 5350HB EP6120 150(80-200) 0.2 (0.1 0.3) 50.05DC VP15TF 150 (80-200) 0.2 (0.1 0.3) 50.05DC K Gray Cast Iron (FC300) Tensile Strength £350MPa MP8010 250 (80-450) 0.2 (0.1 0.3) 0.05DC Ductile Cast Iron (FCD450) Tensile Strength s450MPa MP8010 200 (80-300) 0.2 (0.1-0.3) B.05DC Ductile Cast Iron Tensile Strength £800MPa MP8010 200 (80-300) 0.2 (0.1 0.3) S0.05DC N Copper, Copper alloys - EP6120 200 (80-300) 0.2 (0.1 0.3) B.05DC H Hardened Steel 45-55HRC MP8010 100 (60-120) 0.2 (0.1 0.3) S0.05DC Hardened Steel 55-65HRC MP8010 80(60-120) 0.2 (0.1 0.3) 50.01 DC Note 1) The above values are average condition values at actual cutting speeds. The values change slightly according to the state of a machine to be used and method of workholding. Adjust the values depending on an actual machine condition, referring to the above values. Note 2) For end mills with a carbide shank, you will be able to set about 20% higher cutting conditions. Note 3) Please note the following when machining hardened steel with MP8010. Please shorten the overhang length as much as possible. Use with carbide shank recommended. Please note the setting of the depth of cut especially to prevent the fracture. CUTTING SPEED FORMULAE 1. Employing0° Calculate cutting speed at point P. (Cutting speed at the cutting depth border for oblique machining) Formula : Cutting Speed = n DC sin 8 n 1000 (m/min) 0O=COS'1( )+9O-“ n : Spindle Speed (min r 2. Employing ap Calculate cutting speed at point Q. (Cutting speed at the cutting depth border) Formula : Cutting Speed = 27rn Vap (DC-ap) 1000 (m/min) n : Spindle Speed (min-1) DC: Cutting Edge Diameter (mm) ap : Depth of Cut (mm) DC a (O M231 INDEXABLE MILLING
