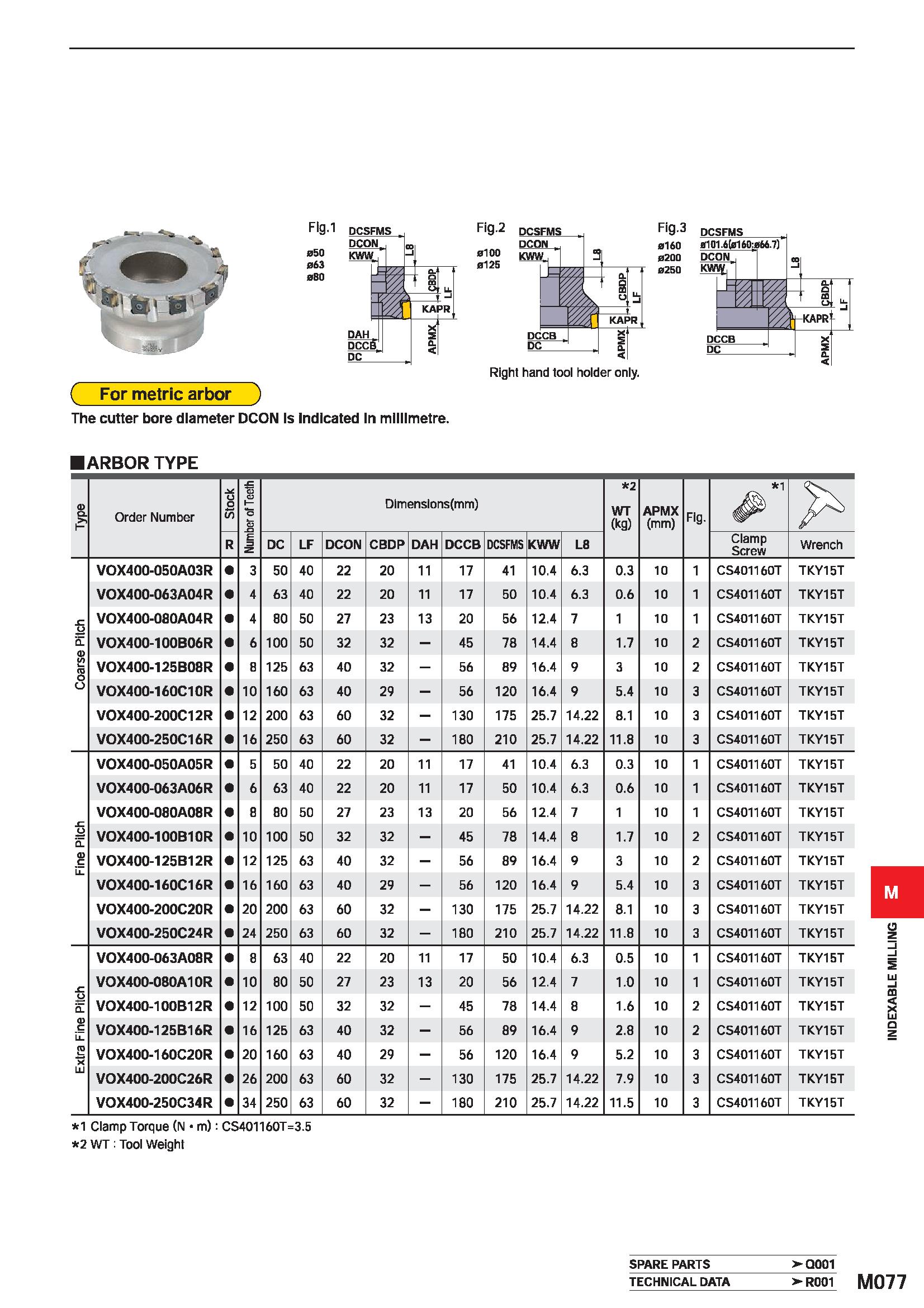

Flg.i 050 063 080 DCSFMS DCON, KWUL PAH, DCCE YZ DC KAPR -s - ( For metric arbor ) The cutter bore diameter DCON Is Indicated In millimetre. F'9-2 DCSFMS 0100 0125 DCON KWW , DCCB J DC H KAPR Right hand tool holder only. Fig.3 0160 0200 0250 DCSFMS glOUtel 60:066.7)' DCON. Kwvy DCCB DC 4-KAPR' I ARBOR TYPE Type Order Number Stock J= 13 i o o3 n Dlmenslons(mm) 2 WT (kg) APMX (mm) Fig. b R £ Z DC LF DCON CBDP DAH DCCB DCSFMS KWW L8 Clamp Screw Wrench VOX400-050A03R 3 50 40 22 20 11 17 41 10.4 6.3 0.3 10 1 CS401160T TKY15T VOX400-063A04R 4 63 40 22 20 11 17 50 10.4 6.3 0.6 10 1 CS401160T TKY15T JZ o VOX400-080A04R 4 80 50 27 23 13 20 56 12,4 7 1 10 1 CS401160T TKY15T 3l a> w ro o VOX400-100B06R 6 100 50 32 32 - 45 78 14.4 8 1.7 10 2 CS401160T TKY15T VOX400-125B08R 8 125 63 40 32 - 56 89 16.4 9 3 10 2 CS401160T TKY15T o VOX400-160C10R 10 160 63 40 29 - 56 120 16.4 9 5.4 10 3 CS401160T TKY15T VOX400-200C12R 12 200 63 60 32 - 130 175 25.7 14.22 8.1 10 3 CS401160T TKY15T VOX400-250C16R 16 250 63 60 32 - 180 210 25.7 14.22 11.8 10 3 CS401160T TKY15T VOX400-050A05R 5 50 40 22 20 11 17 41 10.4 6.3 0.3 10 1 CS401160T TKY15T VOX400-063A06R 6 63 40 22 20 11 17 50 10.4 6.3 0.6 10 1 CS401160T TKY15T VOX400-080A08R 8 80 50 27 23 13 20 56 12.4 7 1 10 1 CS401160T TKY15T o a. VOX400-100B10R 10 100 50 32 32 - 45 78 14.4 8 1.7 10 2 CS401160T TKY15T a> c VOX400-125B12R 12 125 63 40 32 - 56 89 16.4 9 3 10 2 CS401160T TKY15T LL. VOX400-160C16 R 16 160 63 40 29 - 56 120 16.4 9 5.4 10 3 CS401160T TKY15T VOX400-200C20R 20 200 63 60 32 - 130 175 25.7 14.22 8.1 10 3 CS401160T TKY15T VOX400-250C24 R 24 250 63 60 32 - 180 210 25.7 14.22 11.8 10 3 CS401160T TKY15T VOX400-063A08 R 8 63 40 22 20 11 17 50 10.4 6.3 0.5 10 1 CS401160T TKY15T JC VOX400-080A1 OR 10 80 50 27 23 13 20 56 12.4 7 1.0 10 1 CS401160T TKY15T o K VOX400-100B12R 12 100 50 32 32 - 45 78 14.4 8 1.6 10 2 CS401160T TKY15T c Li- VOX400-125B16R 16 125 63 40 32 - 56 89 16.4 9 2.8 10 2 CS401160T TKY15T SP "3 VOX400-160C20R 20 160 63 40 29 - 56 120 16.4 9 5.2 10 3 CS401160T TKY15T LlI VOX400-200C26R 26 200 63 60 32 - 130 175 25.7 14.22 7.9 10 3 CS401160T TKY15T VQX400-250C34 R 34 250 63 60 32 - 180 210 25.7 14.22 11.5 10 3 CS401160T TKY15T 1 Clamp Torque (N m) 2 WT: Tool Weight CS401160T=3.5 SPARE PARTS >Q001 TECHNICAL DATA >R001 M077 INDEXABLE MILLING
