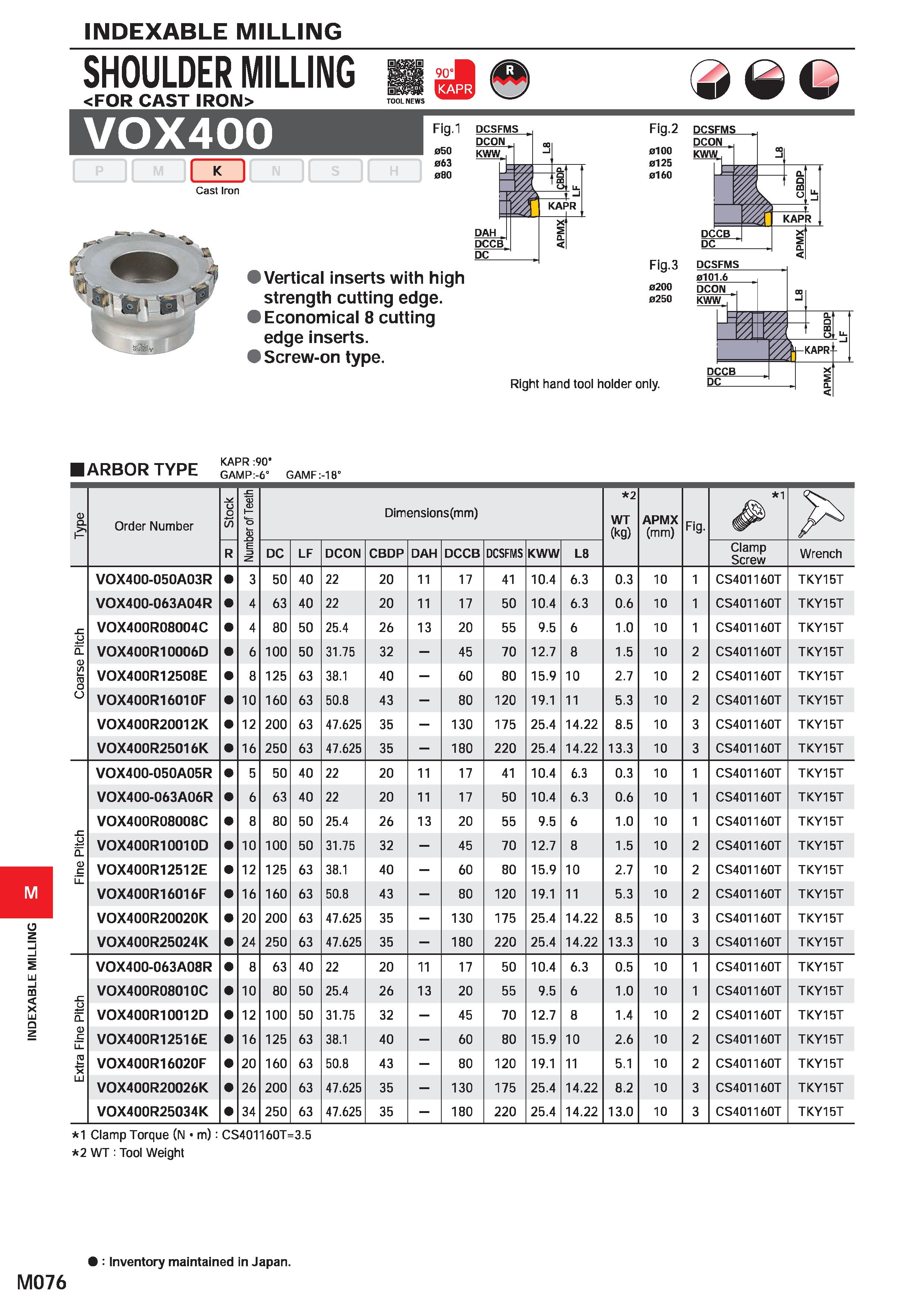

INDEXABLE MILLING INDEXABLE MILLING SHOULDER MILLING FOR CAST IRON> VQX400 SW TOOL NEW5 90 Fig.1 dcsfms M 1 050 063 080 DCON KWW Cast Iron & PAH f & DCCB DC r Vertical inserts with high strength cutting edge. Economical 8 cutting edge inserts. Screw-on type. IT KAPR Fig.2 dcsfms 0100 0125 0160 Right hand tool holder only. DCON KWW Q. Q 03 O DCCB DC KAPR Fig.3 0200 0250 DCSFMS 0101,6 DCON KWW I lj-KAPR DCCB DC x s o. ARBOR TYPE gamr-T gamf:-i8' o Q. Order Number Stock -£= OJ CD 1 O & Dimensions(mm) 2 WT (kg) APMX (mm) Fig. 1 R E =j DC LF DCON CBDP DAH DCCB DCSFMS KWW L8 Clamp Screw Wrench VOX400-050A03R 3 50 40 22 20 11 17 41 10.4 6.3 0.3 10 1 CS401160T TKY15T VOX400-063A04R 4 63 40 22 20 11 17 50 10.4 6.3 0.6 10 1 CS401160T TKY15T x: (j VOX400R08004C 4 80 50 25.4 26 13 20 55 9.5 6 1.0 10 1 CS401160T TKY15T a. (D VOX400R10006D 6 100 50 31.75 32 - 45 70 12.7 8 1.5 10 2 CS401160T TKY15T I/) i ra Q VOX400R12508E 8 125 63 38.1 40 - 60 80 15.9 10 2.7 10 2 CS401160T TKY15T o VOX400R1601 OF 10 160 63 50.8 43 - 80 120 19.1 11 5.3 10 2 CS401160T TKY15T VOX400R20012K 12 200 63 47.625 35 - 130 175 25.4 14.22 8.5 10 3 CS401160T TKY15T VOX400R25016K 16 250 63 47.625 35 - 180 220 25.4 14.22 13.3 10 3 CS401160T TKY15T VOX400-050A05R 5 50 40 22 20 11 17 41 10.4 6.3 0.3 10 1 CS401160T TKY15T VOX400-063A06R 6 63 40 22 20 11 17 50 10.4 6.3 0.6 10 1 CS401160T TKY15T VOX400R08008C 8 80 50 25.4 26 13 20 55 9.5 6 1.0 10 1 CS401160T TKY15T u a. VOX400R10010D 10 100 50 31.75 32 - 45 70 12.7 8 1.5 10 2 CS401160T TKY15T a) c VOX400R12512E 12 125 63 38.1 40 - 60 80 15.9 10 2.7 10 2 CS401160T TKY15T VOX400R16016F 16 160 63 50.8 43 - 80 120 19.1 11 5.3 10 2 CS401160T TKY15T VOX400R20020K 20 200 63 47.625 35 - 130 175 25.4 14.22 8.5 10 3 CS401160T TKY15T VOX400R25024K 24 250 63 47.625 35 - 180 220 25.4 14.22 13.3 10 3 CS401160T TKY15T VOX400-063A08R 8 63 40 22 20 11 17 50 10.4 6.3 0.5 10 1 CS401160T TKY15T C VOX400R08010C 10 80 50 25.4 26 13 20 55 9.5 6 1.0 10 1 CS401160T TKY15T u K VOX400R10012D 12 100 50 31.75 32 - 45 70 12.7 8 1.4 10 2 CS401160T TKY15T u c LL. VOX400R12516E 16 125 63 38.1 40 - 60 80 15.9 10 2.6 10 2 CS401160T TKY15T ra >< VOX400R16020F 20 160 63 50.8 43 - 80 120 19.1 11 5.1 10 2 CS401160T TKY15T LU VOX400R20026K 26 200 63 47.625 35 - 130 175 25.4 14.22 8.2 10 3 CS401160T TKY15T VQX400R25034K 34 250 63 47.625 35 - 180 220 25.4 14.22 13.0 10 3 CS401160T TKY15T 1 Clamp Torque (N m): CS401160T=3.5 2 WT : Tool Weight : Inventory maintained in Japan. M076
