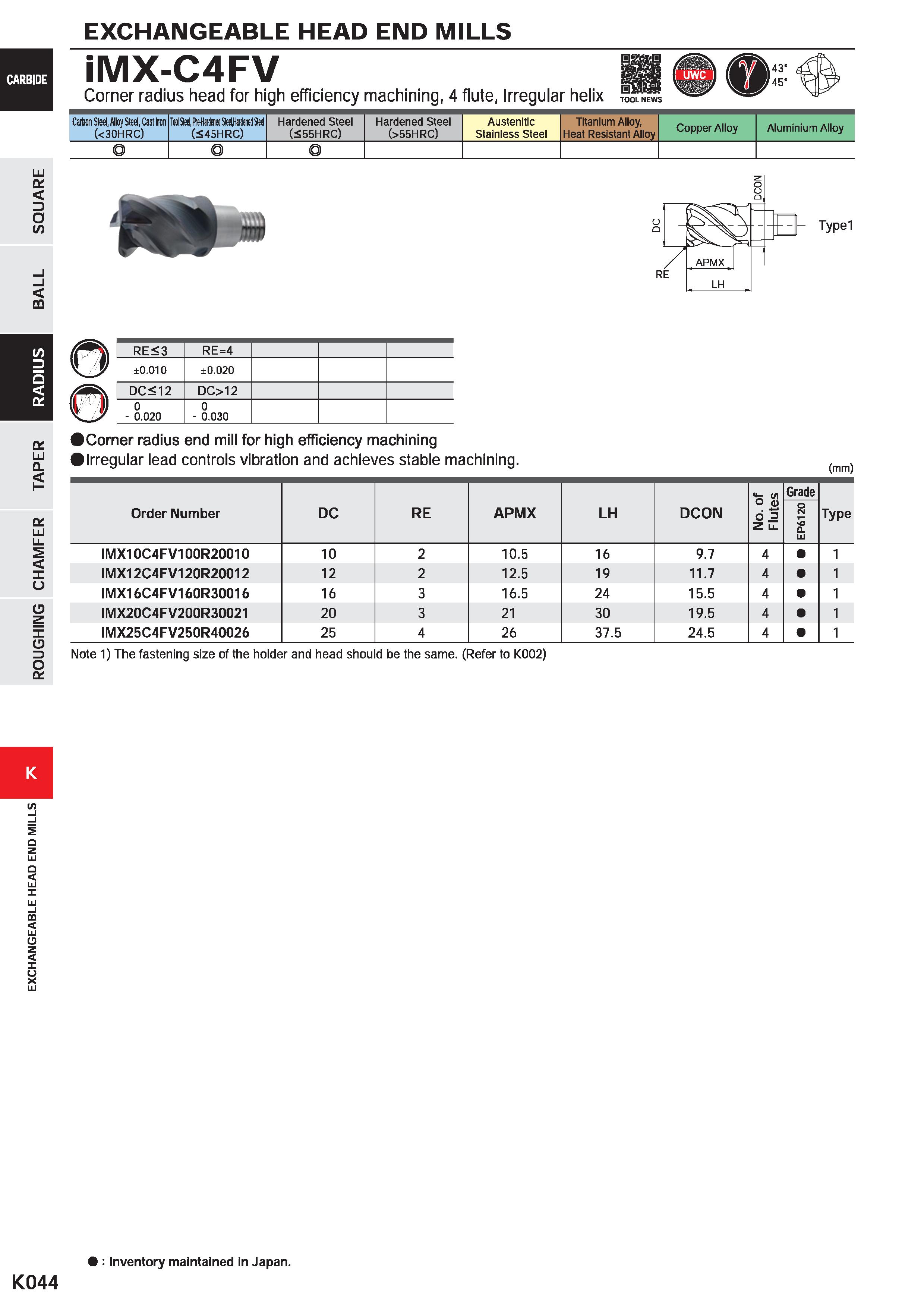

EXCHANGEABLE HEAD END MILLS iMX-C4FV Corner radius head for high efficiency machining, 4 flute, Irregular helix Carton Sled, Alloj Steel, Cast Iron (<30HRC) Tod Sari, fttMnerl SHIMnd SH (545HRC) Hardened Steel ( 55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy o LU D o /> m £ LU Q. X o cd z X CD 3 o a. RE<3 RE=4 ±0.010 ±0.020 DC<12 DC>12 0 - 0.020 0 - 0.030 Corner radius end mill for high efficiency machining Hrregular lead controls vibration and achieves stable machining. (mm) Order Number DC RE APMX LH DCON No. of 1 Flutes Grade o IN a UJ Type IMX10C4FV100R20010 10 2 10.5 16 9.7 4 1 IMX12C4FV120R20012 12 2 12.5 19 11.7 4 1 IMX16C4FV160R30016 16 3 16.5 24 15.5 4 1 IMX20C4FV200R30021 20 3 21 30 19.5 4 1 IMX25C4FV250R40026 25 4 26 37.5 24.5 4 1 Note 1) The fastening size of the holder and head should be the same. (Refer to K002) 5 Q Z LU Ld X LU l CQ LU o z X u X LU : Inventory maintained in Japan. K044
