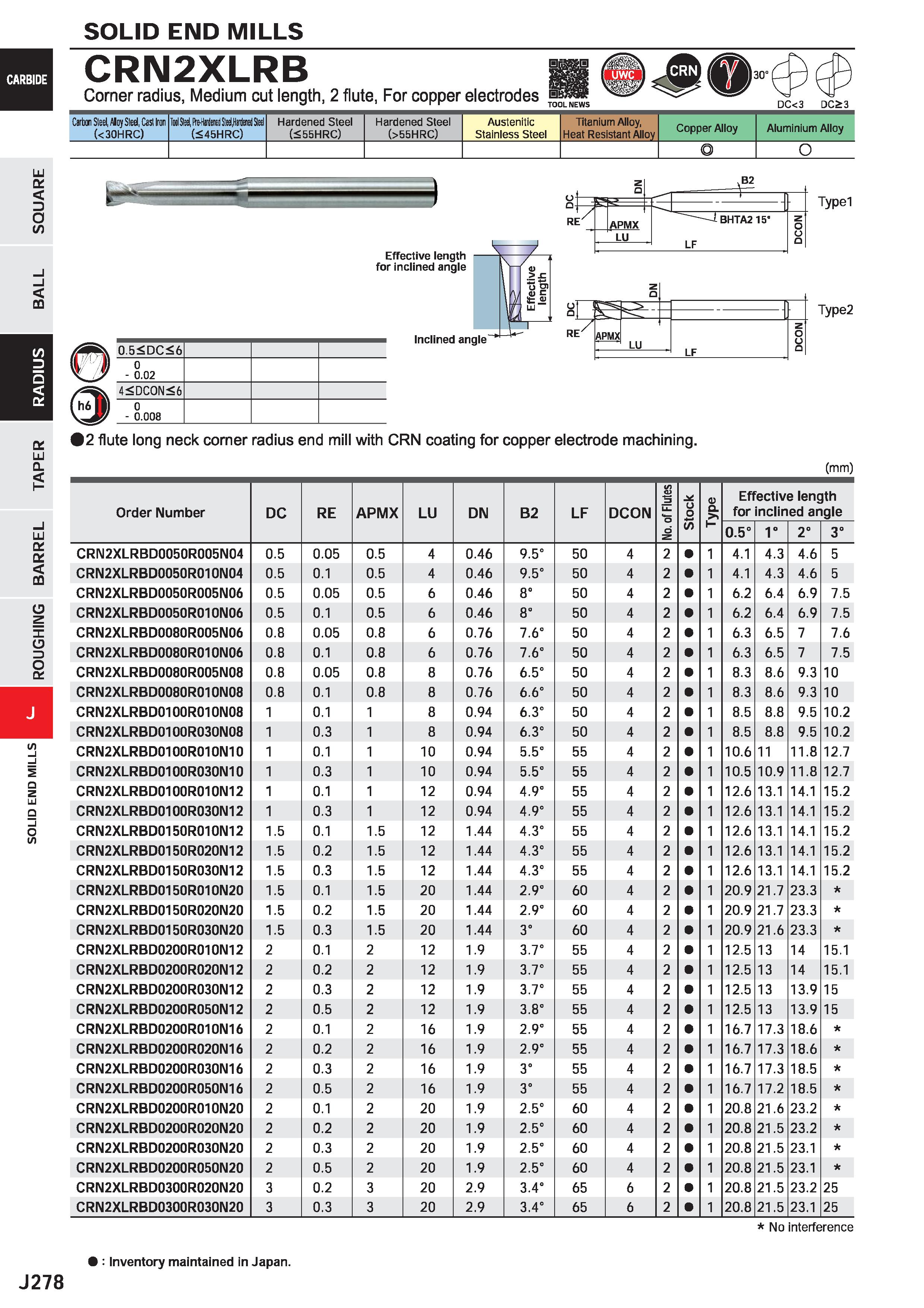

SOLID END MILLS CRN2XLRB Corner radius, Medium cut length, 2 flute, For copper electrodes TOOL NEWS DC<3 DC£3 Carbon Steel, Aloy Sted, Cast Iror (< 30HRC) Iwl M, HH H,H M U (<45HRC) Hardened Steel (<55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy o LU D o /> dq a LU o. LU O' 0£ DQ CD z I CD 3 o a. b - RE KS 0.5 DC 6 0 - 0.02 4 APMX DCON LU LF Type2 i2 flute long neck corner radius end mill with CRN coating for copper electrode machining. (mm) Order Number DC RE APMX LU DIM B2 LF DCON No. of Flutes Stock 0) a. h- Effective length for inclined angle 0.5° 1° 2° 3° CRN2XLRBD0050R005N04 0.5 0.05 0.5 4 0.46 9.5° 50 4 2 1 4.1 4.3 4.6 5 CRN2XLRBD0050R010N04 0.5 0.1 0.5 4 0.46 9.5° 50 4 2 1 4.1 4.3 4.6 5 CRN2XLRBD0050R005N06 0.5 0.05 0.5 6 0.46 8° 50 4 2 1 6.2 6.4 6.9 7.5 CRN2XLRBD0050R010N06 0.5 0.1 0.5 6 0.46 8° 50 4 2 1 6.2 6.4 6.9 7.5 CRN2XLRBD0080R005N06 0.8 0.05 0.8 6 0.76 7.6° 50 4 2 1 6.3 6.5 7 7.6 CRN2XLRBD0080R010N06 0.8 0.1 0.8 6 0.76 7.6° 50 4 2 1 6.3 6.5 7 7.5 CRN2XLRBD0080R005N08 0.8 0.05 0.8 8 0.76 6.5° 50 4 2 1 8.3 8.6 9.3 10 CRN2XLRBD0080R010N08 0.8 0.1 0.8 8 0.76 6.6° 50 4 2 1 8.3 8.6 9.3 10 CRN2XLRBD0100R010N08 1 0.1 1 8 0.94 6.3° 50 4 2 1 8.5 8.8 9.5 10.2 CRN2XLRBD0100R030N08 1 0.3 1 8 0.94 6.3° 50 4 2 1 8.5 8.8 9.5 10.2 CRN2XLRBD0100R010N10 1 0.1 1 10 0.94 5.5° 55 4 2 1 10.6 11 11.8 12.7 CRN2XLRBD0100R030N10 1 0.3 1 10 0.94 5.5° 55 4 2 1 10.5 10.9 11.8 12.7 CRN2XLRBD0100R010N12 1 0.1 1 12 0.94 4.9° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0100R030N12 1 0.3 1 12 0.94 4.9° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0150R010N12 1.5 0.1 1.5 12 1.44 4.3° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0150R020N12 1.5 0.2 1.5 12 1.44 4.3° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0150R030N12 1.5 0.3 1.5 12 1.44 4.3° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0150R010N20 1.5 0.1 1.5 20 1.44 2.9° 60 4 2 1 20.9 21.7 23.3 CRN2XLRBD0150R020N20 1.5 0.2 1.5 20 1.44 2.9° 60 4 2 1 20.9 21.7 23.3 CRN2XLRBD0150R030N20 1.5 0.3 1.5 20 1.44 3° 60 4 2 1 20.9 21.6 23.3 CRN2XLRBD0200R010N12 2 0.1 2 12 1.9 3.7° 55 4 2 1 12.5 13 14 15.1 CRN2XLRBD0200R020N12 2 0.2 2 12 1.9 3.7° 55 4 2 1 12.5 13 14 15.1 CRN2XLRBD0200R030N12 2 0.3 2 12 1.9 3.7° 55 4 2 1 12.5 13 13.9 15 CRN2XLRBD0200R050N12 2 0.5 2 12 1.9 3.8° 55 4 2 1 12.5 13 13.9 15 CRN2XLRBD0200R010N16 2 0.1 2 16 1.9 2.9° 55 4 2 1 16.7 17.3 18.6 CRN2XLRBD0200R020N16 2 0.2 2 16 1.9 2.9° 55 4 2 1 16.7 17.3 18.6 CRN2XLRBD0200R030N16 2 0.3 2 16 1.9 3° 55 4 2 1 16.7 17.3 18.5 CRN2XLRBD0200R050N16 2 0.5 2 16 1.9 3° 55 4 2 1 16.7 17.2 18.5 CRN2XLRBD0200R010N20 2 0.1 2 20 1.9 2.5° 60 4 2 1 20.8 21.6 23.2 CRN2XLRBD0200R020N20 2 0.2 2 20 1.9 2.5° 60 4 2 1 20.8 21.5 23.2 CRN2XLRBD0200R030N20 2 0.3 2 20 1.9 2.5° 60 4 2 1 20.8 21.5 23.1 CRN2XLRBD0200R050N20 2 0.5 2 20 1.9 2.5° 60 4 2 1 20.8 21.5 23.1 CRN2XLRBD0300R020N20 3 0.2 3 20 2.9 3.4° 65 6 2 1 20.8 21.5 23.2 25 CRN2XLRBD0300R030N20 3 0.3 3 20 2.9 3.4° 65 6 2 1 20.8 21.5 23.1 25 Ld in No interference : Inventory maintained in Japan. J278
