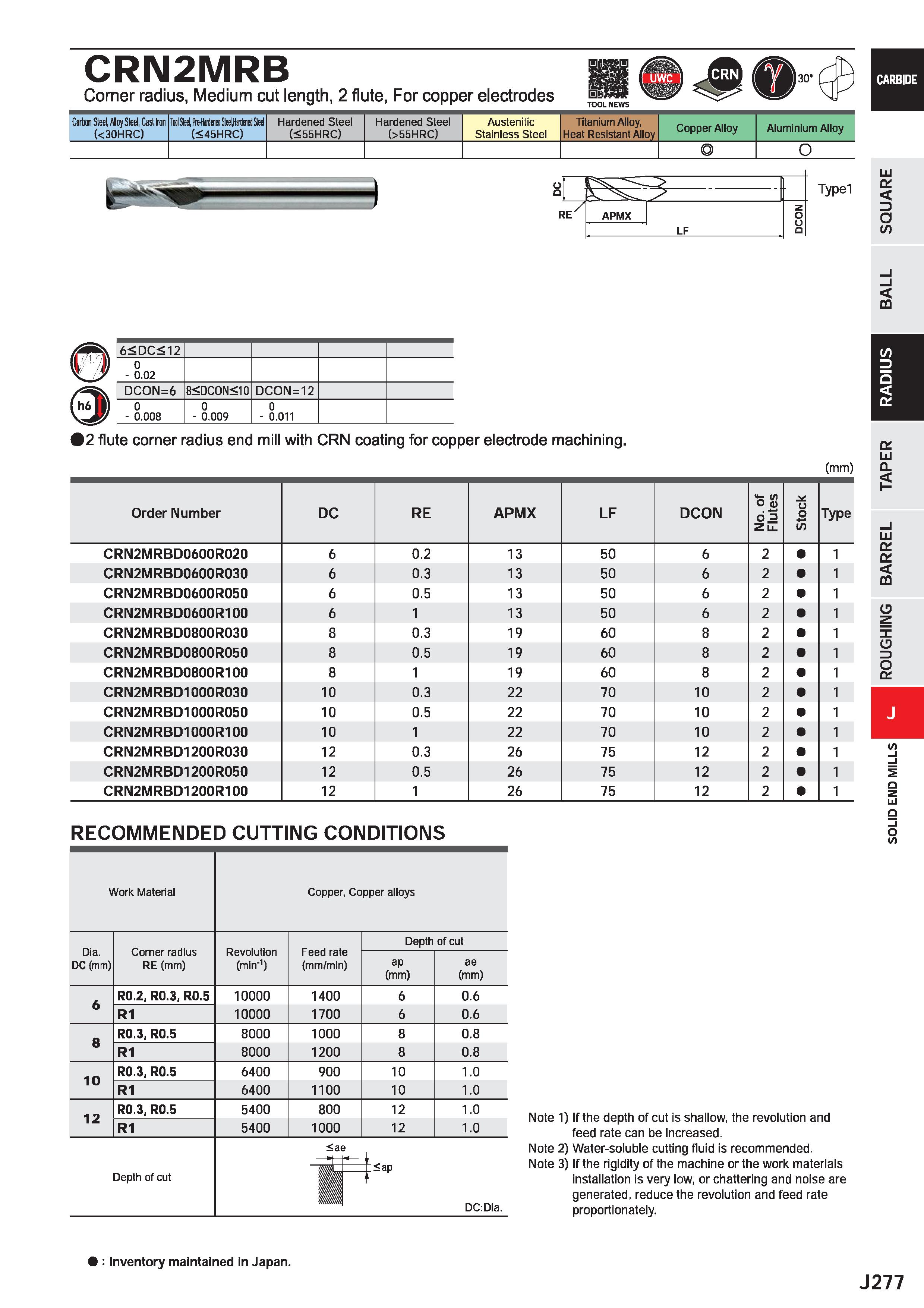

CRN2MRB Corner radius, Medium cut length, 2 flute, For copper electrodes Carbon Steel, Aloy Sted, Cast Iror (< 30HRC) Iwl M, HH H,H M U (<45HRC) Hardened Steel (<55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy Typel LU CC D o CO m i2 flute corner radius end mill with CRN coating for copper electrode machining. (mm) Order Number DC RE APMX LF DCON O d> . 02 ZlL u o /) Type CRN2MRBD0600R020 6 0.2 13 50 6 2 1 CRN2MRBD0600R030 6 0.3 13 50 6 2 1 CRN2MRBD0600R050 6 0.5 13 50 6 2 1 CRN2MRBD0600R100 6 1 13 50 6 2 1 CRN2MRBD0800R030 8 0.3 19 60 8 2 1 CRN2MRBD0800R050 8 0.5 19 60 8 2 1 CRN2MRBD0800R100 8 1 19 60 8 2 1 CRN2MRBD1000R030 10 0.3 22 70 10 2 1 CRN2MRBD1000R050 10 0.5 22 70 10 2 1 CRN2MRBD1000R100 10 1 22 70 10 2 1 CRN2MRBD1200R030 12 0.3 26 75 12 2 1 CRN2MRBD1200R050 12 0.5 26 75 12 2 1 CRN2MRBD1200R100 12 1 26 75 12 2 1 CC LlI CL LU cc cc m cd CD 3 o DC RECOMMENDED CUTTING CONDITIONS ae Work Material Copper, Copper alloys Dia. DC (mm) Comer radius RE (mm) Revolution (min'1) Feed rate (mm/min) Depth of cut ap (mm) ae (mm) 6 R0.2, R0.3, R0.5 10000 1400 6 0.6 R1 10000 1700 6 0.6 8 R0.3, R0.5 8000 1000 8 0.8 R1 8000 1200 8 0.8 10 R0.3, R0.5 6400 900 10 1.0 R1 6400 1100 10 1.0 12 R0.3, R0.5 5400 800 12 1.0 R1 5400 1000 12 1.0 Depth of cut TI "
