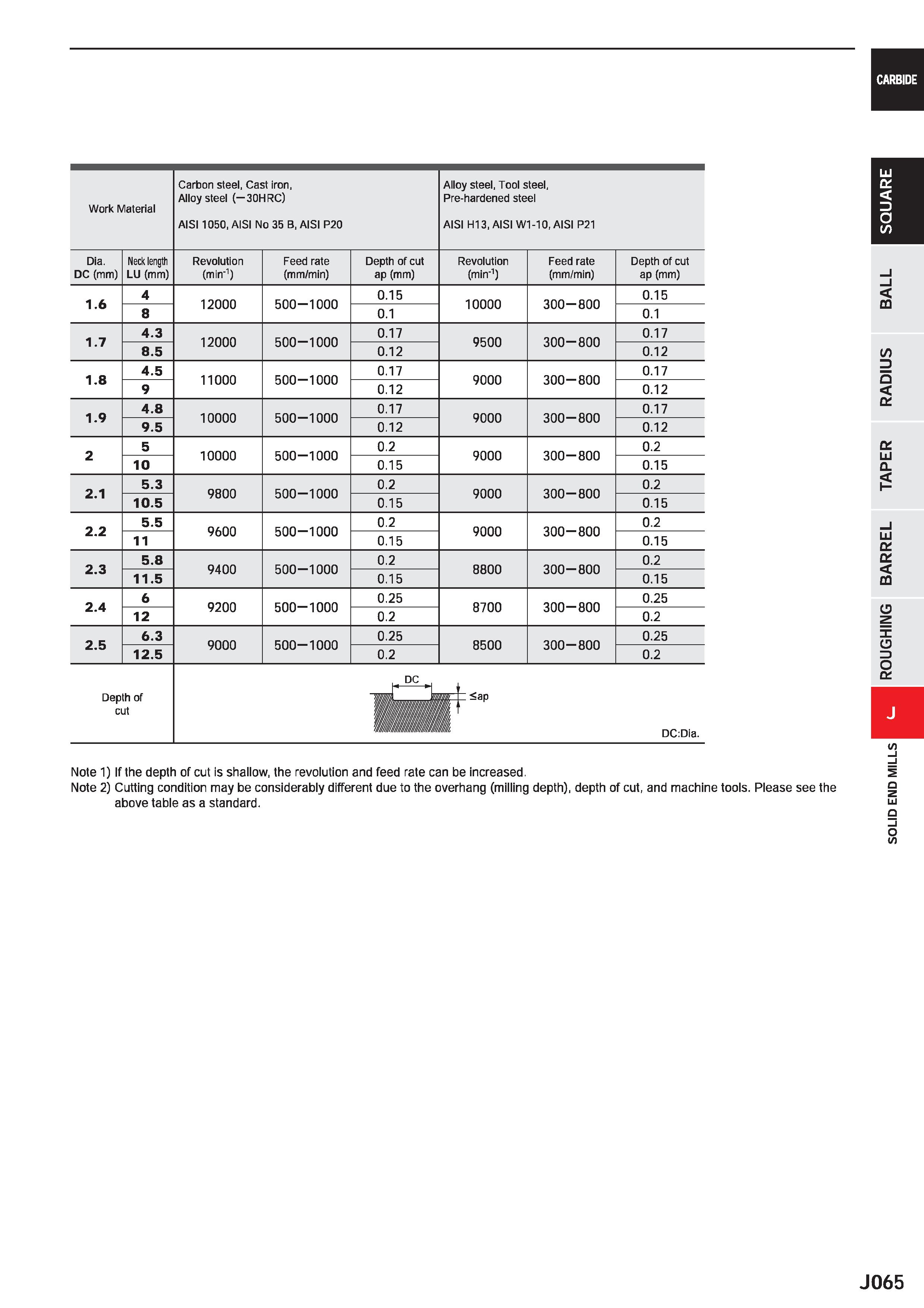

CARBIDE Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1-10, AISI P21 Dia. DC (mm) Neck length LU (mm) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Revolution (min'1) Feed rate (mm/min) Depth of cut ap (mm) 1.6 4 12000 500-1000 0.15 10000 300-800 0.15 8 0.1 0.1 1.7 4.3 12000 500-1000 0.17 9500 300-800 0.17 8.5 0.12 0.12 1.8 4.5 11000 500-1000 0.17 9000 300-800 0.17 9 0.12 0.12 1.9 4.8 10000 500-1000 0.17 9000 300-800 0.17 9.5 0.12 0.12 2 5 10000 500-1000 0.2 9000 300-800 0.2 10 0.15 0.15 2.1 5.3 9800 500-1000 0.2 9000 300-800 0.2 10.5 0.15 0.15 2.2 5.5 9600 500-1000 0.2 9000 300-800 0.2 11 0.15 0.15 2.3 5.8 9400 500-1000 0.2 8800 300-800 0.2 11.5 0.15 0.15 2.4 6 9200 500-1000 0.25 8700 300-800 0.25 12 0.2 0.2 2.5 6.3 9000 500-1000 0.25 8500 300-800 0.25 12.5 0.2 0.2 Depth of cut DC DC:Dia. Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 2) Cutting condition may be considerably different due to the overhang (milling depth), depth of cut, and machine tools. Please see the above table as a standard. LU D o CO a Ld Q J065 ROUGHING BARREL TAPER RADIUS BALL
