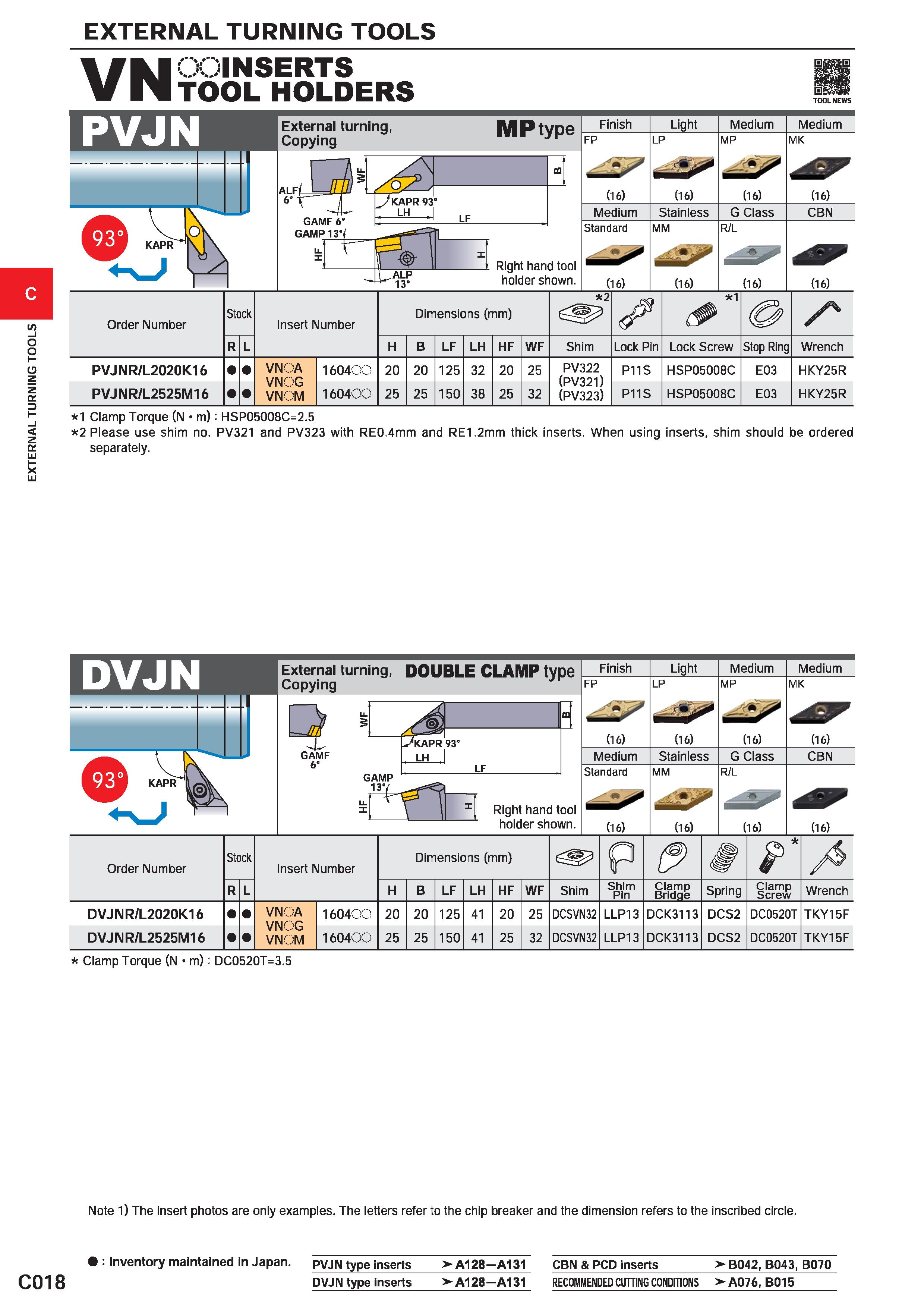

EXTERNAL TURNING TOOLS EXTERNAL TURNING TOOLS c C018 : V VN PVJN INSERTS TOOL HOLDERS 0S TOOL NEWS External turning, Copying MPtype GAMF6 GAMP 13° Li. I r Lalp 13’ Right hand tool holder shown. Finish Light Medium Medium FP LP MP MK (16) (16) (16) (16) Medium Stainless G Class CBN Standard MM R/L . (16) (16) (16) (16) Order Number Stock Insert Number Dimensions (mm) 2 1 0 R L H B LF LH HF WF Shim Lock Pin Lock Screw Stop Ring Wrench PVJNR/L2020K16 VNOA VN . G VNOM 160400 20 20 125 32 20 25 PV322 (PV321) (PV323) P11S HSP05008C E03 HKY25R PVJNR/L2525M16 160400 25 25 150 38 25 32 P11S HSP05008C E03 HKY25R 1 Clamp Torque (N m): HSP05008C=2.5 2 Please use shim no. PV321 and PV323 with RE0.4mm and RE1.2mm thick inserts. When using inserts, shim should be ordered separately. External turning, DOUBLE CLAMP type Copying GAMP 13 KAPR 93" LH J LF Right hand tool holder shown. Finish Light Medium Medium FP LP MP MK (16) (16) (16) (16) Medium Stainless G Class CBN Standard MM R/L (16) (16) (16) (16) Order Number Stock Insert Number Dimensions (mm) P & R L H B LF LH HF WF Shim Shim Pin Clamp Bridqe Spring Clamp Screw Wrench DVJNR/L2020K16 VNOA VNOG VNOM 160400 20 20 125 41 20 25 DCSVN32 LLP13 DCK3113 DCS2 DC0520T TKY15F DVJNR/L2525M16 160400 25 25 150 41 25 32 DCSVN32 LLP13 DCK3113 DCS2 DC0520T TKY15F Clamp Torque (N m): DC0520T=3.5 Note 1) The insert photos are only examples. The letters refer to the chip breaker and the dimension refers to the inscribed circle. PVJN type inserts >-A128- -A131 CBN & PCD inserts >B042, B043, B070 DVJN type inserts >-A128- -A131 RECOMMENDED CUTTING CONDITIONS > A076, B015
