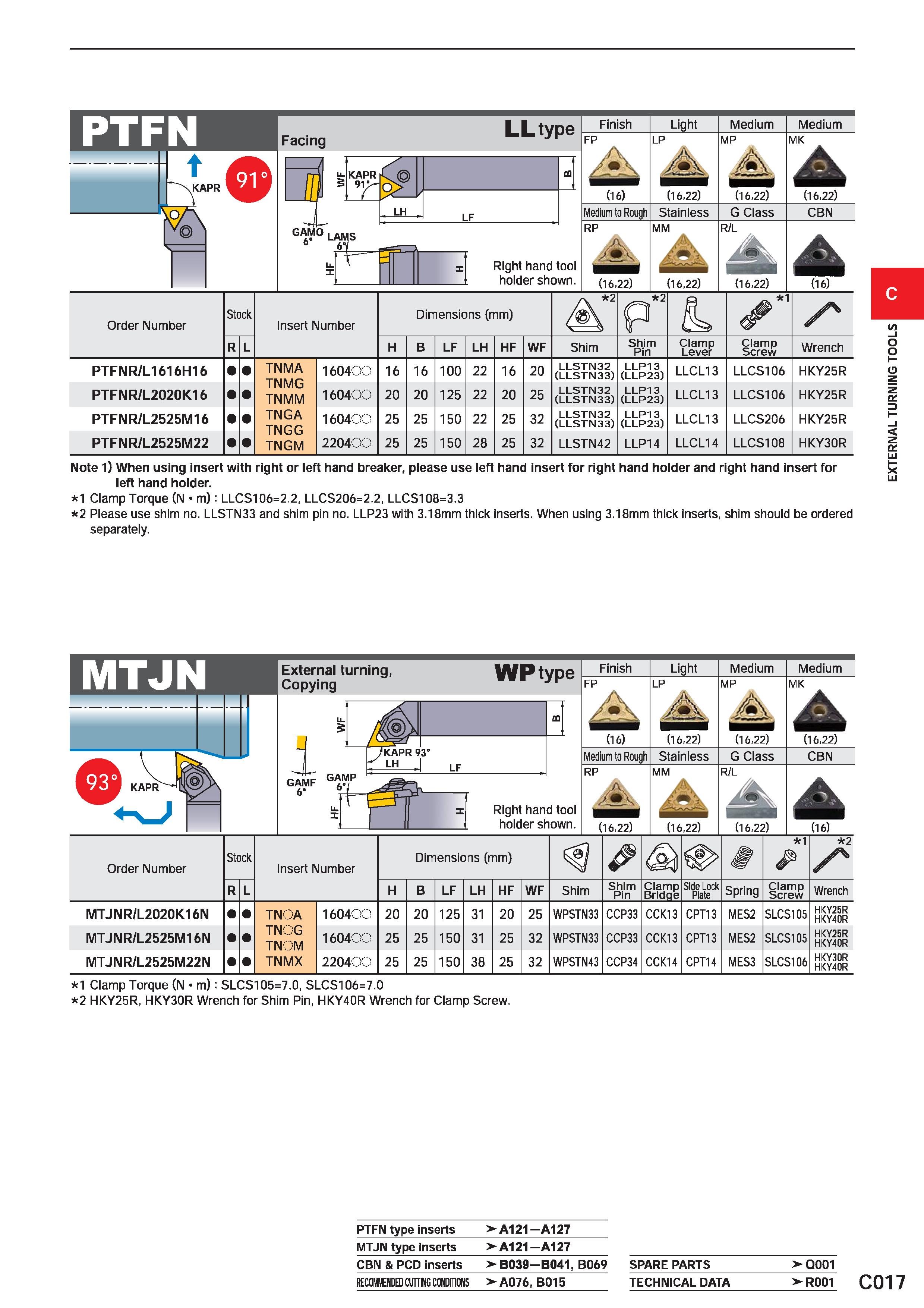

KAPR Facing LLtype KAPR T LF LH Right hand tool holder shown. Finish FP A (16) Medium lo Rough RP (16,22) Light Stainless MM (16,22) Medium G Class (16,22) Medium MK (16,22) CBN & (16) Order Number Stock Insert Number Dimensions (mm) A" 2 P 1 1 R L H B LF LH HF WF Shim Shim Pin Clamp Lever Clamp Screw Wrench PTFNR/L1616H16 TNMA TNMG TNMM 160400 16 16 100 22 16 20 LLSTN32 (LLSTN33) LLPl 3 (LLP23) LLCL13 LLCS106 HKY25R PTFNR/L2020K16 160400 20 20 125 22 20 25 LLSTN32 (LLSTN33) LLPl 3 (LLP23) LLCL13 LLCS106 HKY25R PTFNR/L2525M16 TNGA TNGG TNGM 160400 25 25 150 22 25 32 LLSTN32 (LLSTN33) LLPl 3 (LLP23) LLCL13 LLCS206 HKY25R PTFNR/L2525M22 220400 25 25 150 28 25 32 LLSTN42 LLPl 4 LLCL14 LLCS108 HKY30R Note 1) When using insert with right or left hand breaker, please use left hand insert for right hand holder and right hand insert for left hand holder. 1 Clamp Torque (N m): LLCS106=2.2, LLCS206=2.2, LLCS108=3.3 2 Please use shim no. LLSTN33 and shim pin no. LLP23 with 3.18mm thick inserts. When using 3.18mm thick inserts, shim should be ordered separately. External turning, Copying WPtype 1 GAMF 6" )KAPR9 LH 3’ LF Right hand tool holder shown. Finish Light Medium Medium FP /A LP A MP MK (16) (16,22) (16,22) (16,22) Medium to Rough Stainless G Class CBN RP Jk MM R/L (16,22) (16,22) (16,22) (16) Order Number Stock Insert Number Dimensions (mm) & 1 2 R L H B LF LH HF WF Shim Shim Pin Clamp Brldqe Side Lock Plate Spring Clamp Screw Wrench MTJNR/L2020K16N TN A 160400 20 20 125 31 20 25 WPSTN33 CCP33 CCK13 CPT13 MES2 SLCS105 HKY25R HKY4DR MTJNR/L2525M16N TNOG TNOM 160400 25 25 150 31 25 32 WPSTN33 CCP33 CCK13 CPT13 MES2 SLCS105 HKY25R HKY40R MTJNR/L2525M22N TNMX 220400 25 25 150 38 25 32 WPSTN43 CCP34 CCK14 CPT14 MES3 SLCS106 HKY3DR HKY4DR 1 Clamp Torque (N m): SLCS105=7.0, SLCS106=7.0 2 HKY25R, HKY30R Wrench for Shim Pin, HKY40R Wrench for Clamp Screw. PTFN type inserts >A121 A127 MTJN type Inserts >A121 A127 CBN & PCD inserts > B039 B041, B069 SPARE PARTS >-Q001 RECOMMENDED CUTTING CONDITIONS >A076, B015 TECHNICAL DATA > R001 c C017 EXTERNAL TURNING TOOLS
