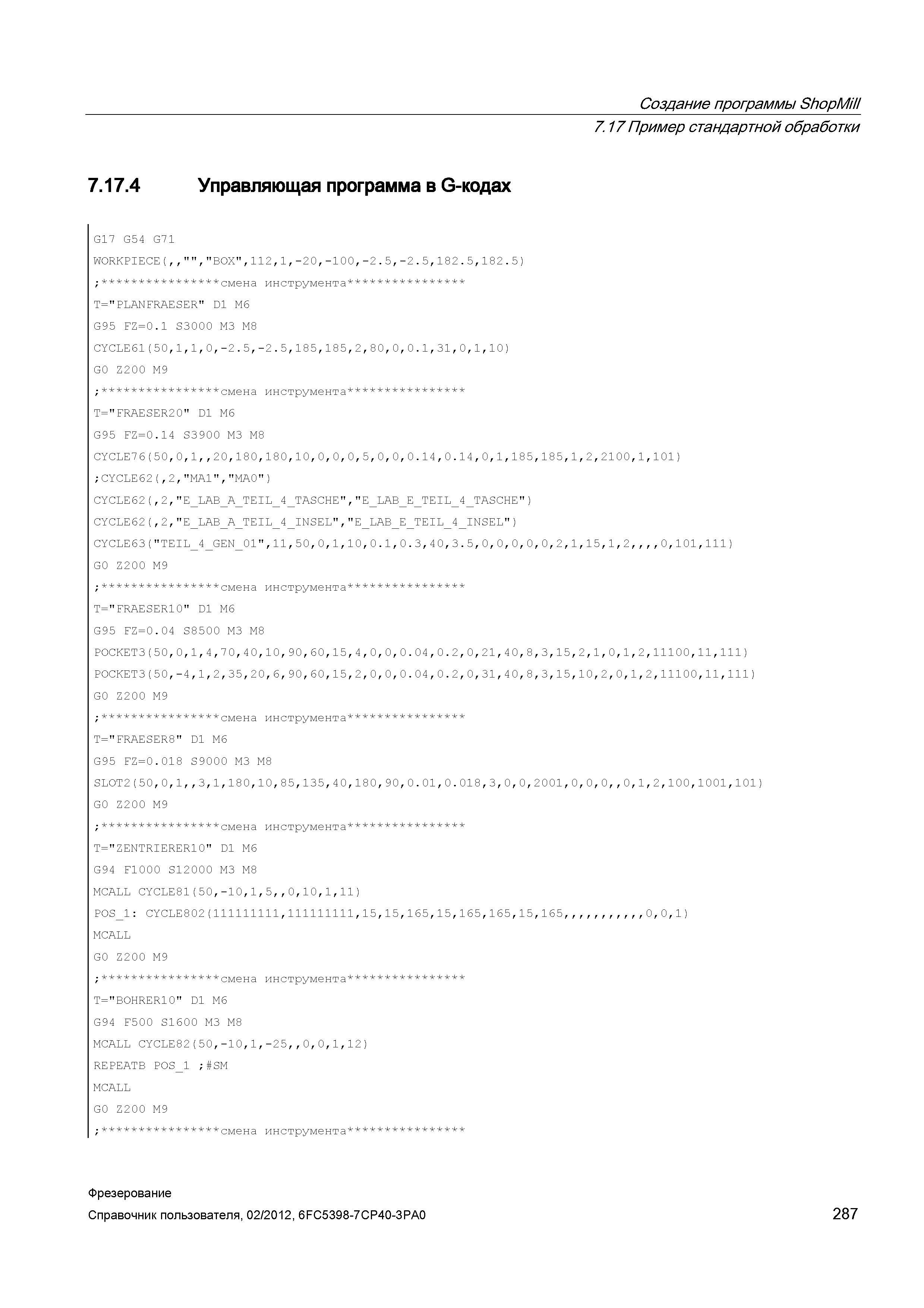

Создание программы ShopMill Пример стандартной обработки _ 7.17.4 Управляющая программа в G-кодах G17 G5 4 G71 WORKPIECE( ,BOX ,112,1,-20,-100,-2.5,-2.5,182.5,182.5) ; смена инструмента T="PLANFRAESER" D1 M6 G95 FZ=0.1 S3000 M3 M8 CYCLE61(50,1,1,0,-2.5,-2.5,185,185,2,80,0,0.1,31,0,1,10) G0 Z200 M9 . смена инструмента T="FRAESER2 0M D1 M6 G95 FZ=0.14 S3900 M3 M8 CYCLE76(50,0,1 20,180,180,10,0,0,0,5,0,0,0.14,0.14,0,1,185,185,1,2,2100,1,101) ;CYCLE62(,2 ,MA1 ,MA0M) CYCLE62(,2,ME_LAB_A_TEIL_4_TASCHEM,ME_LAB_E_TEIL_4_TASCHEM) CYCLE62(,2 ,e_LAB_A_TEIL_4_INSEL ,e_laB_E_TEIL_4_INSELM) CYCLE63(MTEIL_4_GEN_01M,11,5 0,0,1,10,0.1,0.3,4 0,3.5,0,0,0,0,0,2,1,15,1,2 0,101,111) G0 Z200 M9 ; смена инструмента T="FRAESER10M D1 M6 G95 FZ=0.04 S8500 M3 M8 P0CKET3(50,0,1,4,7 0,4 0,10,90,60,15,4,0,0,0.04,0.2,0,21,4 0,8,3,15,2,1,0,1,2,11100,11,111) P0CKET3(50,-4,1,2,35,20,6,90,60,15,2,0,0,0.04,0.2,0,31,40,8,3,15,10,2,0,1,2,11100,11,111) G0 Z200 M9 ; смена инструмента T=MFRAESER8M D1 M6 G95 FZ=0.018 S9000 M3 M8 SL0T2(50,0,1 3,1,180,10,85,135,40,180,90,0.01,0.018,3,0,0,2001,0,0,0 0,1,2,100,1001,101) G0 Z200 M9 ; смена инструмента T=MZENTRIERER10M D1 M6 G94 F10 0 0 S12000 M3 M8 MCALL CYCLE81(50,-10,1,5 0,10,1,11) P0S_1: CYCLE8 02(111111111,111111111,15,15,165,15,165,165,15,165 ,0,0,1) MCALL G0 Z200 M9 ; смена инструмента T=MB0HRER10M D1 M6 G94 F500 S1600 M3 M8 MCALL CYCLE82(50,-10,1,-25 0,0,1,12) REPEATB P0S_1 ; SM MCALL G0 Z200 M9 ; смена инструмента Фрезерование Справочник пользователя, 02/2012, 6FC5398-7CP40-3PA0 287
