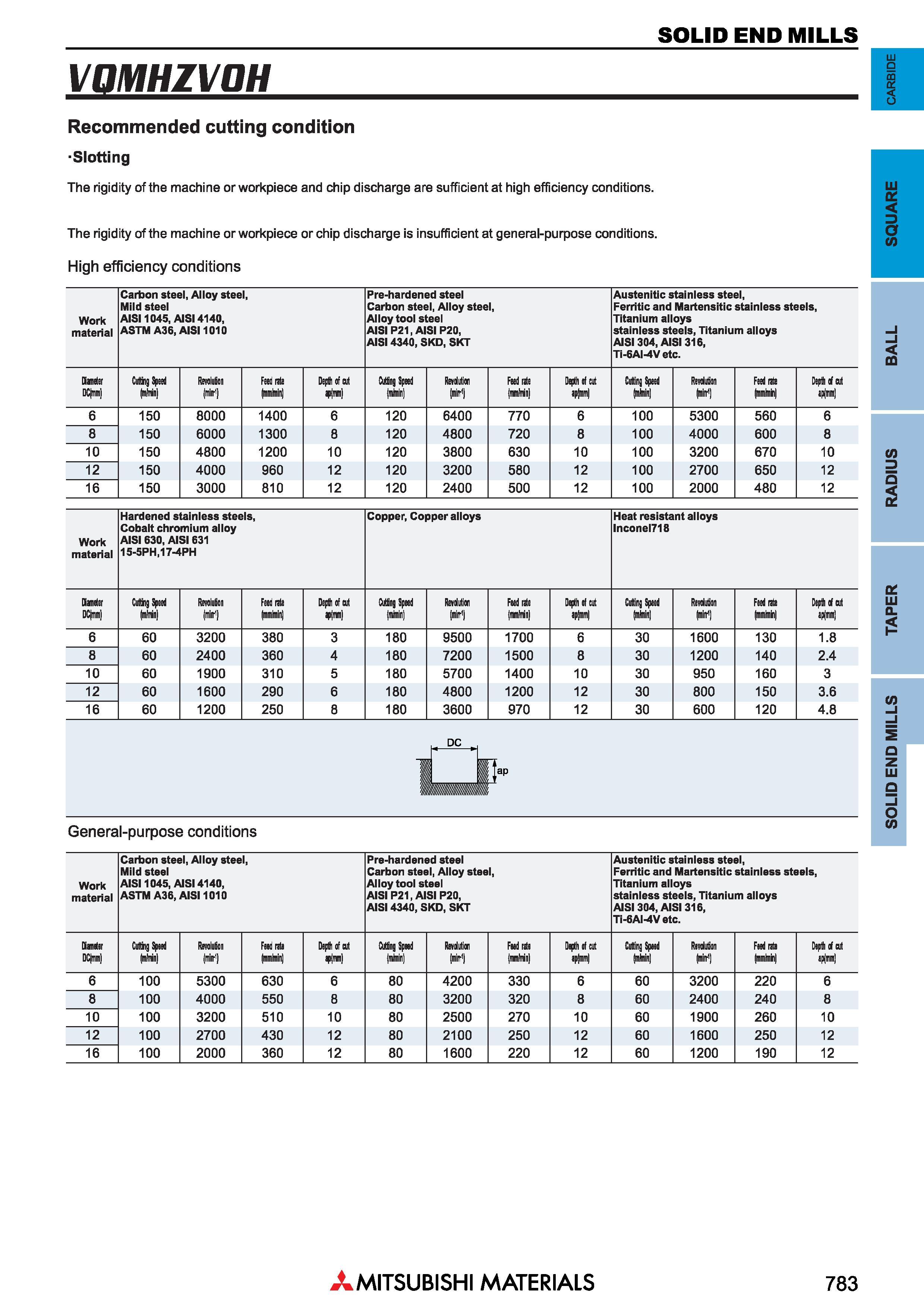

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ vgrnzvoH Recommended cutting condition Slotting The rigidity of the machine or workpiece and chip discharge are sufficient at high efficiency conditions. The rigidity of the machine or workpiece or chip discharge is insufficient at general-purpose conditions. High efficiency conditions Work material Carbon steel, Alloy steel, Mild steel AIS11045, AISI 4140, ASTM A36, AIS11010 Pre-hardened steel Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic stainless steels, Titanium alloys stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V etc. Qaneter Cutting Speed Revolution Feed nte Depth of cut Cling Speed Revdution Feed nte Depth of nit Cutting Speed Revdution Feed nte Dejrtti of cut DC nm) (m/min (milt4 (mmlmin) fW (m/min) mir'l mnMn ip(mm )nHn) (miir1 (mmlmh ap m) 6 150 8000 1400 6 120 6400 770 6 100 5300 560 6 8 150 6000 1300 8 120 4800 720 8 100 4000 600 8 10 150 4800 1200 10 120 3800 630 10 100 3200 670 10 12 150 4000 960 12 120 3200 580 12 100 2700 650 12 16 150 3000 810 12 120 2400 500 12 100 2000 480 12 Work material Hardened stainless steels, Cobalt chromium alloy AISI 630, AISI 631 15-5PH.17-4PH Copper, Copper alloys Heat resistant alloys lnconel718 Handel Cutting Speed Revolution Feed nte Depth of cut Cling Speed Revdution Feed nte Depth of cut Cutting Speed Revdution Feed nte Depliofait DCjmrn (mMn (miit1 (mmlmin) jp mm (m/min) (miir1 mnMn ip(nni tnlnin) (niif) (mmtnri) ip(mm) 6 60 3200 380 3 180 9500 1700 6 30 1600 130 1.8 8 60 2400 360 4 180 7200 1500 8 30 1200 140 2.4 10 60 1900 310 5 180 5700 1400 10 30 950 160 3 12 60 1600 290 6 180 4800 1200 12 30 800 150 3.6 16 60 1200 250 8 180 3600 970 12 30 600 120 4.8 General-purpose conditions Work material Carbon steel, Alloy steel, Mild steel AIS11045, AISI 4140, ASTM A36, AIS11010 Pre-hardened steel Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic stainless steels, Titanium alloys stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V etc. Diunaler Cuttuig Spued Revoiuiion Feednta Depth of cut Cutting Sptod Revdution Feed nte Depth of cut Cutting Spaed Ravdution Feednta Daplhofcut DC mm (mMn (miir1) (mmlmin flim (m/min (niir1) (mnMn ap(mm) (nHn) (miir1 (mn/mn) ip m) 6 100 5300 630 6 80 4200 330 6 60 3200 220 6 8 100 4000 550 8 80 3200 320 8 60 2400 240 8 10 100 3200 510 10 80 2500 270 10 60 1900 260 10 12 100 2700 430 12 80 2100 250 12 60 1600 250 12 16 100 2000 360 12 80 1600 220 12 60 1200 190 12 Mitsubishi Materials 783 Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide
