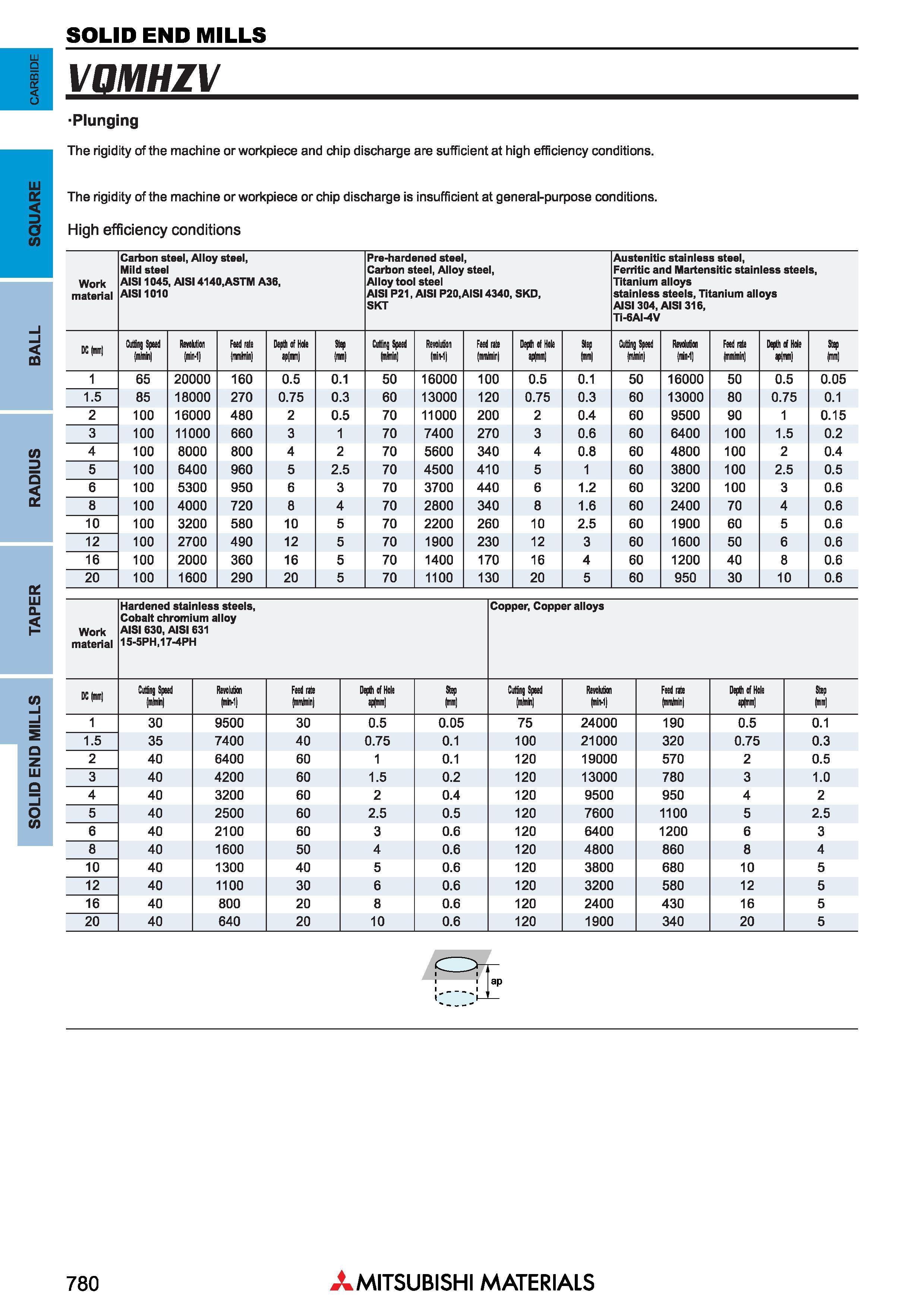

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ ygMHZV Plunging The rigidity of the machine or workpiece and chip discharge are sufficient at high efficiency conditions. The rigidity of the machine or workpiece or chip discharge is insufficient at general-purpose conditions. High efficiency conditions Work material Carbon steel, Alloy steel, Mild steel AIS11045, AISI 4140,ASTM A36, AISI1010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20.AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic stainless steels, Titanium alloys stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V DCH Cling Spud (mMi) Revolution miii-1 Feed rate imMn Depth of Hole ip nm Step M Cutting Speed mWn Revolution (iM Feed nte (mm/niir ttyti of Hole atfmm) Step Cutting Speed Imiminl Revdim nin-1 Feed nte (mmlminj Depth of Hole aplmni) Step (mn 1 65 20000 160 0.5 0.1 50 16000 100 0.5 0.1 50 16000 50 0.5 0.05 1.5 85 18000 270 0.75 0.3 60 13000 120 0.75 0.3 60 13000 80 0.75 0.1 2 100 16000 480 2 0.5 70 11000 200 2 0.4 60 9500 90 1 0.15 3 100 11000 660 3 1 70 7400 270 3 0.6 60 6400 100 1.5 0.2 4 100 8000 800 4 2 70 5600 340 4 0.8 60 4800 100 2 0.4 5 100 6400 960 5 2.5 70 4500 410 5 1 60 3800 100 2.5 0.5 6 100 5300 950 6 3 70 3700 440 6 1.2 60 3200 100 3 0.6 8 100 4000 720 8 4 70 2800 340 8 1.6 60 2400 70 4 0.6 10 100 3200 580 10 5 70 2200 260 10 2.5 60 1900 60 5 0.6 12 100 2700 490 12 5 70 1900 230 12 3 60 1600 50 6 0.6 16 100 2000 360 16 5 70 1400 170 16 4 60 1200 40 8 0.6 20 100 1600 290 20 5 70 1100 130 20 5 60 950 30 10 0.6 Work material Hardened stainless steels, Cobalt chromium alloy AISI 630, AISI 631 15-5PH.17-4PH Copper, Copper alloys Cuing Speed Revolution Feed nte Depth of Hole Step Cuting Speed Revolution Feed nte Depth of Hole Step mknh (nmlmlnj ipQnm (mm) mknh nin-t) (rnm/min) ipQnm (mm 1 30 9500 30 0.5 0.05 75 24000 190 0.5 0.1 1.5 35 7400 40 0.75 0.1 100 21000 320 0.75 0.3 2 40 6400 60 1 0.1 120 19000 570 2 0.5 3 40 4200 60 1.5 0.2 120 13000 780 3 1.0 4 40 3200 60 2 0.4 120 9500 950 4 2 5 40 2500 60 2.5 0.5 120 7600 1100 5 2.5 6 40 2100 60 3 0.6 120 6400 1200 6 3 8 40 1600 50 4 0.6 120 4800 860 8 4 10 40 1300 40 5 0.6 120 3800 680 10 5 12 40 1100 30 6 0.6 120 3200 580 12 5 16 40 800 20 8 0.6 120 2400 430 16 5 20 40 640 20 10 0.6 120 1900 340 20 5 780 Mitsubishi Materials
