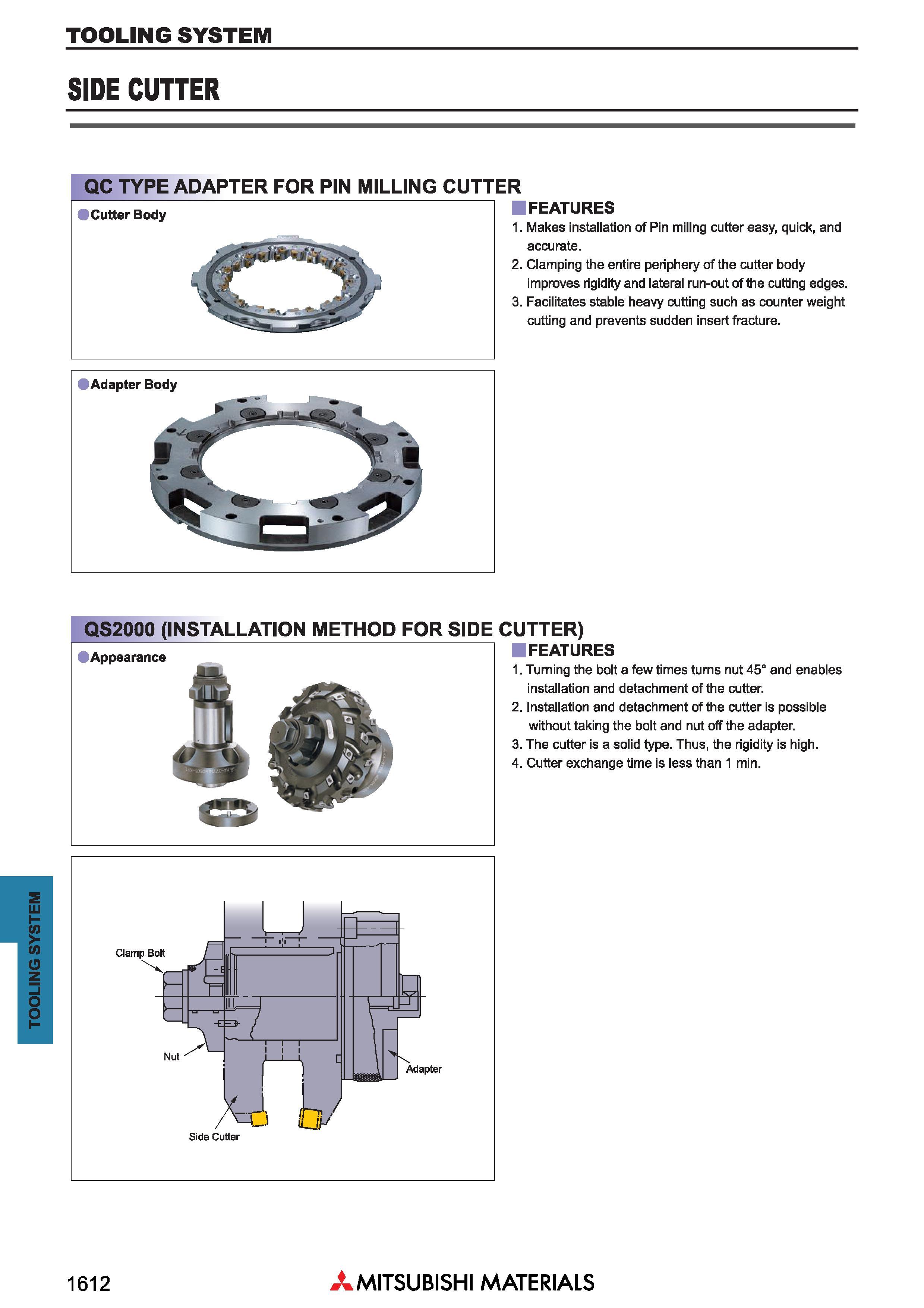

TOOLING SYSTEM TOOLING SYSTEM SIDE CUTTER IC TYPE ADAPTER FOR PIN MILLING CUTTER FEATURES 1. Makes installation of Pin millng cutter easy, quick, and accurate. 2. Clamping the entire periphery of the cutter body improves rigidity and lateral run-out of the cutting edges. 3. Facilitates stable heavy cutting such as counter weight cutting and prevents sudden insert fracture. Adapter Body QS2000 (INSTALLATION METHOD FOR SIDE CUTTER) I FEATURES 1. Turning the bolt a few times turns nut 45° and enables installation and detachment of the cutter. 2. Installation and detachment of the cutter is possible without taking the bolt and nut off the adapter. 3. The cutter is a solid type. Thus, the rigidity is high. 4. Cutter exchange time is less than 1 min. 1612 Mitsubishi Materials
